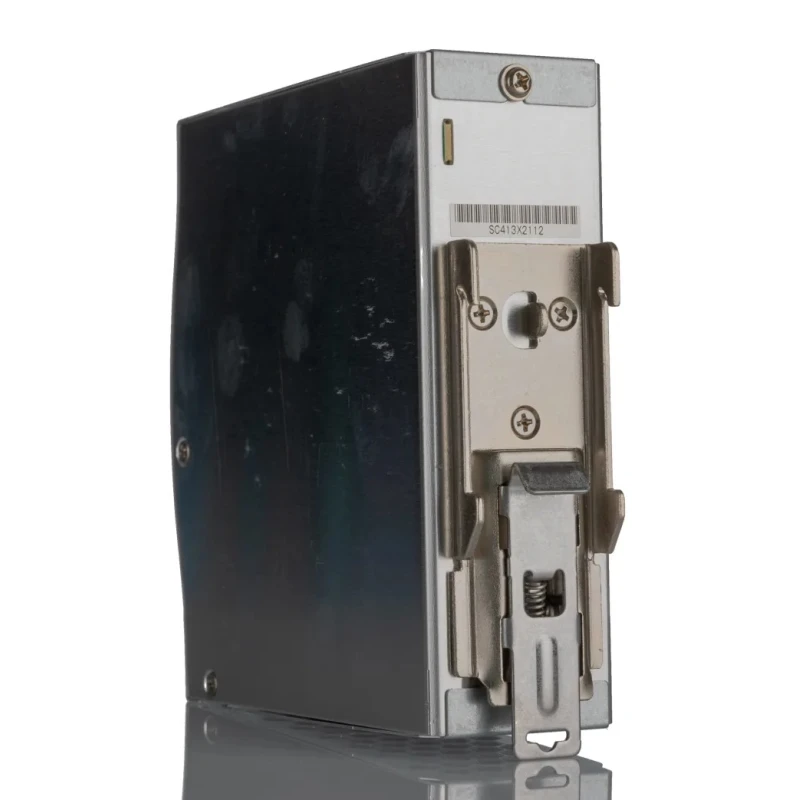

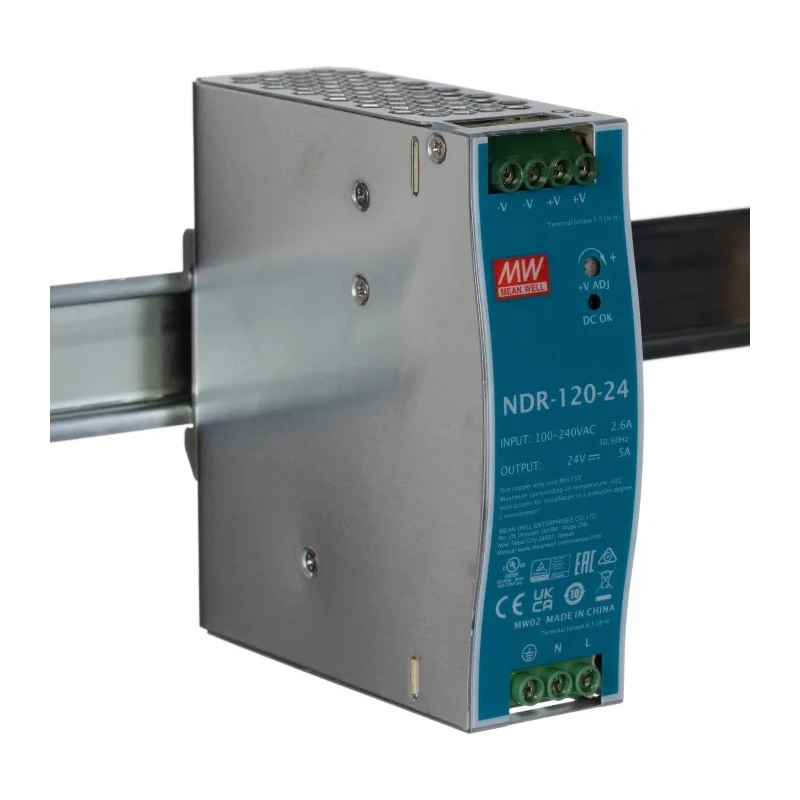

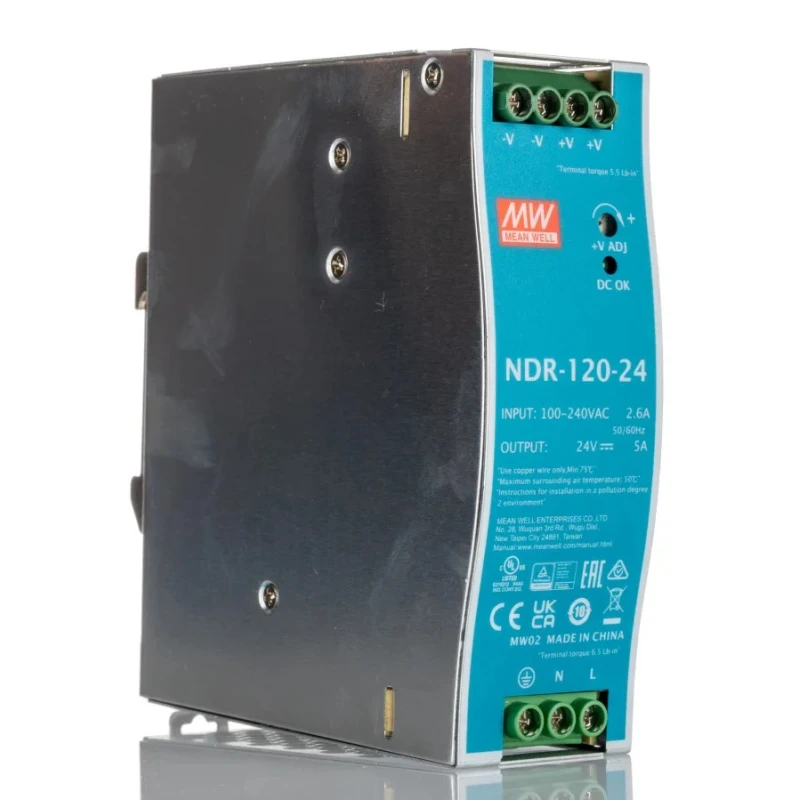

RS PRO NDR Series Switched Mode DIN Rail Power Supply 28V DC, 5A, 120W Industrial NDR-120-24
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 120W |
| Height | 125mm |
| Model | NDR-120-24 |
| Depth | 114mm |
| Width | 40mm |
| Series | NDR |
| Output Current | 5A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, UL, TUV EN 609501 |
| Maximum Output Voltage | 28V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Universally compatible AC input voltage range from 90V to 264V ensuring broad applicability.
- Supports single output with maximum output voltage of 28V DC and output current up to 5A.
- Industrial grade design with metal housing enabling effective heat dissipation.
- Equipped with multiple protections including short circuit, overload, over voltage, and over temperature for reliable operation.
- Compact dimensions of 125mm height, 40mm width, and 114mm depth suitable for space-saving DIN rail mounting.
- Operational temperature range from -20°C to 70°C, suitable for harsh industrial environments.
- Certified with RoHS, UL, and TUV EN 60950-1 standards for safety and environmental compliance.
- Ideal for industrial control systems, factory automation, semiconductor equipment, and similar applications.
Product Description
Mean Well NDR-120-24 Switched Mode DIN Rail Power Supply is engineered for robust industrial applications requiring reliable 28V DC output at 5A and a maximum power of 120W. This power supply supports a wide AC input voltage range from 90V to 264V AC phase 1 input, making it compatible with diverse power environments.
The metal housing design offers superior power dissipation and durability while enabling compact installation on TS-35/7.5 or TS-35/15 DIN rails. The unit measures 125mm in height, 40mm in width, and 114mm in depth, ensuring efficient space usage in control cabinets.
Featuring comprehensive protections against short circuit, overload, over voltage, and over temperature faults, the NDR-120-24 ensures high reliability and safety in operation. An active PFC function further enhances efficiency, which reaches up to 88% in typical use.
Operating effectively within a temperature range of -20°C to 70°C and with a convection cooling mechanism that does not require fans, this power supply is user-friendly and low maintenance. Industrial certifications including RoHS, UL 508, and TUV EN 60950-1 affirm compliance with safety and environmental standards.
This power supply is ideal for use in industrial control systems, semiconductor fabrication equipment, factory automation, and electro-mechanical apparatus where stable DC power is essential.
Universal AC input and full range support. Short circuit, overload, over voltage, and over temperature protection for safe operation. Fits onto standard DIN rail mountings (TS-35/7.5 or TS-35/15). Cooling via free air convection eliminating the need for fans.
UL 508 approval for industrial control equipment. 100% full load burn-in test assures product reliability. Supports remote DC-OK signal for operational status monitoring.
The Mean Well NDR-120-24 is a dependable power solution designed to meet rigorous industrial demands. It supports streamlined installation and efficient power delivery, making it a preferred choice for industrial electronics and automation projects.
Explore other power supplies in the DIN Rail Power Supplies category at EnvMart for comprehensive options suited to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 28V DC.
It supports an output current of up to 5A.
This power supply has an input voltage range from 90V to 264V AC.
The dimensions are 125mm in height, 40mm in width, and 114mm in depth.
It is designed for mounting on TS-35/7.5 or TS-35/15 DIN rails.
The operational temperature range is from -20°C to 70°C.
It features protections against short circuit, overload, over voltage, and over temperature.
It is certified with RoHS, UL 508, and TUV EN 60950-1 standards.
The power rating of this unit is 120W.
It requires a single-phase input.
Yes, it supports a remote DC-OK signal for operational status monitoring.
It utilizes free air convection for cooling, eliminating the need for fans.
