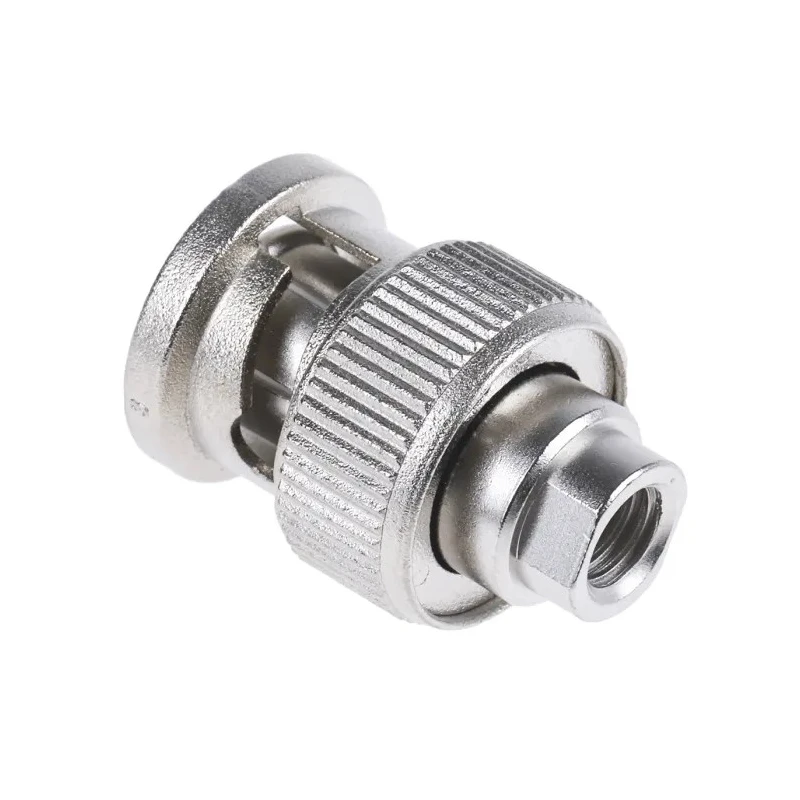

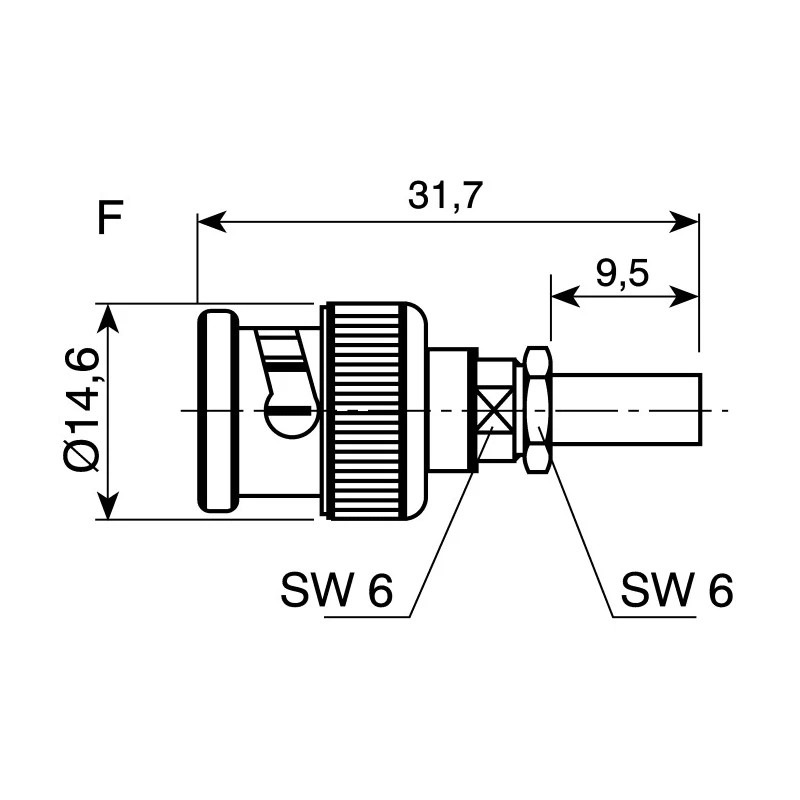

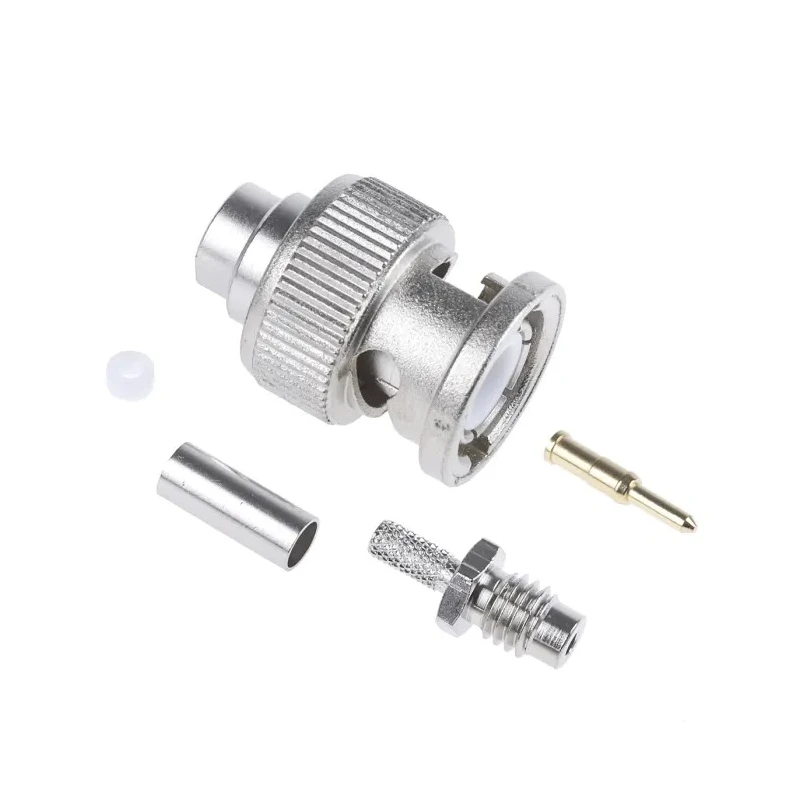

Telegartner BNC Series Coaxial Connector Cable Male BNC 50 Ω Straight Body Crimp J01000A1294
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Straight |
| Model | J01000A1294 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| Telegartner, Plug Cable Mount, 50Ω, Crimp Termination, Straight BodyBrand | Telegartner |
| Sofim, Plug Cable Mount, 50Ω, Crimp Termination, Straight BodyBrand | Sofim |
Key Features
- The connector features a simple quarter turn bayonet coupling for quick connect and disconnect.
- It supports operating frequencies up to 4 GHz for high-performance signal transmission.
- Operating temperature ranges from -65°C to 165°C ensuring wide environmental compatibility.

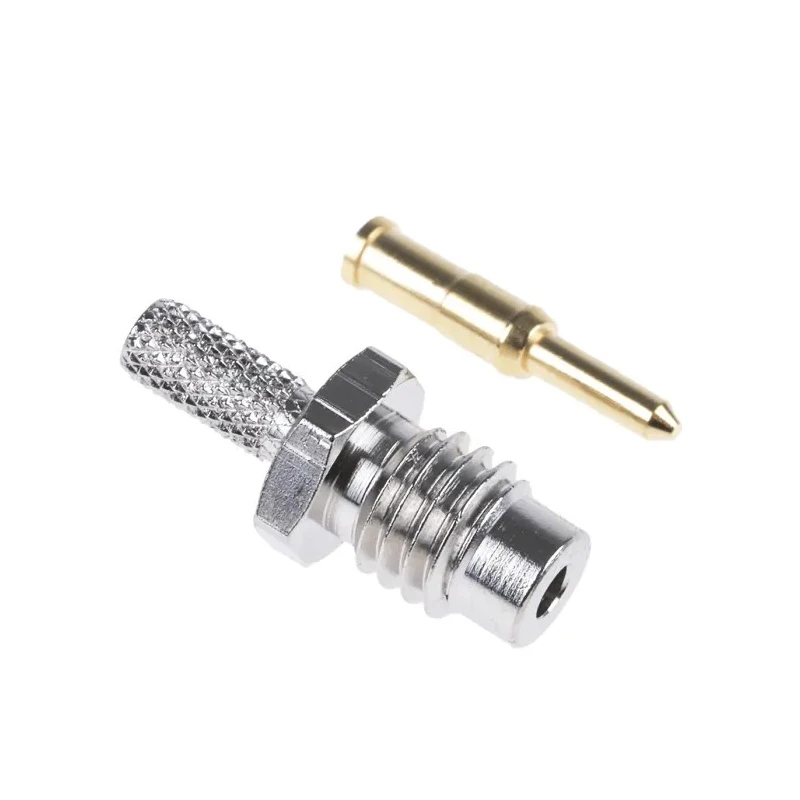

- The connector body is nickel-plated with a gold-plated beryllium copper center contact for reliable conductivity.
- Designed for use with RG316/U coaxial cables of standard size for versatile applications.
- Termination type is crimp for professional and secure cable attachments.
- Suitable for RF and electronic applications requiring robust and precise connections.
- Manufactured in Germany ensuring high quality and durability standards.
Product Description
Telegartner J01000A1294 is a BNC series coaxial connector designed as a male cable mount connector with 50 Ω impedance and straight orientation for precision RF applications.
This connector features a professional crimp termination and a simple bayonet coupling mechanism facilitating easy and secure connections and disconnections. It operates at frequencies up to 4 GHz and withstands a broad temperature range from -65°C to +165°C, making it suitable for demanding industrial, laboratory, HVAC, and communication equipment environments.
The connector is built with a nickel-plated body and gold-plated beryllium copper contact material to ensure low signal loss and corrosion resistance. Compatible with RG316/U standard coaxial cables, it guarantees consistent performance for RF signal transmission.
This product is manufactured in Germany, reflecting high production standards and durability. It is ideal for use in electronic component assemblies, industrial RF systems, testing equipment, and other commercial and manufacturing applications requiring high reliability and precision coaxial connections.
The connector utilizes a quarter turn bayonet coupling for ease of use. It supports a maximum frequency of 4 GHz for high signal fidelity. Wide operating temperature range from -65°C to 165°C. Nickel-plated connector body resists corrosion and wear.
Gold-plated beryllium copper contacts ensure excellent conductivity. Crimp termination offers strong, reliable cable connections. Suitable for RG316/U coaxial cables with standard sizing. Manufactured in Germany to high-quality standards.
Browse the Electronics Components and Coaxial Connector categories at EnvMart for quality connectors and electronic accessories tailored to your specific industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports operating frequencies up to 4 GHz, ensuring high-performance signal transmission.
It is designed for use with RG316/U coaxial cables, which are of standard size for versatile applications.
The connector operates within a temperature range of -65°C to +165°C, allowing for use in various environmental conditions.
The connector body is nickel-plated, and it features a gold-plated beryllium copper center contact for reliable conductivity.
It utilizes a crimp termination type for secure and professional cable attachments.
This model has a straight orientation, making it suitable for various installation scenarios.
It has an impedance rating of 50 Ω, which is standard for RF applications.
It features a quarter turn bayonet coupling for quick and secure connections and disconnections.
Both the contact and connector gender are male, designed for male-to-female connections.
It is manufactured in Germany, ensuring adherence to high quality and durability standards.
It is suitable for RF and electronic applications, including industrial RF systems and testing equipment.
The body is nickel-plated, which helps resist corrosion and wear, enhancing longevity.
