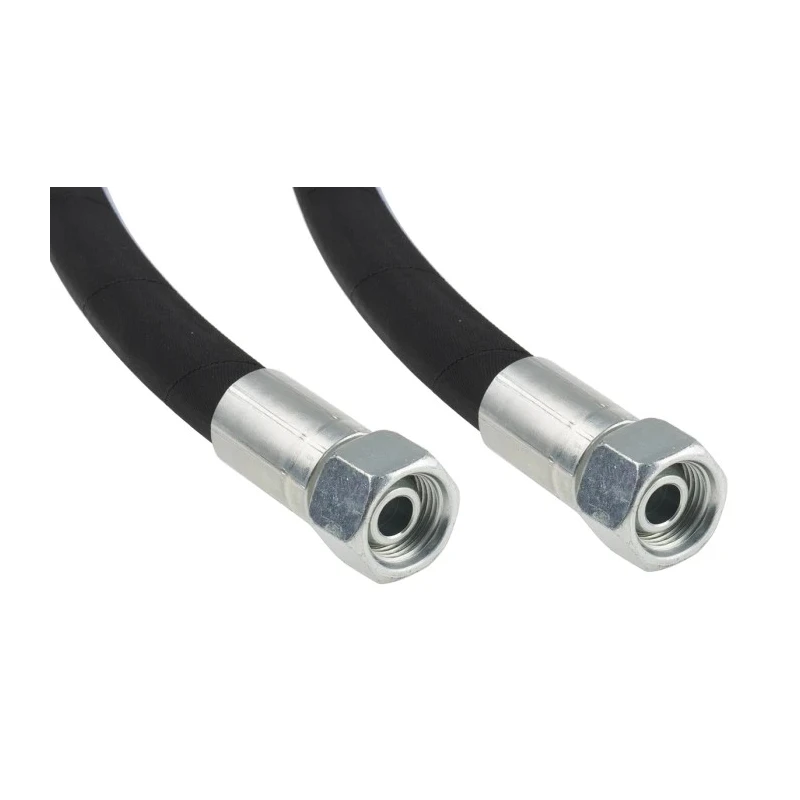

RS PRO Synthetic Rubber Hydraulic Hose Assembly 1.16 m Length 275 bar Max Pressure 110-2016

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Synthetic Rubber Hydraulic Hose Assembly 1.16 m Length 275 bar Max Pressure 110-2016

Name: RS PRO Synthetic Rubber Hydraulic Hose Assembly 1.16 m Length 275 bar Max Pressure 110-2016
Brand: RS PRO
SKU: 138757
Price: 62.39 USD
Availability: InStock



Category Hydraulic Hose Assembly Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Brand	RS PRO
Operating Temperature	-40 °C to +100°C
Maximum Operating Pressure	275 bar
Model	110-2016
Cover Material	Synthetic Rubber
Overall Length	1.16m
Connector	Female to Female
Maximum Operating Temperature	100°C
Inside Diameter	12.7mm
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Connection Size A	1/2 in
Connection Standard A	G
Connection Gender A	Female
Connection Type A	Threaded
Inner Hose Material	Synthetic Rubber
Reinforcing Material	Steel

Key Features

The hose has a synthetic rubber outer cover resistant to various industrial fluids.
It features high tensile steel wire reinforcement for durability under pressure.
Both ends have crimped female threaded connections with a 1/2 inch thread size.
The hose operates reliably within a temperature range of -40°C to 100°C.
Suitable for use with mineral oils, lubricating oils, water glycols, and hydraulic fluids.
Its inside diameter is 12.7 mm for efficient fluid flow.
The assembly is compliant with RoHS standards for safety.
Manufactured in Italy to high quality standards.

Product Description

RS PRO 110-2016 Synthetic Rubber Hydraulic Hose Assembly is a high-quality hydraulic hose measuring 1.16 meters in length and capable of withstanding a maximum operating pressure of 275 bar. This assembly features an inner hose made of synthetic rubber, providing excellent flexibility and fluid compatibility.

The hose is reinforced with high tensile steel wire to ensure strength and resistance to high-pressure conditions. The exterior is sheathed with synthetic rubber for added durability and protection against environmental factors.

The hose ends are crimped with female threaded connections sized at 1/2 inch, enabling secure and leak-proof attachment to other hydraulic components. The hose is designed for use in medium-pressure hydraulic systems, suitable for petroleum-based hydraulic fluids, mineral oils, lubricating oils, water glycol, water-oil emulsions, hot oil, grease, crude and fuel oils, air, and water.

It operates reliably within an extreme temperature range from -40°C to +100°C, ensuring performance in diverse industrial environments. The product complies with RoHS standards, ensuring it meets environmental and safety regulations.

Manufactured in Italy, this Hydraulic Hose Assembly is ideal for fluid power applications in industrial, manufacturing, agricultural, and construction settings. Please note it is not suited for use with high pressure hydraulic cylinders or pumps rated above 700 bar due to limitations in maximum working pressure.

The hose is flexible and resistant to wear due to synthetic rubber cover and steel reinforcement. Female-to-female threaded connections ensure compatibility with standard hydraulic fittings. Suitable for a wide range of hydraulic fluids and industrial applications.

Compliant with environmental standards for safe use. Constructed for durability and reliable performance in demanding systems. Explore our extensive range of hydraulic hose assemblies and related components on EnvMart for industrial applications.
