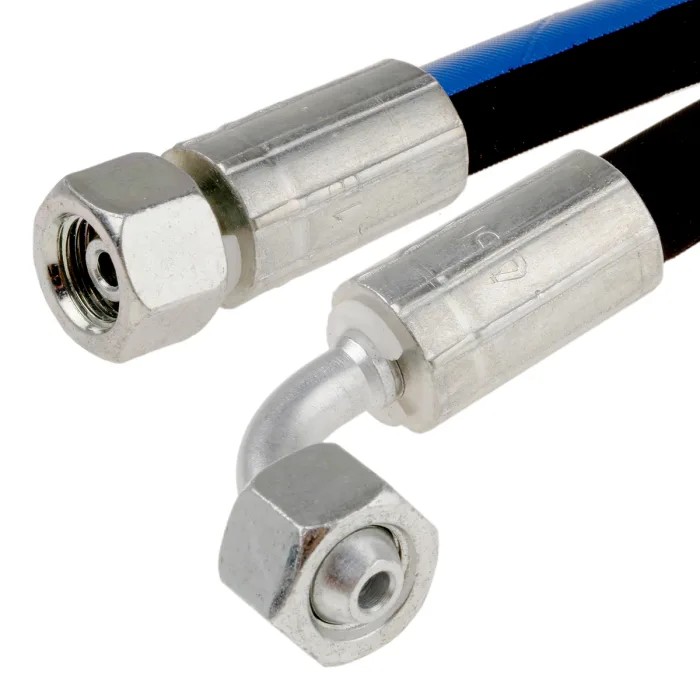

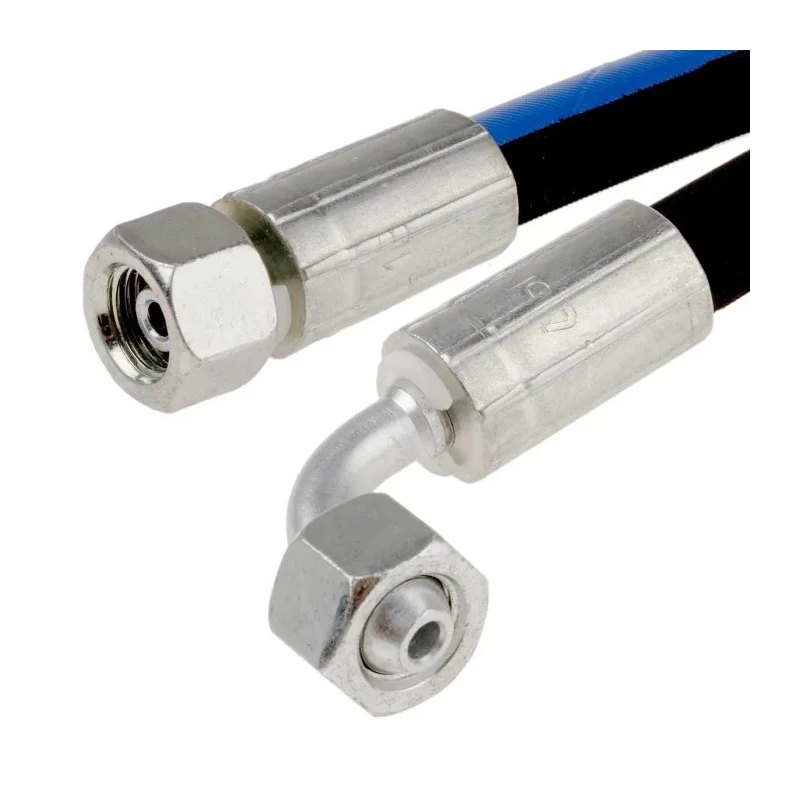

RS PRO Synthetic Rubber Hydraulic Hose Assembly 756mm, 275 bar Max Pressure, Steel Reinforced, Threaded Female 110-2230

The RS PRO 110-2230 hydraulic hose assembly is a durable and flexible solution engineered to meet medium-pressure hydraulic requirements in industrial settings. This assembly features a 756mm long synthetic rubber hose with a seamless inner tube and a robust synthetic rubber outer cover. Reinforced with high tensile steel wire, the hose provides excellent burst strength and reliable operation even at pressures up to 275 bar. The combination of materials ensures resistance to petroleum-based fluids, mineral oils, lubricants, water glycol, air, water, and certain chemical applications.

Both ends of the assembly include crimped, zinc-plated mild steel fittings, designed as 1/2 inch female G-thread, which provide secure and leak-resistant connections in hydraulic circuits. These threaded ends allow quick integration into industry-standard fittings, reducing installation time and enhancing maintenance safety. The one-piece end fitting design eliminates the risk of mismatched inserts and sleeves, supporting operational reliability.

The hose is engineered to operate effectively across a wide temperature range, from -40°C up to 100°C, making it suitable for both low and moderately high-temperature environments. Applications include medium pressure hydraulic circuits, lubrication systems, fuel oil and grease transfer, industrial water networks, and pneumatic applications. Its design is not recommended for ultra-high pressure hydraulic cylinders or pumps above 275 bar; users should consult specific high-pressure assemblies for such applications.

This flexible hose assembly complies with RoHS standards for environmental and material safety. Special features such as the pin prick cover design provide added safety for air or gas applications above 17 bar (250 psi), minimizing rupture risk. The hose structure, using synthetic rubber with steel wire reinforcement, ensures a long service life and robust performance in demanding conditions typical in manufacturing, maintenance, transport, construction equipment, and heavy machinery environments.

Integrated safety warnings advise users to always consider the maximum pressure rating and suitability of materials and construction for their application. When used appropriately, the RS PRO 110-2230 offers reliable service and robustness for industrial hydraulic and pneumatic systems.

An excellent fit in categories such as Hydraulic Hose Assembly and Pipes & Tube Fittings, RS PRO hydraulic hose assemblies are widely chosen in manufacturing, maintenance, machining, agricultural, and vehicle hydraulic applications. Explore more hydraulic hose solutions and accessories from RS PRO and related industrial fluid transfer categories at EnvMart.
