MEAN WELL IP65 Encapsulated 1 Output Potentiometer Dimmable LED Driver 48V 150W 900mA

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP65 Encapsulated 1 Output Potentiometer Dimmable LED Driver 48V 150W 900mA

Name: MEAN WELL IP65 Encapsulated 1 Output Potentiometer Dimmable LED Driver 48V 150W 900mA
Brand: MEAN WELL
SKU: 138355
Price: 70.85 USD
Availability: InStock



Category LED Driver Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP65
IP Rating	IP65
Mount Type	Screw
Series	ELG-150
Configuration	Encapsulated
Sub Type	LED Driver
Operating Modes	Constant Current/Constant Voltage
Number of outputs	1
Terminal type	Wire
Maximum Output Power	150W
Input Voltage	180, 305, 254, 431V ac
Output Voltage	48V
Power Dissipation	150.2W
Standards/Approvals	CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750
Dimming Operation	Potentiometer
Primary Type	DC-DC, AC-DC
Driver Current	900mA
Standards/ApprovalsCB, CE	CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750
CB, CE	CCC, cULus Recognized, EN61347-1, EN61347-2-13, EN62384, ENEC, PFC, UL8750

Key Features

Fan-less design ensures high efficiency and silent operation.
Built-in active PFC function enhances power quality.
Wide operating temperature range suitable for various environments.
IP65 rated for protection against dust and water ingress.
Supports both Constant Current and Constant Voltage operating modes.
Single output design with screw mounting for easy installation.
Encapsulated robust full metal housing for durability.
Ideal for LED street lighting, architectural, bay, and floodlighting applications.

Product Description

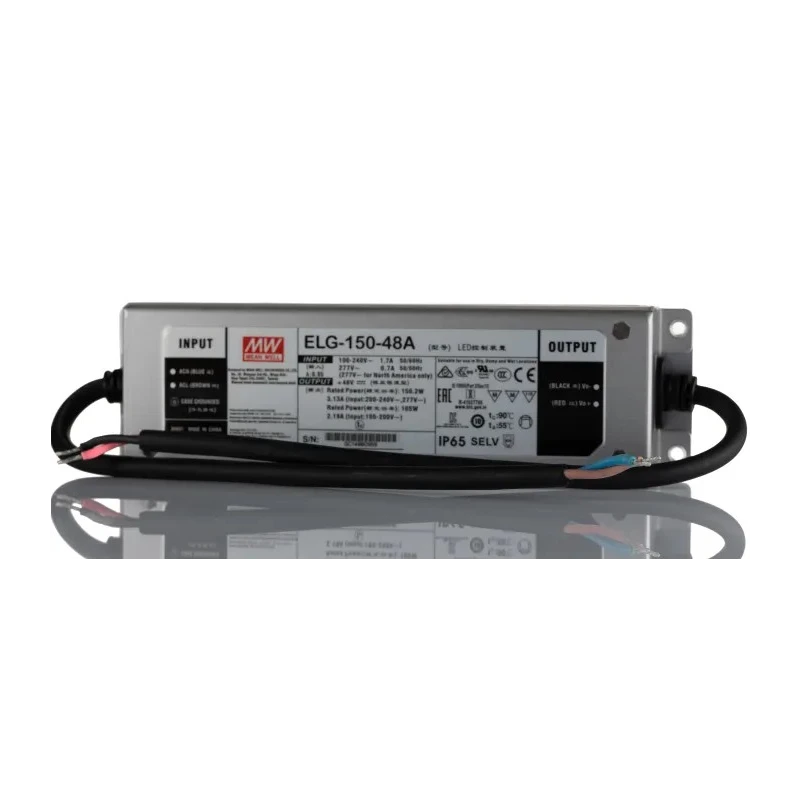

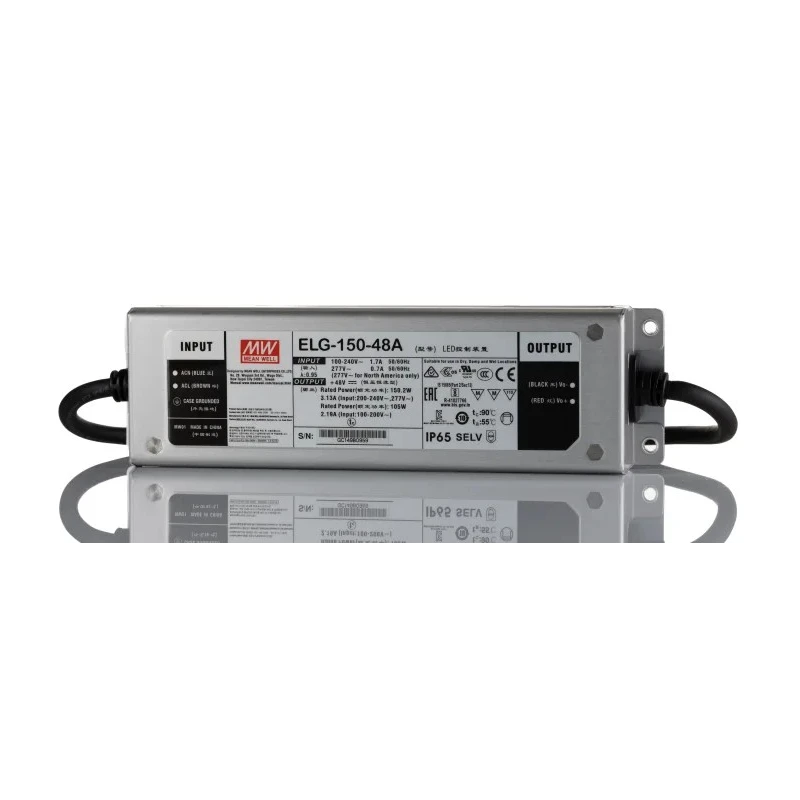

MEAN WELL ELG-150-48A is a high-quality encapsulated LED Driver designed for robust and reliable LED lighting solutions. It provides a single 48V output with a maximum power of 150W and a constant current rating of 900mA, making it suitable for demanding applications. The potentiometer dimming feature allows precise brightness adjustment.

The driver features a fan-less design that enhances its efficiency, achieving up to 91%. Its rugged full metal housing and IP65 rating ensure protection from dust and water, making it ideal for indoor and outdoor lighting installations.

It supports both constant current and constant voltage operating modes, providing flexibility for different LED configurations. The device includes a built-in active Power Factor Correction (PFC) circuit that improves power efficiency and reduces harmonic distortion.

Designed to meet stringent international standards such as CB, CE, CCC, cULus recognized, EN61347 series, EN62384, ENEC, and UL8750, this LED driver is a certified Class 2 power unit ensuring safety and reliability.

Typical applications encompass LED street lighting, architectural lighting, bay lighting, and floodlighting, where consistent output and durability are vital. Its screw mount type and wire terminal connections facilitate easy and secure installation.

Fan-less design ensures high efficiency and silent operation. Built-in active PFC function enhances power quality. Wide operating temperature range suitable for various environments. IP65 rated for protection against dust and water ingress.

Supports both Constant Current and Constant Voltage operating modes. Single output design with screw mounting for easy installation. Encapsulated robust full metal housing for durability. Ideal for LED street lighting, architectural, bay, and floodlighting applications.

Complies with multiple safety and performance standards including CB, CE, cULus, and EN61347 series. Potentiometer dimming operation offers flexible brightness control. Explore our wide range of industrial LED Drivers and power supplies at EnvMart for your electronic and lighting projects.
