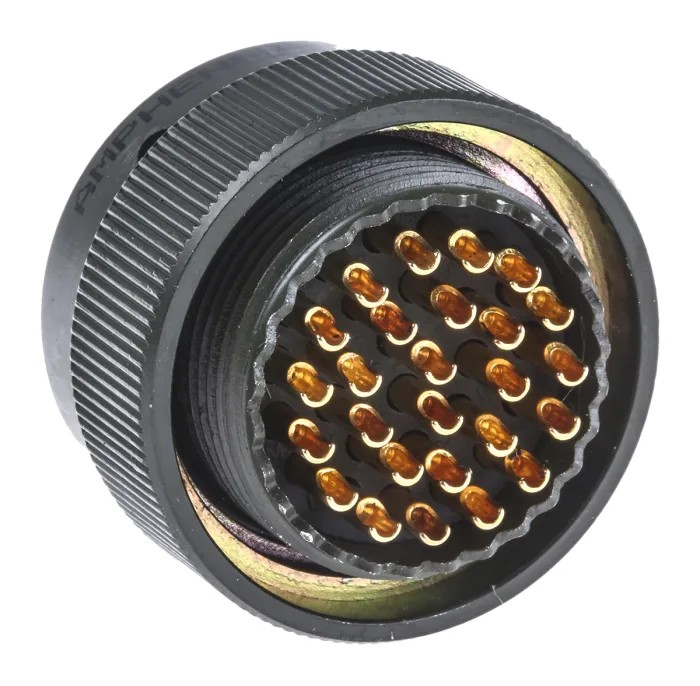

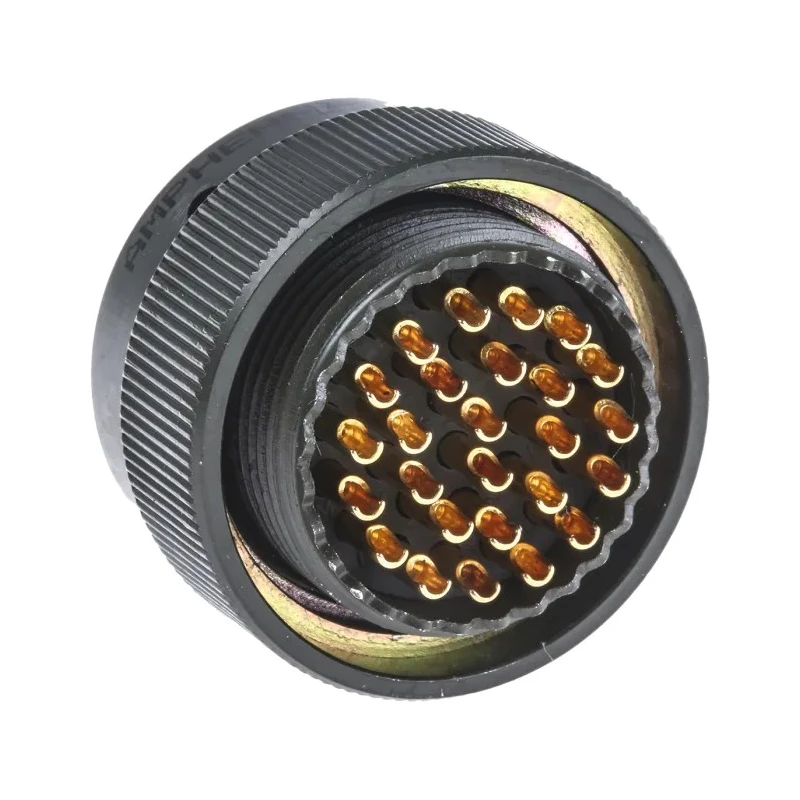

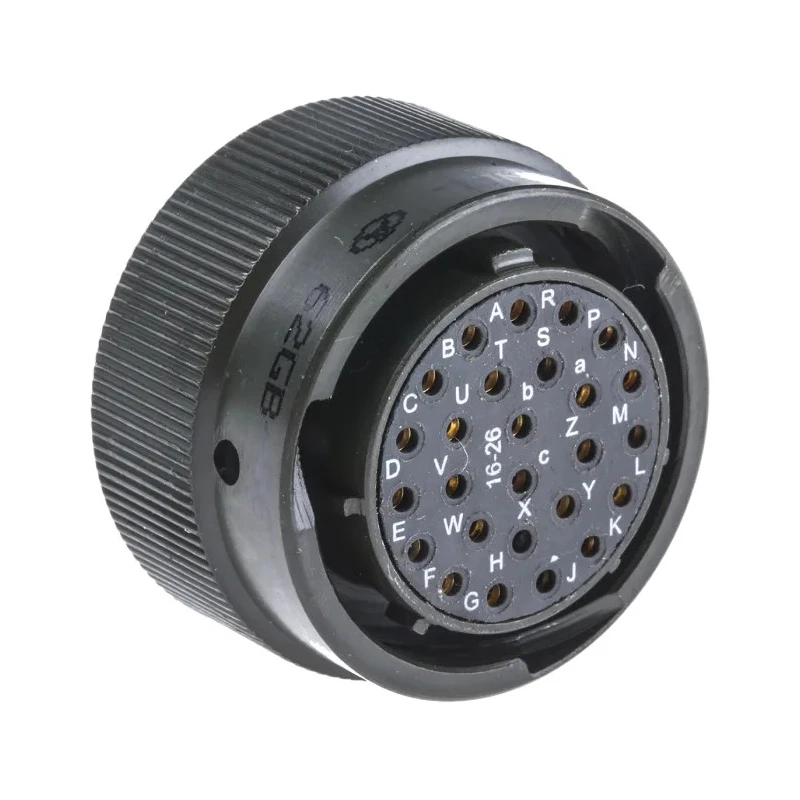

Amphenol Limited MIL Spec Circular Connector 26 Contacts Copper Tin Female Contacts, Male Olive Aluminium 62GB-56T16-26SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Model | 62GB-56T16-26SN |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Copper Tin |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 16 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Miniature |
| Shell Plating | Zinc Cobalt |
Key Features
- Constructed to MIL-DTL-26482 military standard for reliable performance.
- Bayonet lock mating system ensures a secure connection.
- Durable aluminium housing with zinc cobalt plating offers excellent corrosion resistance.
- Operates within temperature range from -55°C to 125°C.
- Supplied with gold plated solder bucket contacts for enhanced conductivity.
- Miniature straight connector size with keying to prevent mismating.
- Strain relief included to protect cable termination.
- Suitable for harsh environments and military applications.
Product Description
Amphenol Limited 62GB-56T16-26SN MIL Spec Circular Connector is a reliable and rugged 26-contact cable-mount miniature circular connector designed to MIL-DTL-26482 standards. Manufactured with a solid aluminium alloy shell finished in a zinc cobalt olive drab plating, this connector provides high strength and superior resistance to corrosion and environmental factors. It incorporates a bayonet locking mechanism that prevents accidental disconnection and ensures secure, reliable connections.
Designed for operating voltages of 500 and 700 volts AC, this connector features female copper tin contacts plated in gold with solder bucket terminations to guarantee excellent electrical conductivity and durable performance. The connector’s miniature size and straight orientation provide versatile usage in densely packed electrical assemblies.
Operating temperatures range from -55°C to 125°C, making it well-suited for demanding industrial and military environments where temperature extremes are common. The 62GB series includes keying features that prevent mismating, maintaining signal integrity and system reliability.
This connector is ideal for applications in electronic components, power connections, and military standard cable assemblies where durability and compliance with stringent MIL-C-26482E standards are required. Its robust construction and environmental sealing provide confidence in harsh industrial, aerospace, and defense systems.
Constructed to MIL-C-26482E with bayonet lock for secure connection. Aluminium shell with zinc cobalt plating for corrosion resistance. 26 gold plated copper tin female contacts supplied for solder termination. Miniature straight connector sized shell number 16.
Operates from -55°C to 125°C temperature range. Provides high degree of environmental protection when mated. Keyway design to prevent mismating. Includes strain relief for cable protection.
These connectors are engineered for use in military, industrial, aerospace, and rugged commercial environments. Their durability, environmental protection, and standards compliance make them well-suited for critical electrical interconnection needs across varied applications.
Explore the full range of Mil Spec Circular Connectors in EnvMart, including Amphenol Limited products for high quality and reliable connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -55°C to 125°C.
It features 26 female contacts made of copper tin.
The connector is rated for operating voltages of 500 and 700 volts AC.
It incorporates a bayonet locking mechanism, ensuring secure connections and preventing accidental disconnection.
The housing is made of aluminium with a zinc cobalt plating, and the contacts are copper tin with gold plating.
Yes, it is designed for use in military, industrial, aerospace, and rugged commercial environments, providing a high degree of environmental protection when mated.
It uses solder terminations for the contacts.
The shell size of this connector is 16.
This model has a straight orientation.
It is constructed to meet the MIL-DTL-26482 military standard.
Yes, it includes strain relief to protect the cable termination.
The housing is olive in color.
