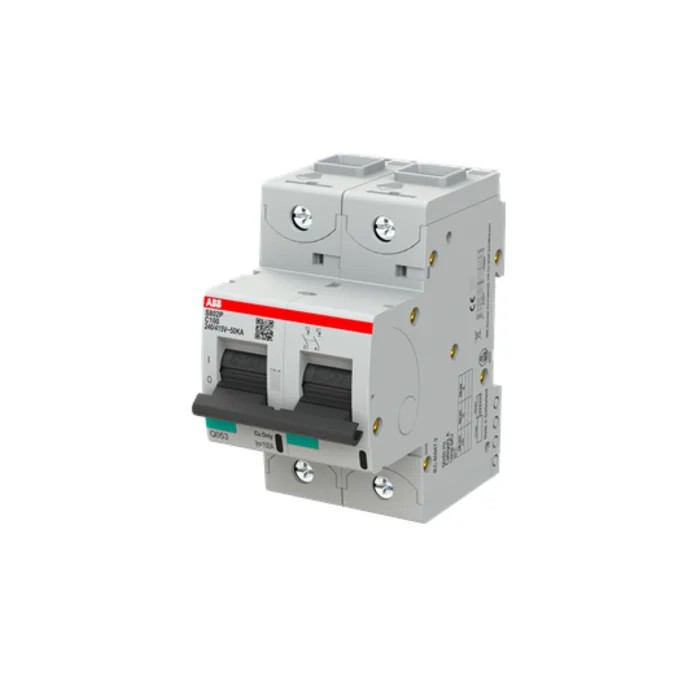

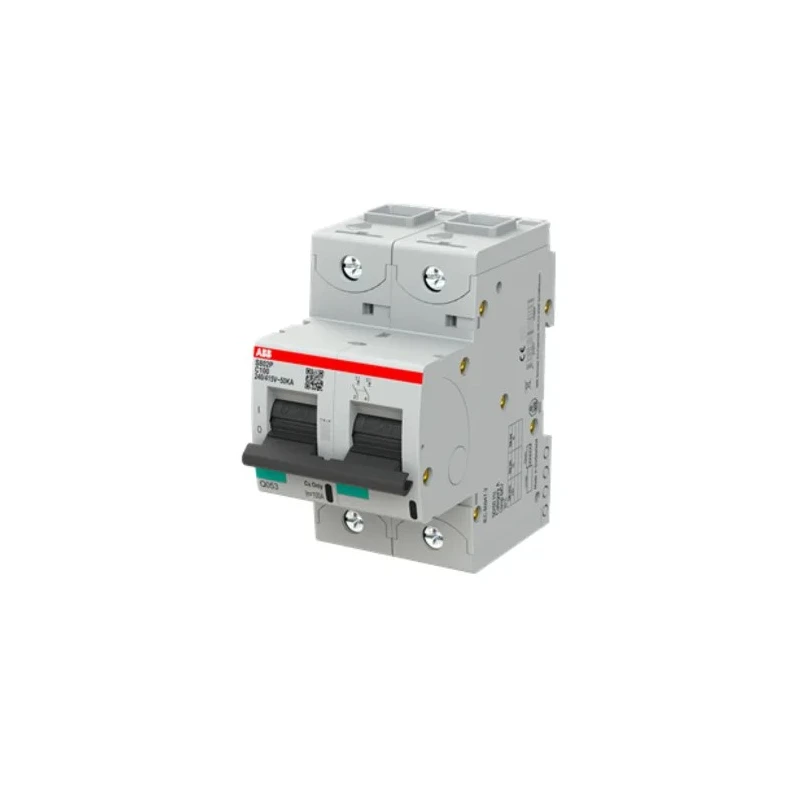

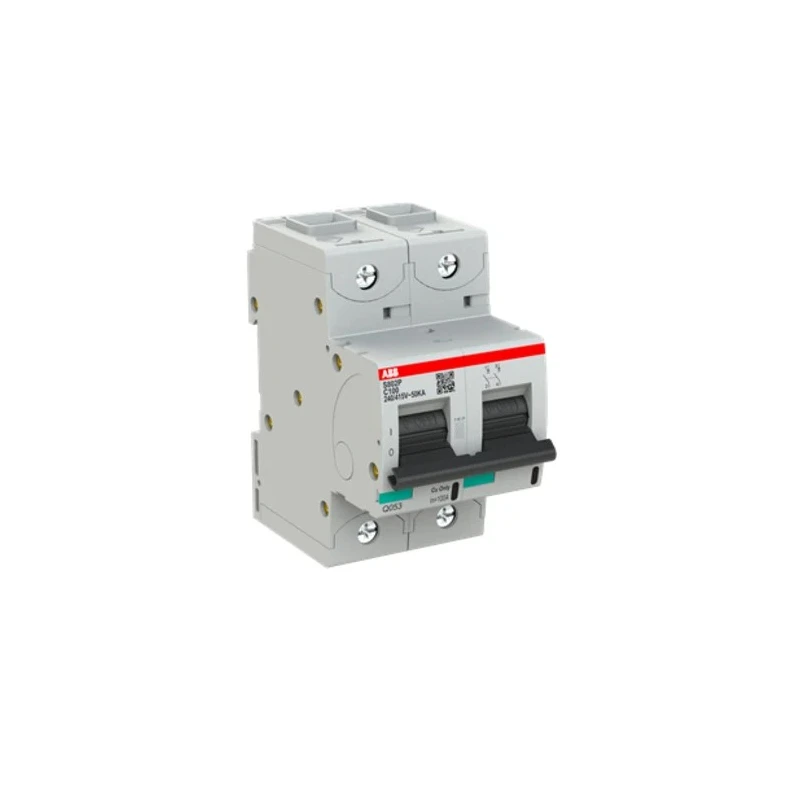

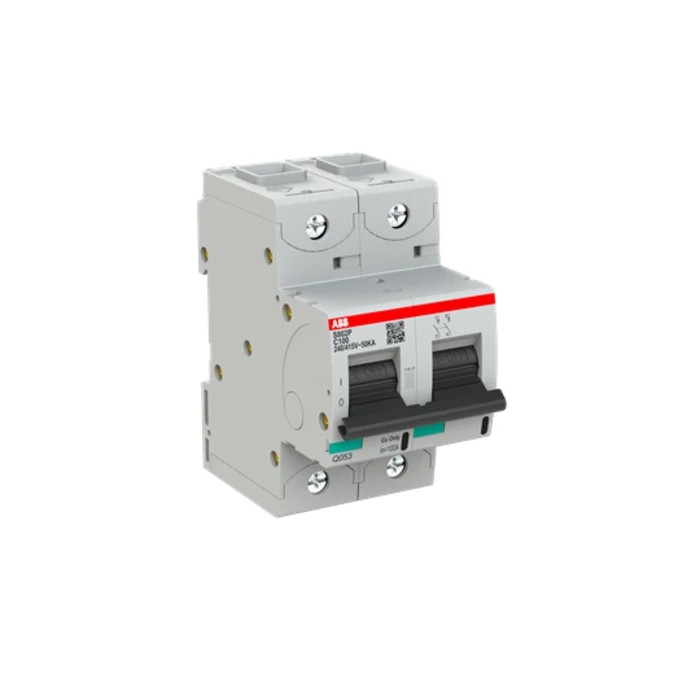

ABB High Performance S800N Miniature Circuit Breaker, 2-Pole, 100A, Type C, 690V AC, 250V DC, 36 kA Breaking 2CCG001230R0001

ABB 2CCG001230R0001 High Performance S800N Miniature Circuit Breaker is a precision-engineered electrical protection device designed for safety and reliability in industrial and residential electrical installations. It is a 2-pole circuit breaker with a current rating of 100 A, incorporating Type C tripping characteristics suitable for applications with moderate inrush currents. The device supports both 690V AC and 250V DC rated voltages, making it highly versatile across different electrical systems.

The circuit breaker features a breaking capacity of 36 kA, ensuring swift disconnection under fault conditions and minimizing potential damage to electrical circuits. Its compact form factor measures 53 mm in width, 95 mm in height, and 88.5 mm in depth, optimized for DIN rail mounting installations.

Its toggle switch actuator enables quick manual resets, and the screw terminal type ensures reliable and secure connections. Designed with IP20 protection, it safeguards internal components from solid object ingress, enhancing operational safety.

Engineered to operate in ambient temperatures ranging from -25°C to +60°C, this breaker maintains consistent performance across diverse environments. It incorporates thermomagnetic and electromagnetic tripping mechanisms, offering dual protection against both overload and short circuit situations.

The product complies with international standards IEC/EN 60947-2 and IEC/EN 60898-1, certifying adherence to global safety and quality norms. Manufactured in Switzerland, it embodies precision and durability.

Applications include electrical distribution boards in industrial settings, residential load-bearing installations, and automation systems where reliable overload and fault protection are critical.

Features a Type C tripping characteristic suitable for circuits with moderate inrush currents. Rated for 690V AC and 250V DC operation providing versatile voltage compatibility. Withstands a breaking capacity of 36 kA enhancing system safety during fault conditions.

Compact size designed for DIN rail mounting ensures easy installation. Toggle switch actuator allows quick manual reset operations. Screw terminal type connection for consistent and reliable electrical contact. IP20 protection level shields against solid object penetration.

Thermomagnetic and electromagnetic tripping mechanism for comprehensive circuit protection. Meets IEC/EN 60947-2 and IEC/EN 60898-1 international safety standards. Ideal for industrial, residential, and automation electrical protection applications.
