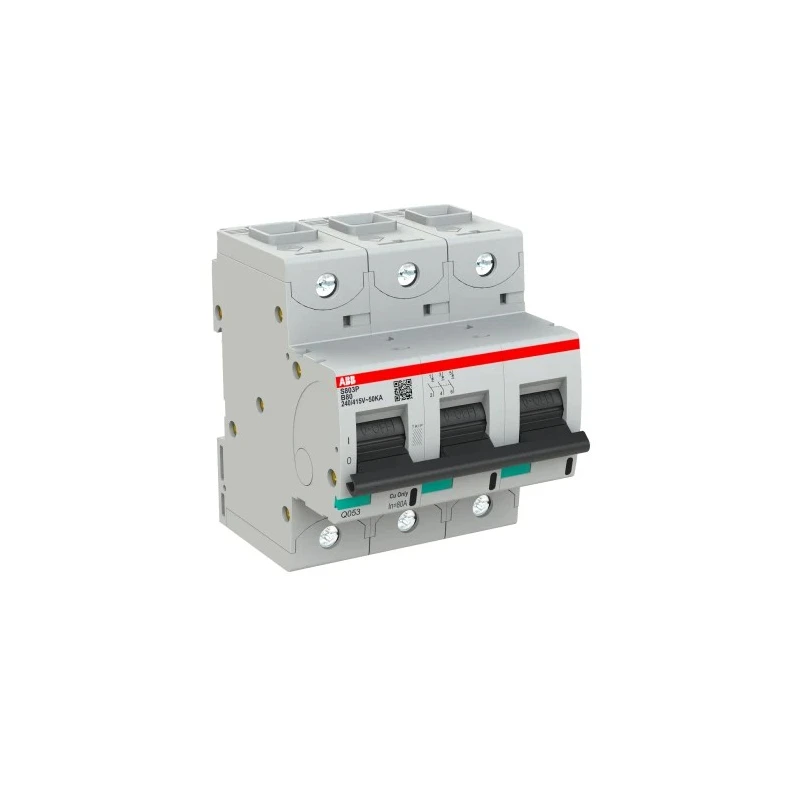

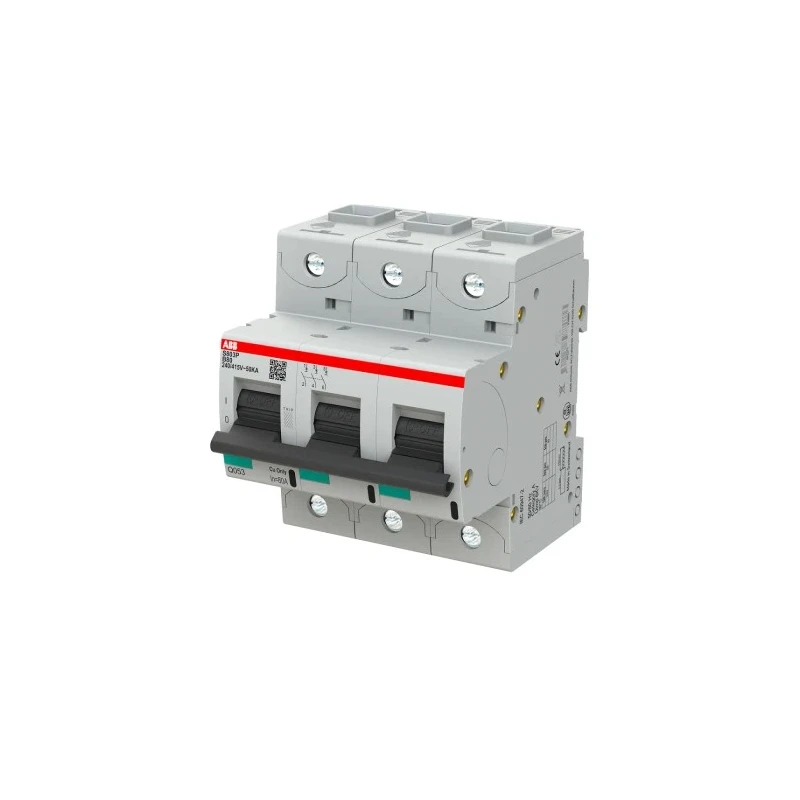

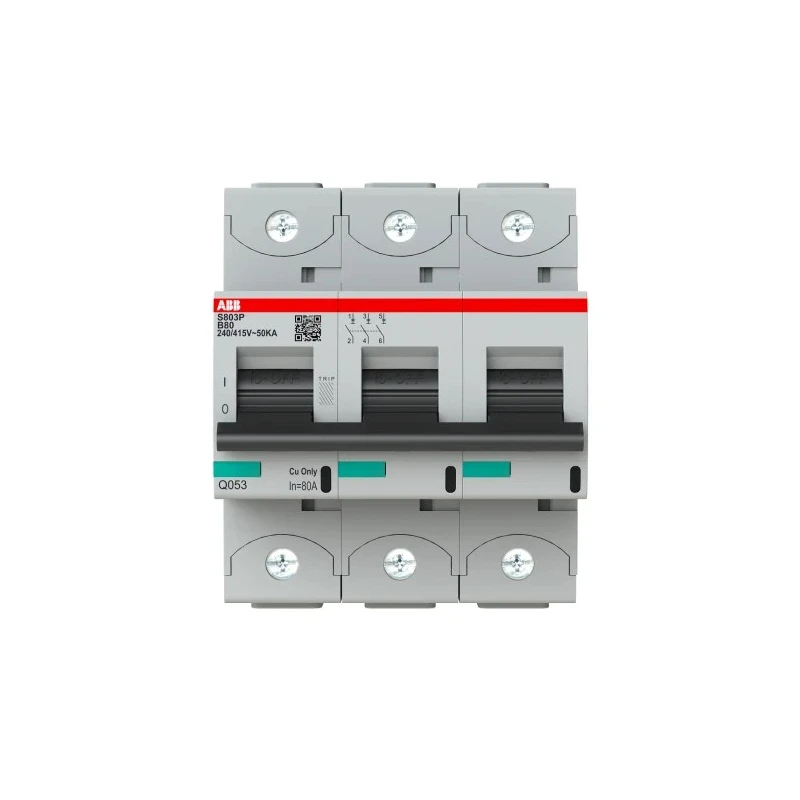

ABB High Performance S800N Miniature Circuit Breaker, 3-Pole, 80A Current Rating, Type B Tripping, 690V ac 2CCG001220R0001



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Switzerland
Range	High Performance
Brand	ABB
Height	95mm
Model	2CCG001220R0001
Depth	82.5mm
IP Rating	IP20
Width	81mm
Mount Type	DIN Rail
Current Rating	80A
Series	S800N
Terminal type	Cage Terminal
Breaking Capacity	36kA
Number of Poles	3
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	690V ac
Rated DC Voltage	375V dc
Tripping Characteristics	Type B
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch

Key Features

Rated for 80A current to safeguard electrical systems effectively.
Equipped with Type B tripping characteristic for rapid overcurrent response.
Supports rated AC voltage of 690V and DC voltage up to 375V.
Offers a breaking capacity of 36 kA for enhanced safety.
Compact design with dimensions 81mm width, 95mm height, and 82.5mm depth for versatile mounting.
Installs easily on standard DIN rail with cage terminal type connection.
Toggle switch actuator enables simple manual reset.
Tripping mechanism combines electromagnetic and thermomagnetic technologies.

Product Description

ABB 2CCG001220R0001 Miniature Circuit Breaker from the High Performance S800N series is a reliable 3-pole circuit breaker designed to protect electrical circuits from overcurrents and short circuits. Operating at a current rating of 80A, it accommodates an AC voltage of 690V and DC voltage of 375V, making it suitable for both AC and DC systems.

This model features a robust tripping mechanism combining electromagnetic and thermomagnetic technologies with Type B trip characteristics, ensuring quick disconnection under fault conditions. The rated breaking capacity of 36 kA supports high fault current interruption for commercial and industrial applications.

Dimensions of 81mm width, 95mm height, and 82.5mm depth provide a compact profile that mounts easily on a standard DIN rail using cage terminals. The toggle switch actuator offers convenient manual resetting of the circuit breaker.

Built to comply with IEC/EN 60898-1 and IEC/EN 60947-2 standards, this MCB supports safety and reliability requirements in electrical installations. Its IP20 rating protects equipment from solid foreign objects while allowing air circulation.

Applications include power distribution in commercial facilities and machinery protection in manufacturing environments. The circuit breaker is also adaptable to various mounting positions, and installation requires only a Pozidriv 2 screwdriver for terminal connection.

Rated for 80A current to safeguard electrical systems effectively. Equipped with Type B tripping characteristic for rapid overcurrent response. Supports rated AC voltage of 690V and DC voltage up to 375V. Offers a breaking capacity of 36 kA for enhanced safety.

Compact design with dimensions 81mm width, 95mm height, and 82.5mm depth for versatile mounting. Installs easily on standard DIN rail with cage terminal type connection. Toggle switch actuator enables simple manual reset.

Tripping mechanism combines electromagnetic and thermomagnetic technologies. IP20 rated for protection against solid objects but not water. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards. Manufactured in Switzerland ensuring high-quality construction.
