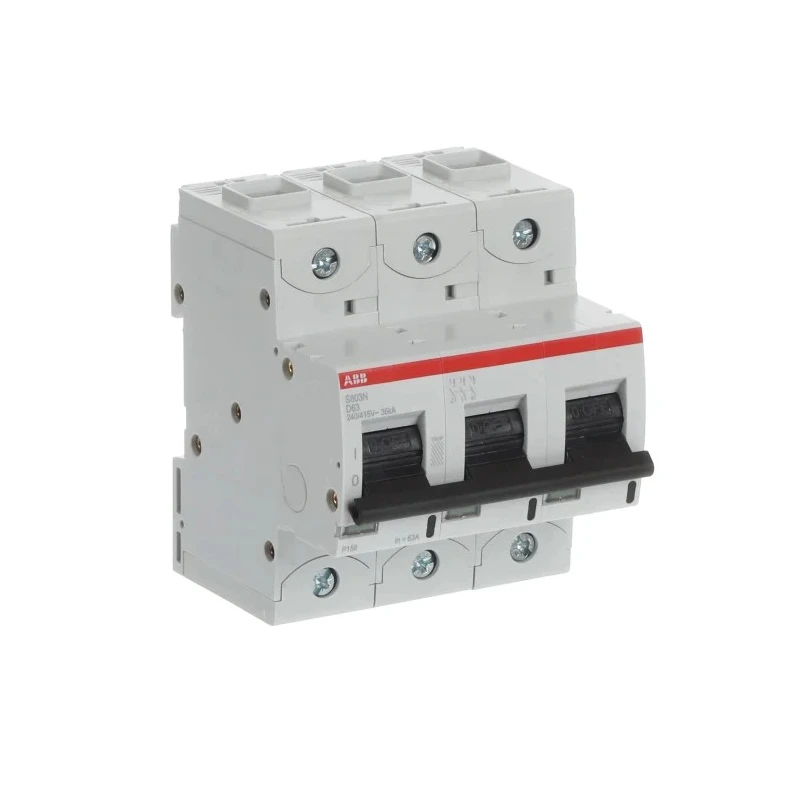

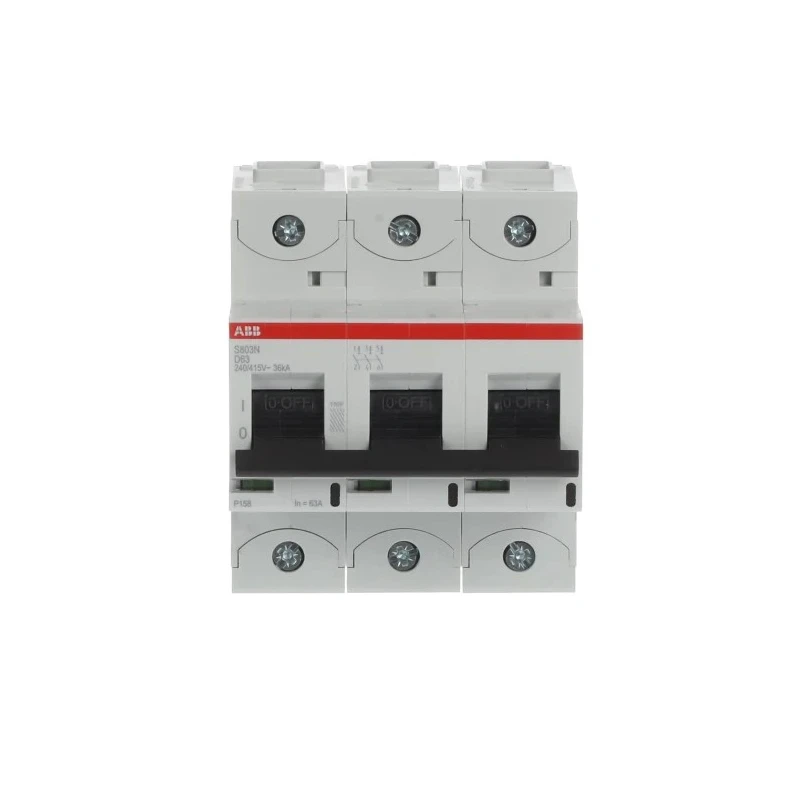

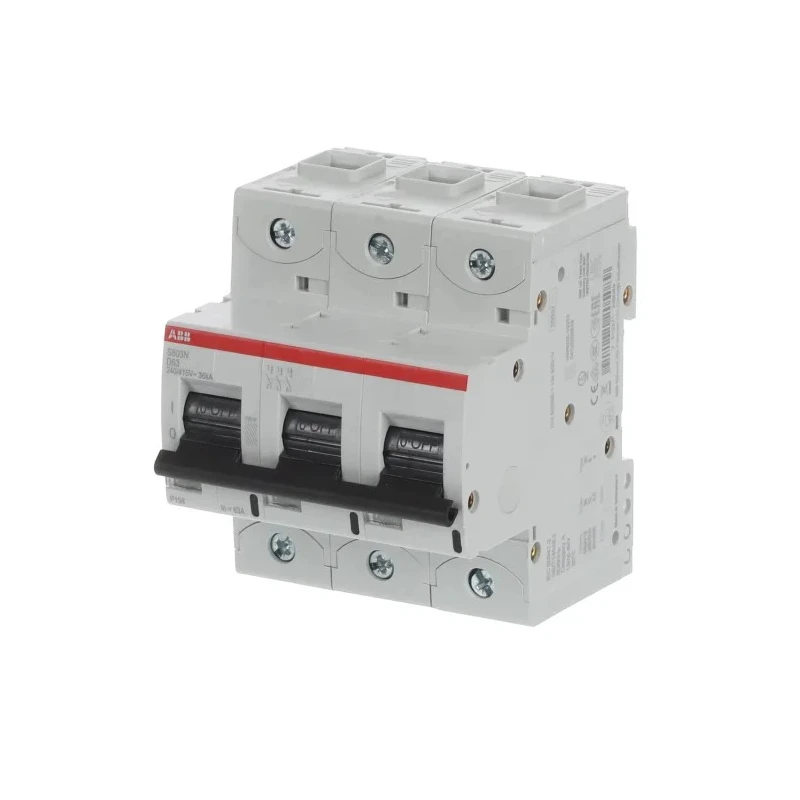

ABB High Performance S800N Miniature Circuit Breaker 3-Pole 63A Type D 690V AC, 375V DC, 6 kA 2CCS893001R0631 S803N-D63

Free Delivery in India | Lowest Global Shipping Charges

ABB High Performance S800N Miniature Circuit Breaker 3-Pole 63A Type D 690V AC, 375V DC, 6 kA 2CCS893001R0631 S803N-D63



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Switzerland
Range	High Performance
Brand	ABB
Height	95mm
Model	2CCS893001R0631 S803N-D63
Depth	82.5mm
IP Rating	IP20
Width	81mm
Mount Type	DIN Rail
Current Rating	63A
Series	S800N
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	3
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	690V ac
Rated DC Voltage	375V dc
Tripping Characteristics	Type D
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Toggle Switch

Key Features

Provides overload protection to safeguard circuits effectively.
Type D tripping characteristic enables management of high inrush currents.
Designed with a compact form factor for space-saving DIN rail installation.
Equipped with screw terminals for secure and stable electrical connections.
Suitable for industrial, residential, and automation control applications.
Rated for 690V AC and 375V DC voltage capacities.
Features a thermal and electromagnetic tripping mechanism for versatile protection.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

Product Description

ABB 2CCS893001R0631 S803N-D63 High Performance S800N Miniature Circuit Breaker is a 3-pole device rated at 63A with Type D tripping characteristics. It supports AC voltages up to 690V and DC voltages up to 375V, making it suitable for both alternating current and direct current applications. This miniature circuit breaker offers a breaking capacity of 6 kA, ensuring reliable interruption of fault currents.

The device is designed with electromagnetic and thermomagnetic tripping mechanisms, offering protection against short circuits and overloads, respectively. It features screw terminals for robust electrical connections and is mountable on a standard DIN rail for convenient and space-saving installation.

Dimensions are compact with a height of 95 mm, width of 81 mm, and depth of 82.5 mm. The breaker meets international safety and performance standards IEC/EN 60898-1 and IEC/EN 60947-2 and has an IP20 ingress protection rating to guard against solid foreign objects. The toggle switch reset actuator facilitates manual reset after a trip event.

This ABB miniature circuit breaker is ideal for applications including industrial machinery protection, automation systems, and residential electrical circuits requiring reliable short circuit and overload protection. Its Type D tripping characteristic allows it to manage moderate to high inrush currents common in motor and transformer circuits.

Provides overload protection to safeguard circuits effectively. Type D tripping characteristic enables management of high inrush currents. Designed with a compact form factor for space-saving DIN rail installation. Equipped with screw terminals for secure and stable electrical connections.

Suitable for industrial, residential, and automation control applications. Rated for 690V AC and 375V DC voltage capacities. Features a thermal and electromagnetic tripping mechanism for versatile protection. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

IP20 rated for protection against solid foreign objects. Toggle switch reset actuator enables easy manual operation.

This Miniature Circuit Breaker is a dependable choice for reliable circuit management in diverse electrical systems. Explore more ABB electrical protection products and accessories at EnvMart for your industrial and residential needs.
