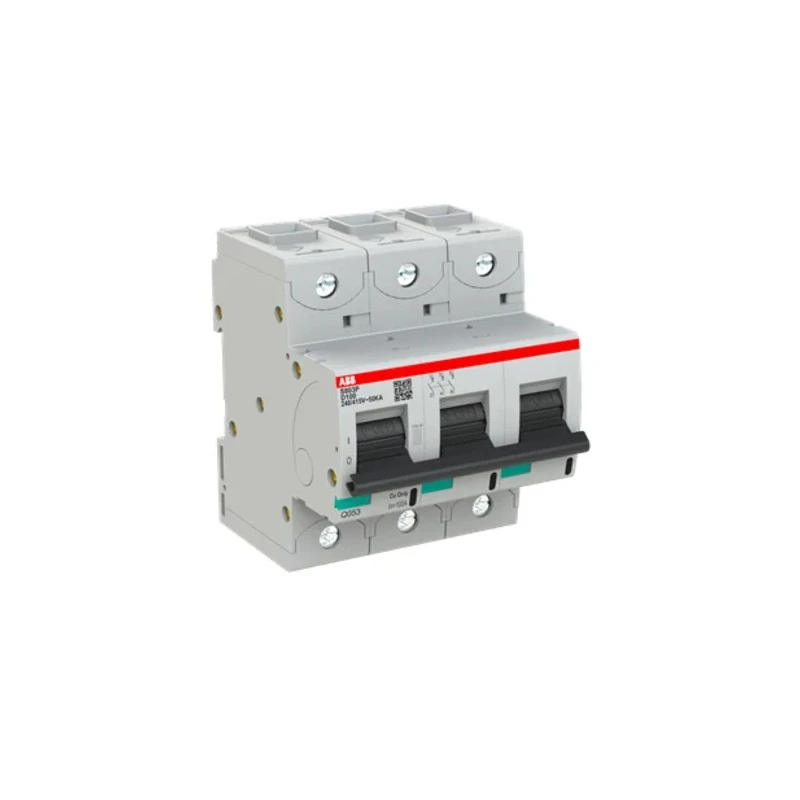

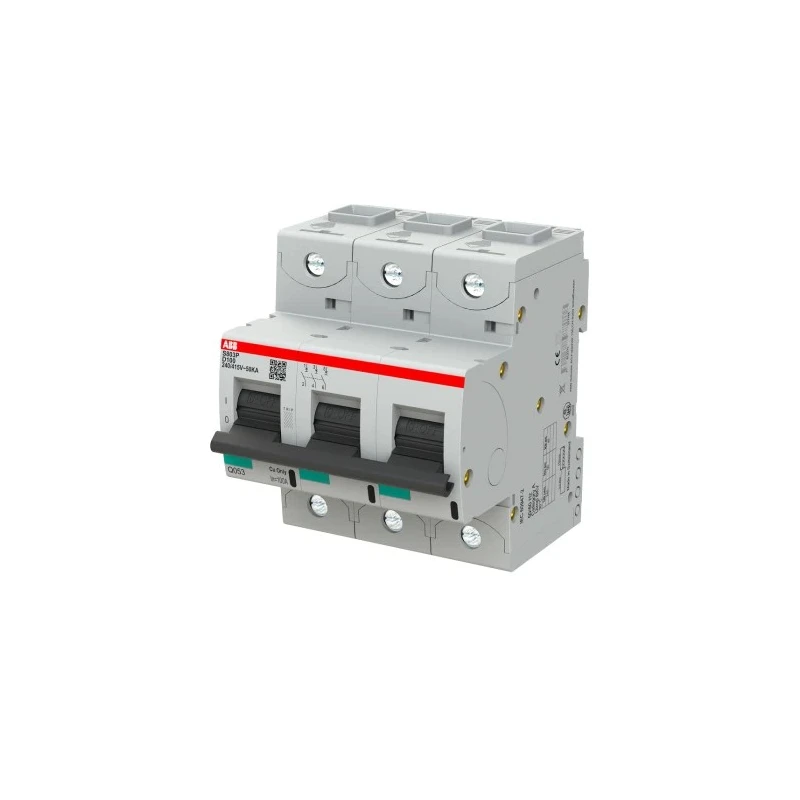

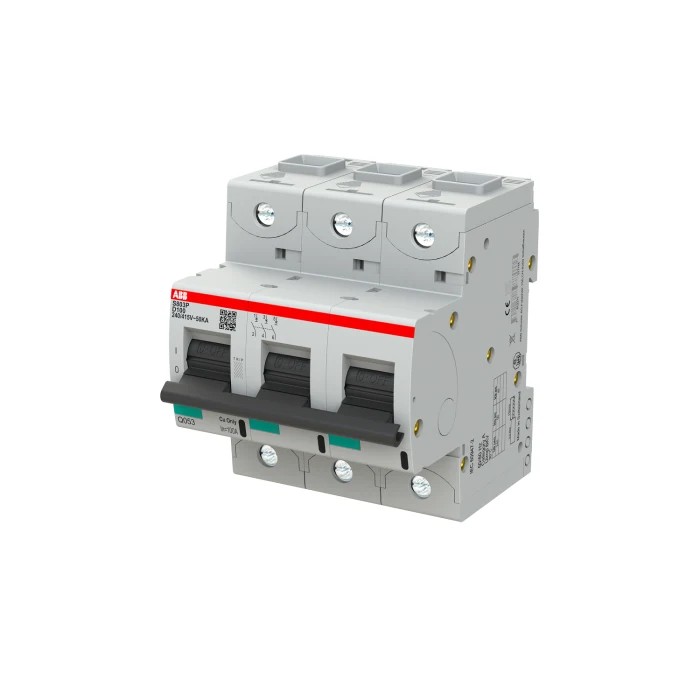

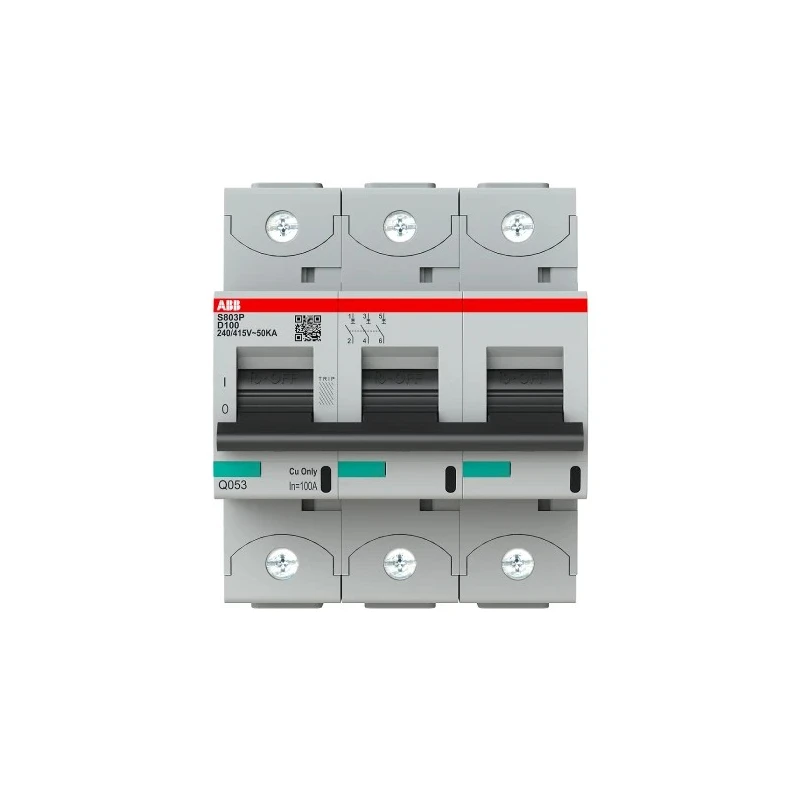

ABB High Performance S800N Miniature Circuit Breaker, 3-Pole, 100A, Type D, 690V AC, 375V DC, 36kA Breaking 2CCG001245R0001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Range | High Performance |
| Brand | ABB |
| Height | 95mm |
| Model | 2CCG001245R0001 |
| Depth | 82.5mm |
| IP Rating | IP20 |
| Width | 81mm |
| Mount Type | DIN Rail |
| Current Rating | 100A |
| Series | S800N |
| Terminal type | Cage Terminal |
| Breaking Capacity | 36kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 375V dc |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermomagnetic, Electromagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Three-pole design offers robust protection for multi-phase electrical circuits.
- Rated current of 100A ensures suitability for demanding power distribution needs.
- Type D tripping characteristic provides high magnetic tripping for effective overload safeguard.
- Supports both AC voltage of 690V and DC voltage of 375V for versatile applications.
- Breaking capacity of 36kA allows reliable interruption of fault currents.
- Mounts easily onto DIN rail systems for quick installation.
- Toggle switch actuator enables simple manual resetting after tripping events.
- Compliant with IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and reliability.
Product Description
ABB 2CCG001245R0001 Miniature Circuit Breaker (MCB) from the High Performance S800N series is engineered for superior electrical safety in industrial, commercial, and automation control panel applications.
This 3-pole MCB delivers a rated current of 100 amperes and features Type D tripping characteristics, offering enhanced magnetic tripping capabilities to protect equipment from overloads and short circuits. It supports operation at AC voltage up to 690 volts and DC voltage up to 375 volts, making it suitable for a wide range of electrical distribution environments.
The device’s breaking capacity of 36 kiloamperes ensures effective fault current interruption, minimizing damage risks and downtime. Its toggle switch reset actuator provides straightforward manual operation. Designed for DIN rail mounting, the MCB installs easily within standard electrical panels.
Constructed to comply with IEC/EN 60947-2 and IEC/EN 60898-1 standards, the S800N MCB features thermomagnetic and electromagnetic tripping mechanisms for reliable performance. The compact IP20 enclosure (width 81mm, height 95mm, depth 82.5mm) allows efficient use of panel space while providing adequate protection.
Typical use cases include electrical distribution and protection in commercial buildings, automation systems, and industrial control panels. Its robust construction and high-performance specification make it essential for modern electrical safety implementations.
Three-pole design for multi-phase protection. 100A rated current for high power circuits. Type D tripping for high magnetic overload protection. Supports 690V AC and 375V DC operation. 36 kA breaking capacity for fault current interruption.
DIN rail mountable for easy installation. Toggle switch for manual reset after trip. Compliance with IEC standards for assured safety. Compact footprint with IP20 protection. Explore the range of ABB products for reliable circuit protection and automation solutions at EnvMart Electrical category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a rated current of 100A, making it suitable for demanding power distribution needs.
It supports operation at a rated AC voltage of 690V and a rated DC voltage of 375V.
The breaking capacity of this unit is 36kA, allowing for reliable interruption of fault currents.
This miniature circuit breaker features a three-pole design, providing robust protection for multi-phase electrical circuits.
It has Type D tripping characteristics, which provide high magnetic tripping for effective overload protection.
It is designed for DIN rail mounting, allowing for quick and easy installation within standard electrical panels.
The dimensions are 81mm in width, 95mm in height, and 82.5mm in depth.
It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for safety and reliability.
It features a toggle switch reset actuator, which enables simple manual resetting after tripping events.
This model employs thermomagnetic and electromagnetic tripping mechanisms for reliable performance.
The country of origin for this product is Switzerland.
It has an IP20 rating, providing adequate protection for indoor use in electrical panels.
