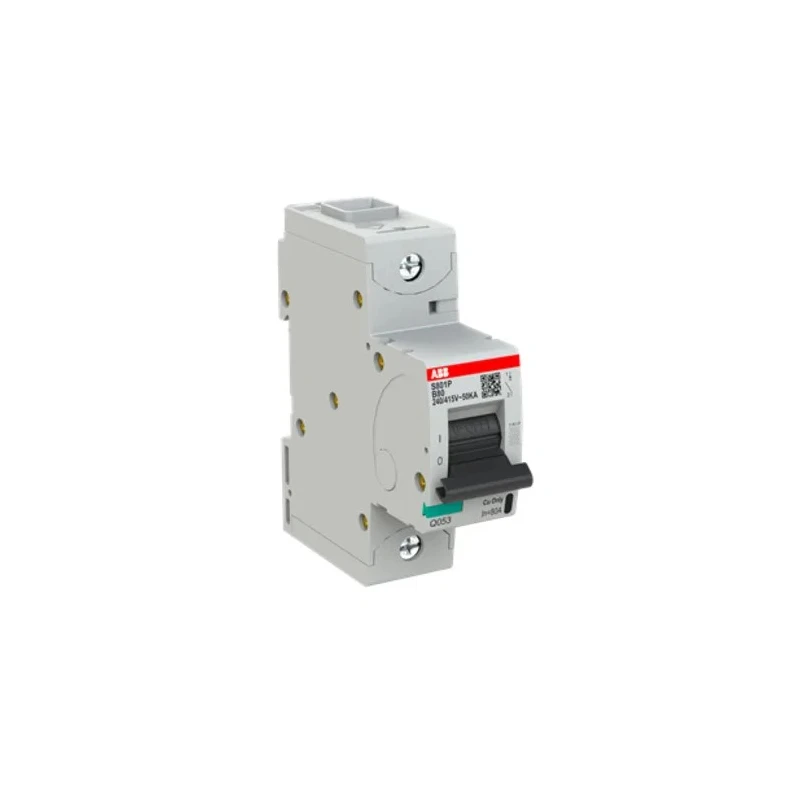

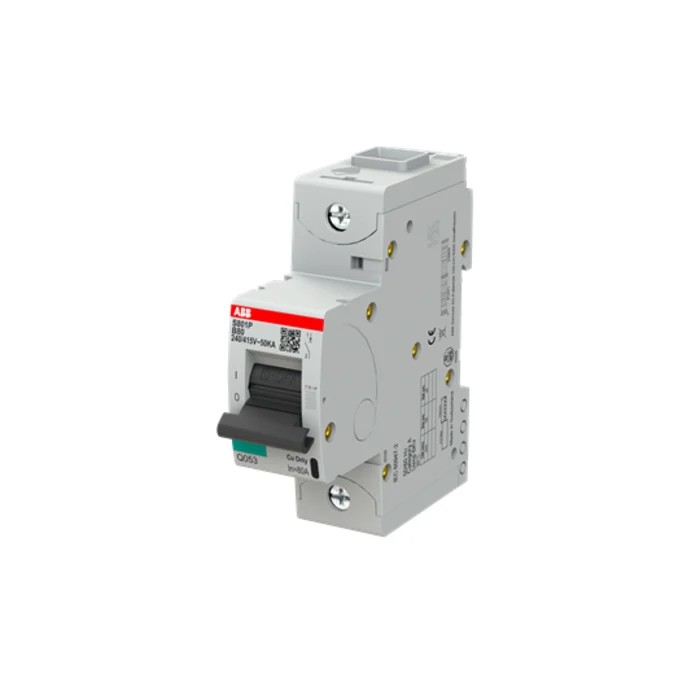

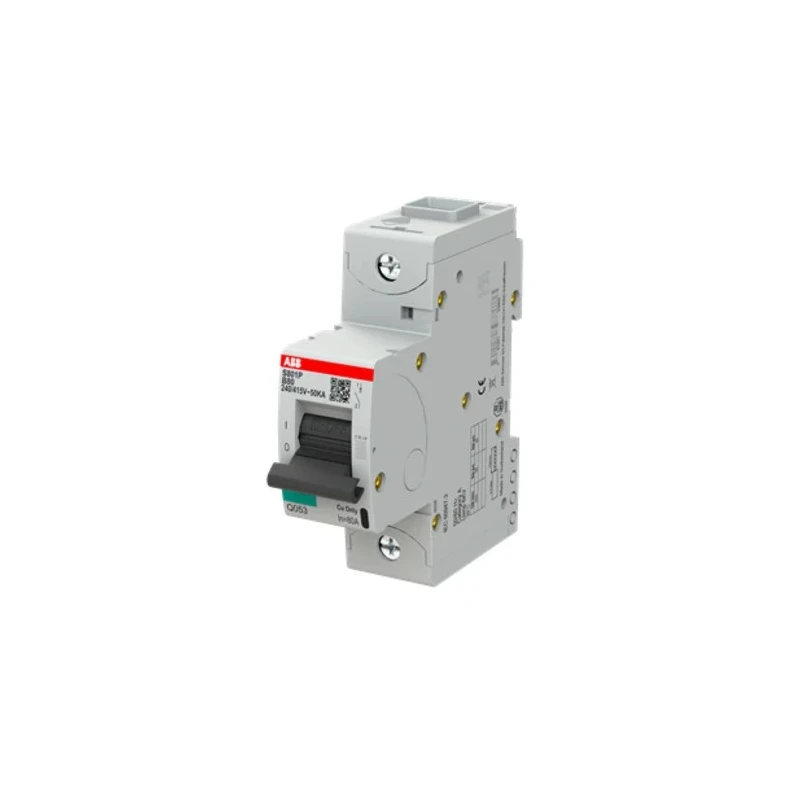

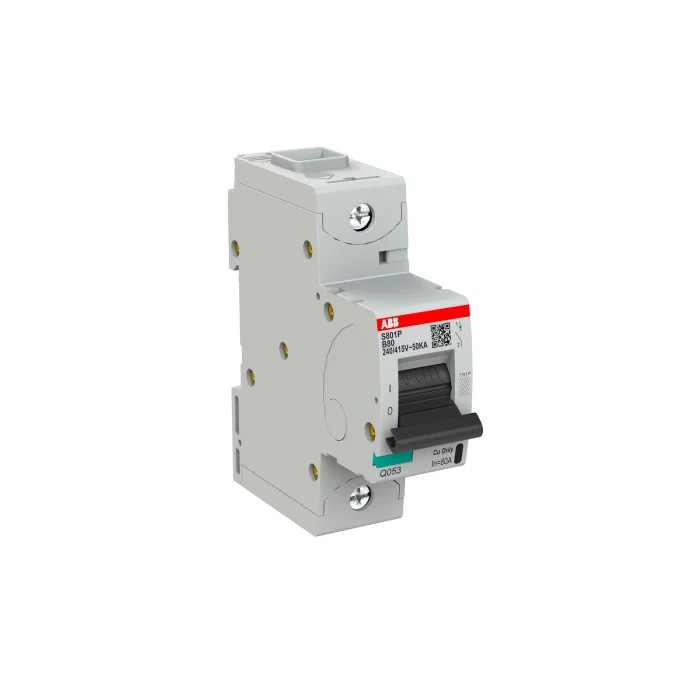

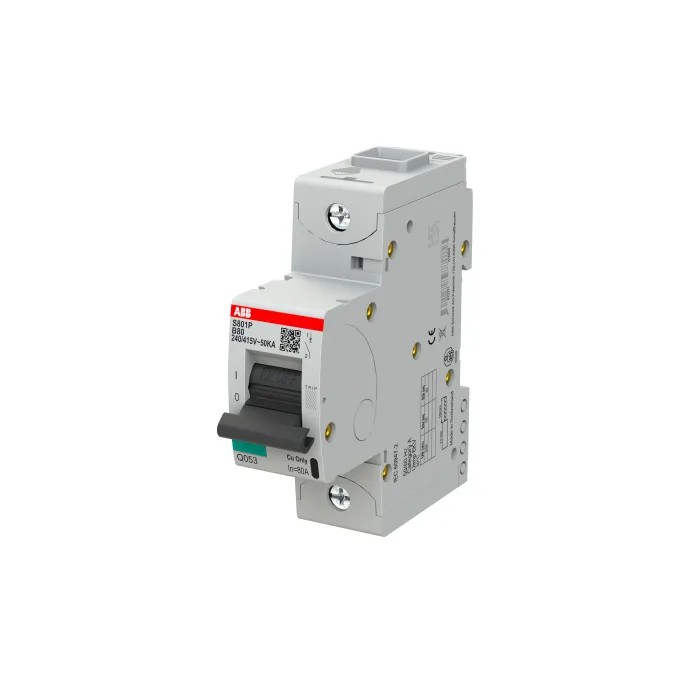

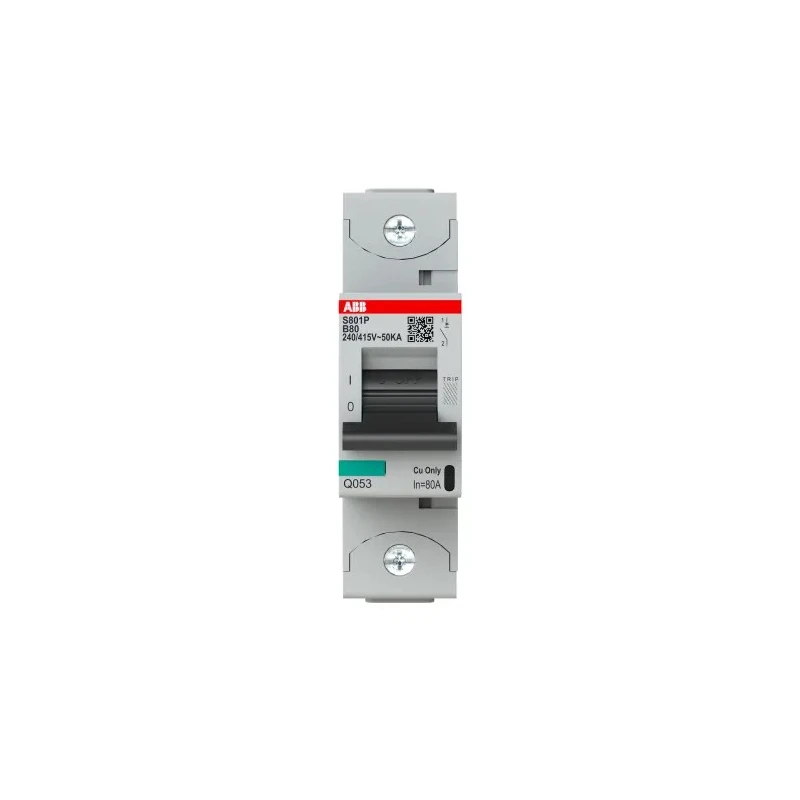

ABB High Performance S800S Miniature Circuit Breaker 1-Pole 80A Type B 690V AC 250V DC 50kA Breaking Capacity 2CCG001214R0001

ABB 2CCG001214R0001 High Performance S800S Miniature Circuit Breaker is a single-pole electrical safety device rated at 80A current, designed to protect circuits by interrupting overcurrent or short circuits efficiently. It operates at 690V AC and 250V DC and features a Type B tripping characteristic optimized for inductive loads common in industrial and residential applications.

This miniature circuit breaker features a high breaking capacity of 50kA, providing robust fault clearing capability to enhance system safety. The compact device measures 27mm in width, 95mm in height, and 82.5mm in depth, allowing easy integration into DIN rail-mounted electrical panels with screw terminals ensuring secure electrical connections.

The toggle switch actuator allows for manual resetting after tripping events, offering operational convenience. The tripping mechanism combines electromagnetic and thermomagnetic technologies for precise and reliable trip performance. Compliance with international IEC/EN 60898-1 and IEC/EN 60947-2 standards assures quality and safety in diverse industrial and commercial settings.

Ideal use cases include industrial machinery protection, residential circuit safeguarding for general lighting and power outlets, and other electrical installations demanding dependable circuit breaking performance. The device is rated IP20 for environmental protection against dust intrusion, enhancing durability in typical installation environments.

Supports current rating of 80A for reliable circuit protection. Type B tripping characteristic suitable for inductive load protection. High breaking capacity of 50kA ensures enhanced safety. Rated for 690V AC and 250V DC voltages for versatile applications.

Compact size with 27mm width and 82.5mm depth for space-efficient installation. Toggle switch reset actuator for convenient manual reset. Suitable for industrial and residential electrical panel protection. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.

IP20 protection rating for dust protection in electrical environments.

This ABB Miniature Circuit Breaker 2CCG001214R0001 reflects advanced protection technology suitable for electrical engineers, industrial automation, construction, and commercial electrical wiring. For further product selections, explore our Electronics & Electricals and Circuit Breakers categories at EnvMart.
