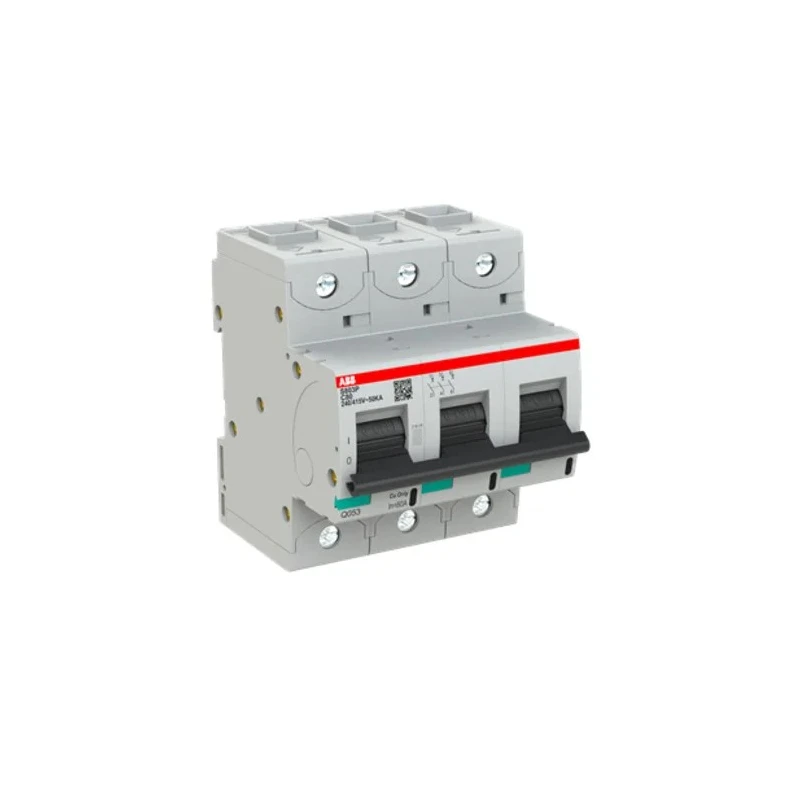

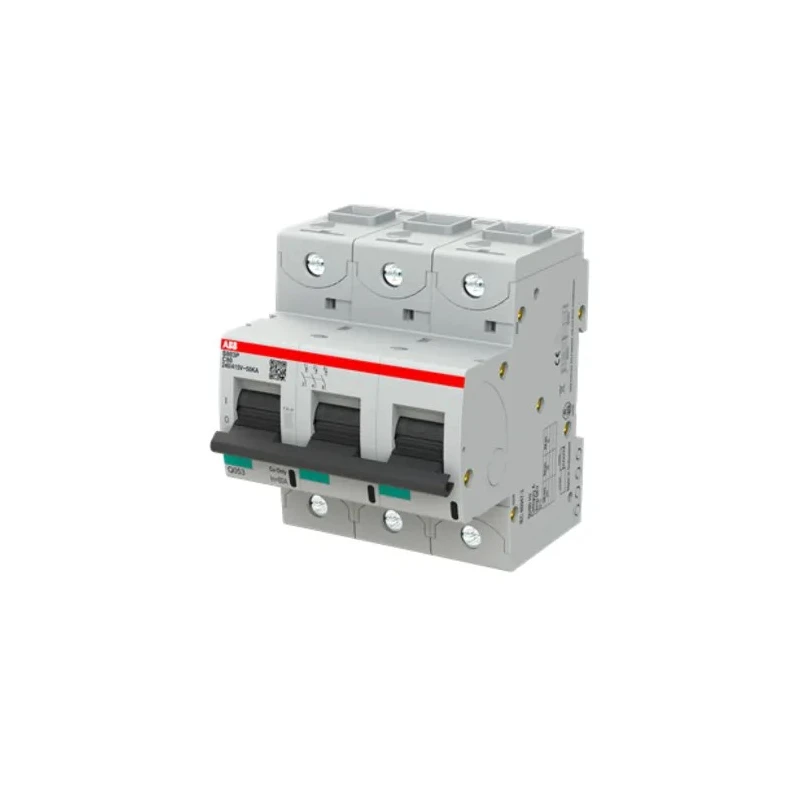

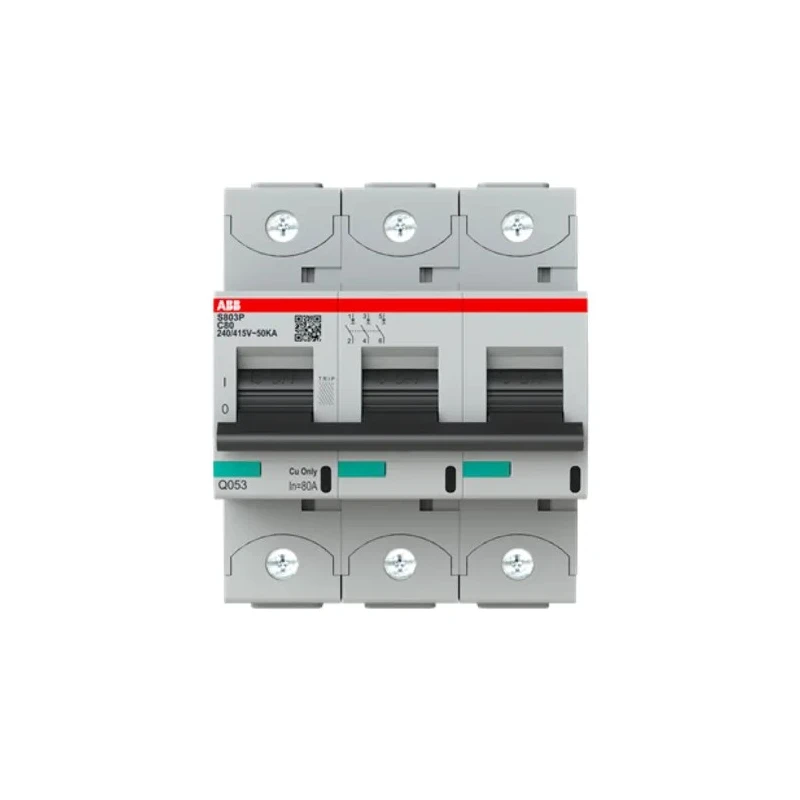

ABB High Performance S800N 3-Pole Miniature Circuit Breaker 80A Type C 690V AC 375V DC 36kA Breaking Capacity 2CCG001232R0001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Range | High Performance |
| Brand | ABB |
| Height | 95mm |
| Operating Temperature Range | -25 to +60°C |
| Model | 2CCG001232R0001 |
| Depth | 88.5mm |
| IP Rating | IP20 |
| Width | 80mm |
| Mount Type | DIN Rail |
| Current Rating | 80A |
| Series | S800N |
| Terminal type | Cage Terminal |
| Breaking Capacity | 36kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 375V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
Key Features
- This MCB supports a rated AC voltage of 690V and DC voltage of 375V for versatile applications.
- Its breaking capacity is 36kA, ensuring robust fault interruption in demanding industrial environments.
- The unit mounts easily on a DIN rail with cage terminal connections for secure installation.
- Compact size and IP20 rating provide safety and high performance in confined electrical panels.
- Operating temperature ranges from -25°C to +60°C, suitable for harsh conditions.
- Thermal and electromagnetic tripping mechanisms protect against overload and short circuits.
- Meets IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring global certification and compliance.
- Designed for industrial, construction, medical imaging, and food processing applications.
Product Description
ABB 2CCG001232R0001 High Performance S800N 3-Pole Miniature Circuit Breaker is engineered for reliable and efficient electrical system protection with an 80A current rating and Type C tripping characteristic.
This breaker supports a rated AC voltage of 690V and a DC voltage of 375V, with a strong breaking capacity of 36kA, ensuring it can safely cut off fault currents in critical industrial and commercial settings.
Designed for DIN rail mounting with cage terminal type connections, its compact dimensions of 80mm width, 95mm height, and 88.5mm depth fit into tight spaces without compromising performance. The unit features a robust construction with an IP20 touchproof rating, making it safe to operate even in challenging environments.
The breaker employs both thermal and electromagnetic tripping mechanisms, offering precise protection against overloads and short circuits, thereby minimizing nuisance trips and downtime.
ABB S800N series breakers conform to IEC/EN 60898-1 and IEC/EN 60947-2 standards and are validated for use in various industrial sectors, including construction, medical imaging, food and beverage processing, and general manufacturing.
Rated impulse withstand voltage of 8kV enhances durability under transient voltage surges. Wide operating temperature range from -25°C to +60°C supports performance in diverse environmental conditions. Compact and ergonomic design enables installation in constrained electrical panels.
Electromagnetic and thermomagnetic trip mechanisms for high-speed fault interruption. Flame retardant and robust materials improve longevity and safety. Compliance with international standards ensures dependable operation worldwide.
Ideal for protecting circuits prone to surge currents such as those with fluorescent lighting or female electrical connectors. Explore ABB circuit breakers and other electrical protection solutions on EnvMart for reliable industrial and commercial electrical safety.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 36kA, which allows it to safely interrupt fault currents in industrial environments.
It supports a rated AC voltage of 690V and a DC voltage of 375V, making it versatile for various applications.
This unit has a current rating of 80A, suitable for protecting electrical circuits in demanding conditions.
It employs both electromagnetic and thermomagnetic tripping mechanisms, providing protection against overloads and short circuits.
The unit has an IP20 rating, indicating it is touchproof and suitable for use in environments where exposure to dust and moisture is limited.
The dimensions are 80mm in width, 95mm in height, and 88.5mm in depth, allowing for installation in compact spaces.
It operates within a temperature range of -25°C to +60°C, making it suitable for various environmental conditions.
This model is designed for DIN rail mounting, featuring cage terminal connections for secure installation.
It meets IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring compliance for international use.
It is designed for use in industrial, construction, medical imaging, and food processing applications.
The country of origin for this miniature circuit breaker is Switzerland.
This model belongs to the S800N series, known for its high performance in electrical protection.
