JST EH Series Female Crimp Terminal 3A 30 AWG Min to 22 AWG Max Phosphor Bronze Tin Plated BEH-001T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

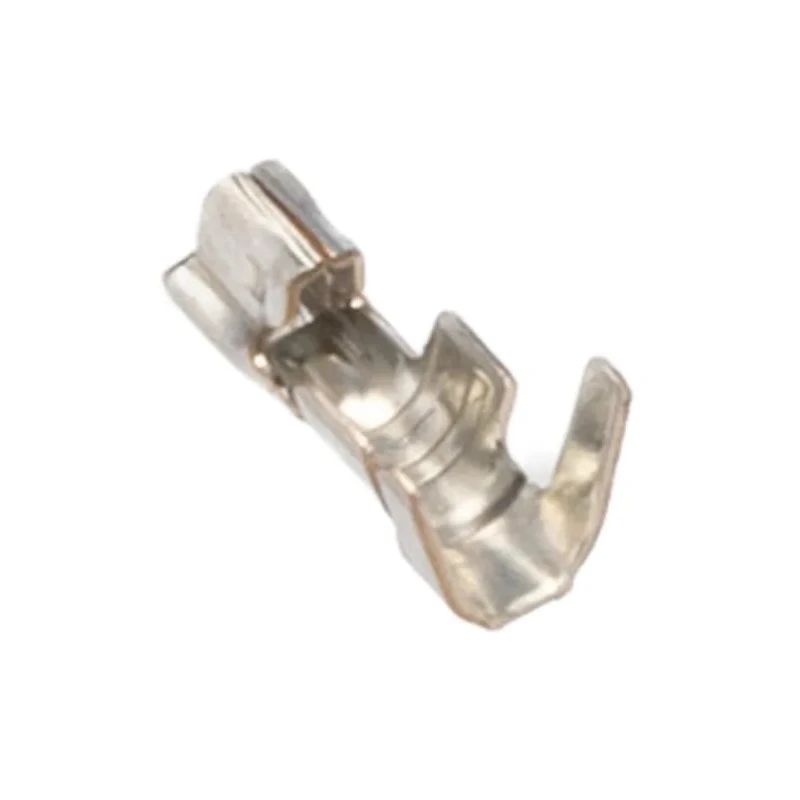

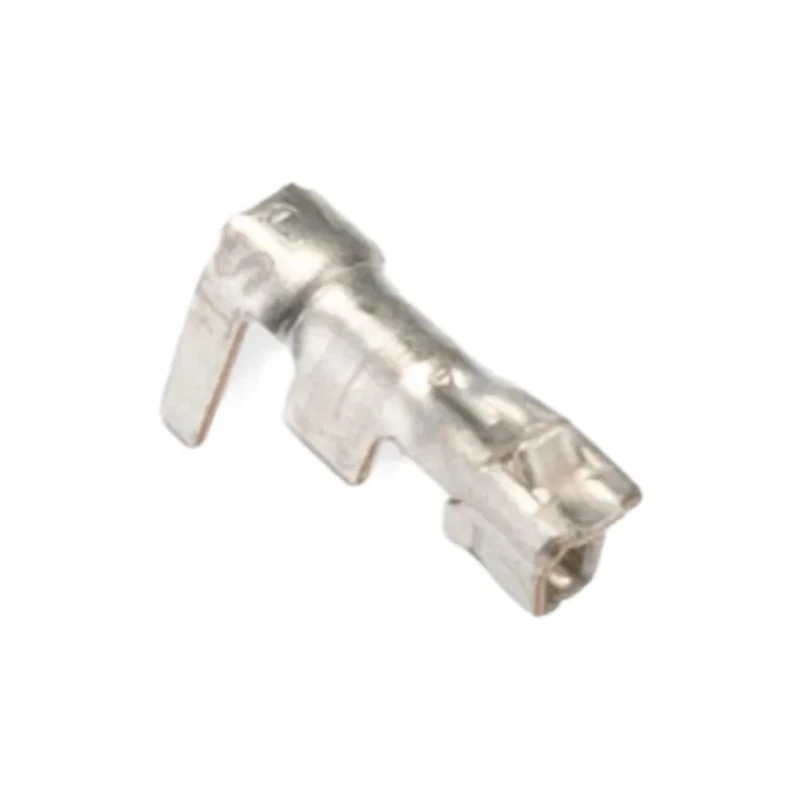

JST EH Series Female Crimp Terminal 3A 30 AWG Min to 22 AWG Max Phosphor Bronze Tin Plated BEH-001T-P0.6



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	Malaysia
Brand	JST
Current	3A
Model	BEH-001T-P0.6
Gender	Female
Contact Material	Phosphor Bronze
Series	EH
Termination Type	Crimp
Maximum Operating Temperature	85°C
Insulation resistance	1,000M Ω min
Minimum Operating Temperature	-25°C
For Use With	EH Connector Housing
Contact Resistance	10m Ω max. (initial)
Contact Plating	Tin
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	0.3mm²
Minimum Wire Size AWG	30AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ
PCB Thickness	0.8-1.6 mm
JST EH Series Female Crimp Terminal, 30 AWG Min Crimp, 22 AWG MaxBrand	JST

Key Features

Constructed from tin-plated phosphor bronze for reliable electrical performance.
Compact and slim design measuring 8.1mm high by 3.8mm wide for space-efficient PCB mounting.
Supports EH connector housings with 2.5mm pitch crimp-style terminals.
Features a maximum contact resistance of 20 milliohms ensuring stable connections.
Operates reliably in temperatures ranging from -25°C to +85°C.
Polarising guides enhance correct insertion and usage.
High insulation resistance of minimum 1000 megohms for electrical safety.
Suitable for PCB thickness between 0.8 to 1.6 mm.

Product Description

The JST BEH-001T-P0.6 is a female crimp terminal part of the EH Series, engineered for compact, efficient electronic connectivity in industrial and commercial applications. It supports a wire size range from 30 AWG minimum to 22 AWG maximum and is rated for currents up to 3 amperes.

Manufactured from tin-plated phosphor bronze, this crimp contact combines high conductivity with durability. The slim and compact profile, measuring just 8.1mm in height and 3.8mm in width once mounted, is ideal for dense PCB layouts. The crimp terminals have a 2.5mm pitch and are designed to fit EH connector housings.

This terminal features a maximum contact resistance of 20 milliohms and an initial contact resistance of 10 milliohms maximum, ensuring low electrical losses and reliable signal transmission. It also offers excellent insulation resistance of 1000 megohms minimum, promoting electrical safety and integrity.

Designed for operational temperatures ranging from -25°C to +85°C, it performs reliably under varying environmental conditions. Polarising guides facilitate correct polarization and connection, reducing the risk of improper assembly. Suitable PCB thickness for these terminals ranges from 0.8 to 1.6 mm.

These Crimp Contacts are particularly suitable for applications subject to vibrations or mechanical movements, commonly found in industrial, manufacturing, electronic assembly, and instrumentation fields. They help maintain stable electrical connections in dynamic environments.

Constructed from tin-plated phosphor bronze. Compact 2.5mm pitch crimp-style connector. Wire size range: 30 AWG (min) to 22 AWG (max). Rated current: 3A. Polarising guides for correct insertion. Maximum contact resistance: 20mΩ.

Operational temperature range: -25°C to 85°C. Insulation resistance: 1000MΩ minimum. Fits EH connector housings.

This product is made in Malaysia and complies with industry standards ensuring quality and reliability. Explore related JST connectors and crimp tools at EnvMart to complete your electronic assembly needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This crimp terminal is rated for a maximum current of 3 amperes.

It supports a wire size range from 30 AWG minimum to 22 AWG maximum.

The maximum contact resistance is 20 milliohms, with an initial contact resistance of 10 milliohms maximum.

It offers a minimum insulation resistance of 1000 megohms, promoting electrical safety.

Once mounted, this terminal measures 8.1mm in height and 3.8mm in width.

It operates reliably in temperatures ranging from -25°C to +85°C.

This terminal is suitable for PCB thicknesses between 0.8 mm and 1.6 mm.

It is designed for use with EH connector housings that accommodate 2.5mm pitch crimp-style terminals.

It is constructed from tin-plated phosphor bronze for reliable electrical performance.

Yes, it includes polarising guides to enhance correct insertion and usage.

This crimp terminal is made in Malaysia.

It is particularly suitable for applications subject to vibrations or mechanical movements, commonly found in industrial and electronic assembly fields.
