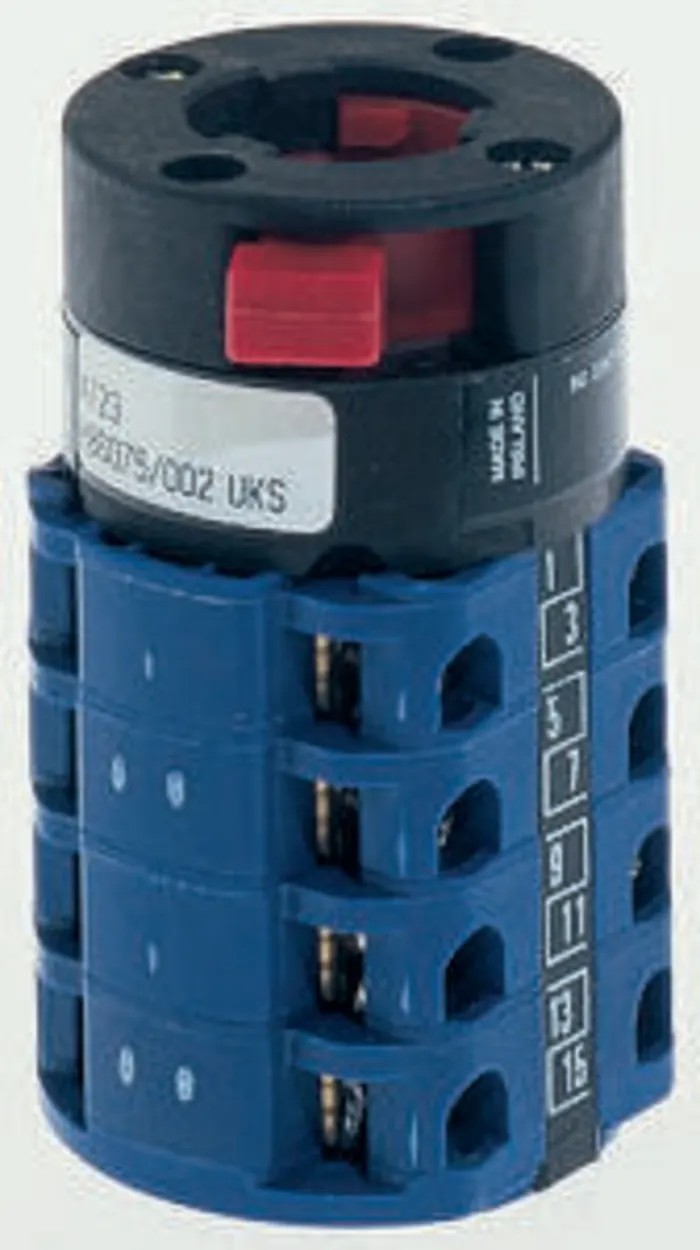

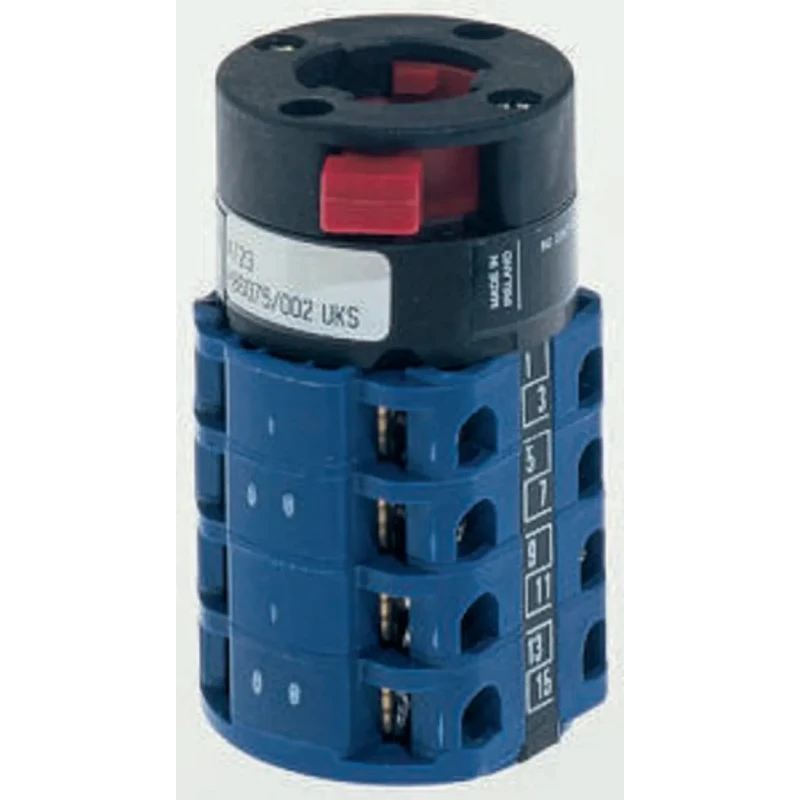

Kraus & Naimer Cam Switch Panel Mount 3 Position 60 ° Angle of Throw 20A Contact Current CG8.A213/GBA001.*FT

Kraus & Naimer CG8.A213/GBA001.*FT cam switch is a high-quality panel mount cam switch designed to facilitate reliable electrical control in industrial and automation environments. It features a three-position selector with a 60-degree angle of throw and is rated for a contact current of 20 amperes. This device is suitable for switching and controlling electrical circuits in commercial and industrial settings.

The switch is constructed with four poles and screw-type terminals for secure electrical connections. It adheres to IEC 60947-3 standards, guaranteeing compliance with international electrical safety and performance requirements. It is IP40 rated to prevent intrusion of solid foreign objects larger than 1 mm, making it well-suited for protected installations.

Operating temperature ranges from -25°C to 55°C allow usage in diverse environmental conditions. The cam switch is engineered for high durability, with a mechanical life expectancy of one million operations, reducing the need for frequent replacements.

Each switch unit includes the appropriate legend plate, enabling clear function identification, but the rotary switch operator (knob) must be ordered separately, allowing users to tailor the interface to specific applications.

This Cam Switch is ideally used in electrical automation, control panels, machine tools, and industrial equipment setups where precise multi-position switching is required. Its robust design ensures dependable performance in demanding environments prevalent in manufacturing, HVAC control, material handling, and other electrical control applications.

Designed for panel mounting with screw terminals for secure connections. Features 3 switching positions with a 60-degree angle of throw. Has a contact current rating of 20 amperes suitable for general electrical control.

Constructed with four poles providing multiple circuit switching capability. Meets IEC 60947-3 standards ensuring reliability and safety. IP40 rated enclosure providing protection against solid objects greater than 1 mm.

Operates reliably between -25°C to 55°C ambient temperatures. Mechanical life rated for one million operations ensuring long-term durability. Switch body shipped with legend plate; operator knob sold separately for customization.
