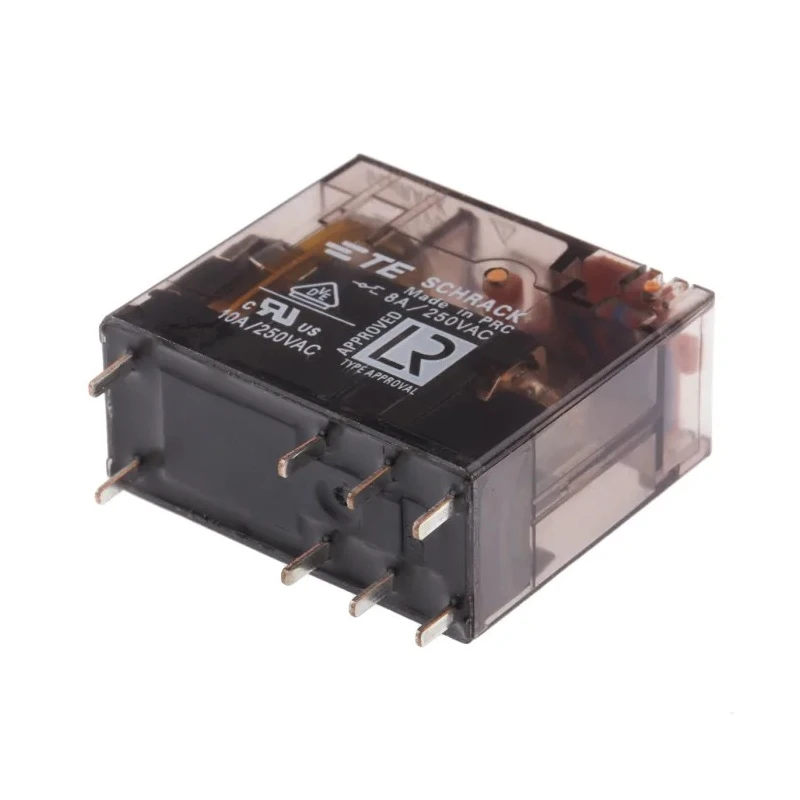

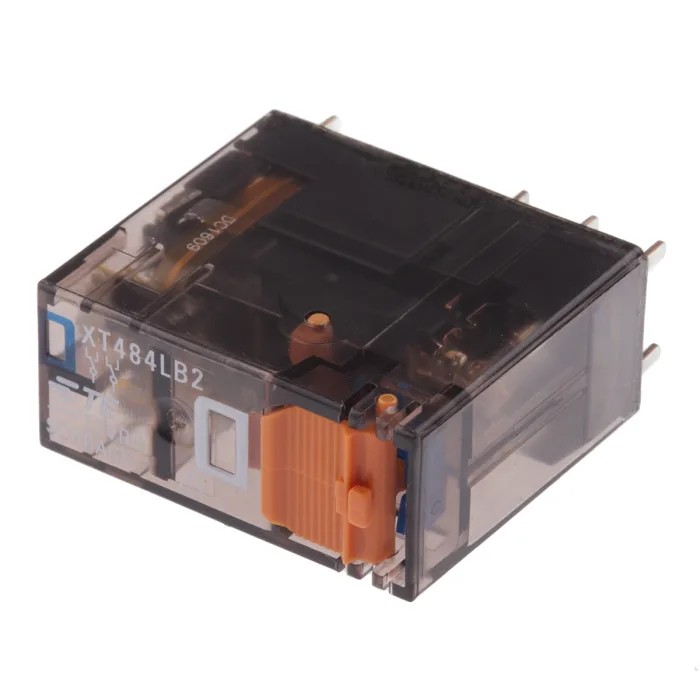

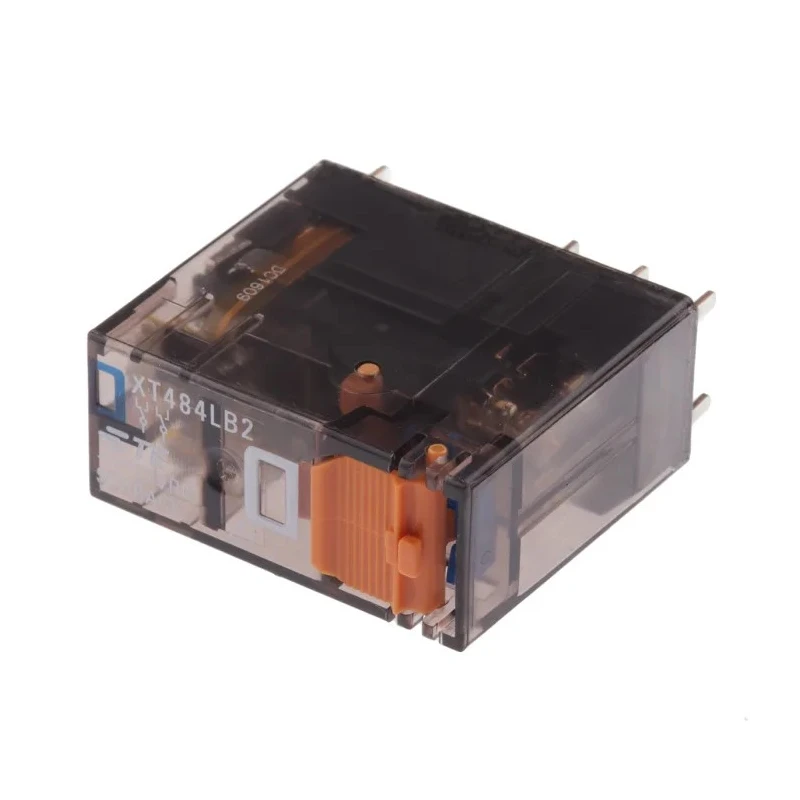

TE Connectivity XT Series PCB Power Relay 12V DC Coil 8A Switching Current DPDT XT484LB2 1887212-3

TE Connectivity XT484LB2 1887212-3 PCB Power Relay features a 12V DC coil and an 8A switching current configured as a Double Pole Double Throw (DPDT) relay. Designed in the XT series, this relay offers reliable, high-quality performance necessary for industrial and mechanical engineering applications. Its plug-in interface and through-hole terminal type make it ideal for PCB mounting in various electronic assemblies.

The relay is constructed with silver nickel alloy contact material providing excellent electrical conductivity and durability. It supports switching power of up to 2kVA and an operating AC voltage of 400V AC. With a coil resistance of 360Ω and coil power of 400mW, the relay ensures efficient energy usage while maintaining robust switching capabilities.

Engineered to withstand harsh environments, it operates reliably within a temperature range of -40°C to 70°C. The device adheres to stringent IEC, RoHS, UL, and VDE standards assuring safety and quality compliance. Its reinforced insulation and protection class II rating (VDE 0700) further enhance safety in practical applications.

Typical uses include panel boards, mechanical engineering tasks, and integration into Tyco standard RT sockets. Additionally, the product packaging is recyclable, aligning with sustainable manufacturing practices.

Coil voltage of 12V DC suitable for low voltage control circuits. Double Pole Double Throw (DPDT) contact configuration for versatile switching operations. Switching current rated at 8A with switching power up to 2kVA. Compact dimensions with length 29mm, width 13.7mm, height 26.7mm for PCB mounting.

Constructed with silver nickel alloy contacts ensuring durable electrical conductivity. Operating temperature range from -40°C to 70°C for industrial and mechanical use. Coil resistance of 360Ω with coil power rating of 400mW for energy efficient operation.

Complies with IEC, RoHS, UL, and VDE standards for safety and environmental compliance. Interface plug-in relay design with reinforced insulation and protection class II (VDE 0700). Suitable for use in panel boards, mechanical engineering applications, and Tyco standard RT sockets.
