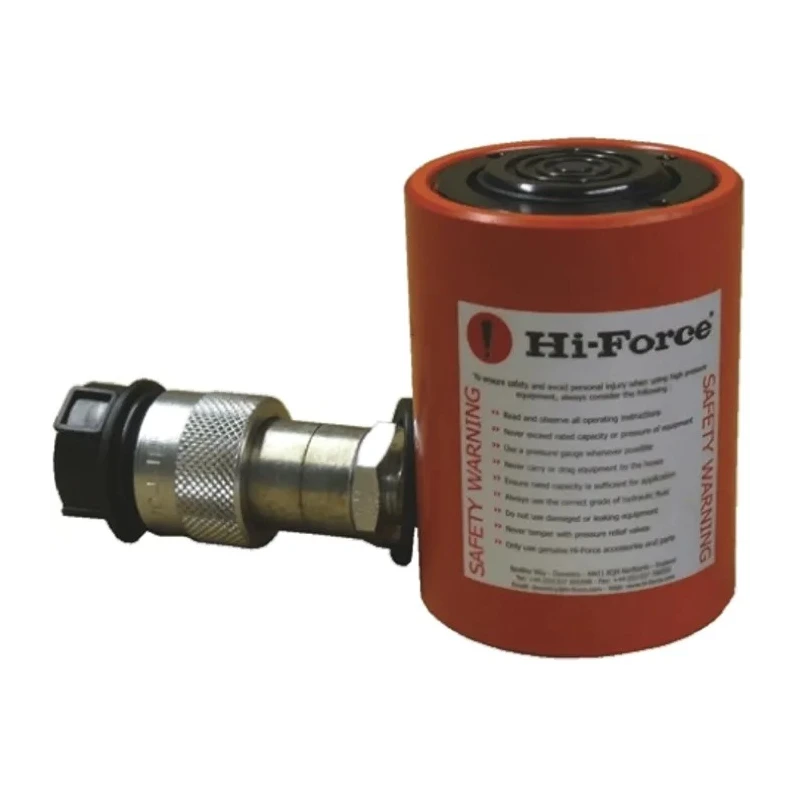

Hi-Force Portable Low Height Hydraulic Cylinder Single Acting 10 t Capacity 40 mm Stroke Length HLS101

Hi-Force HLS101 Portable Low Height Hydraulic Cylinder is a high quality single acting hydraulic cylinder designed for demanding industrial, mechanical, and fluid power applications.

With a lifting capacity of 10 tonnes and a stroke length of 40 mm, it is ideal where minimal collapsed height is a critical requirement for lifting, levelling, or pushing tasks in confined spaces or low clearance environments.

The cylinder is manufactured from high strength alloy steels, ensuring a minimum safety factor of 3:1, offering reliable and safe operation in industrial and workshop conditions.

The piston rods are chrome-plated to resist corrosion, and non-metallic bearings combined with pressure-activated anti-extrusion seals provide excellent wear resistance, low friction, and high side load capacity, enhancing longevity and performance.

The design incorporates heavy duty return springs to assist full piston retraction and steel stop rings to further withstand side loads and restrain the piston at full extension.

All port connections are 3/8 inch NPT and include a high flow, quick release, female half coupler as standard, facilitating easy setup and operation with compatible hydraulic pumps.

Technical specifications such as maximum operating pressure of 10,000 psi (approximately 700 bar), oil capacity of 58 cm³, closed and extended heights of 95 mm and 135 mm respectively, along with a compact 70 mm outside diameter make this cylinder suitable for a wide range of industrial, construction, manufacturing, and maintenance tasks.

Its weight of 2.4 kg makes it a portable yet robust solution, designed and made in the United Kingdom to high quality standards. Manufactured from high strength alloy steels ensuring durability and high safety factor. Low collapsed height design ideal for lifting, levelling, or pushing in confined spaces.

Chrome-plated piston rods and anti-extrusion seals provide corrosion resistance and reliability. Heavy duty return springs and steel stop rings enhance side load capacity and piston retention. 3/8 in. NPT port connections with high flow, quick release female half coupler included.

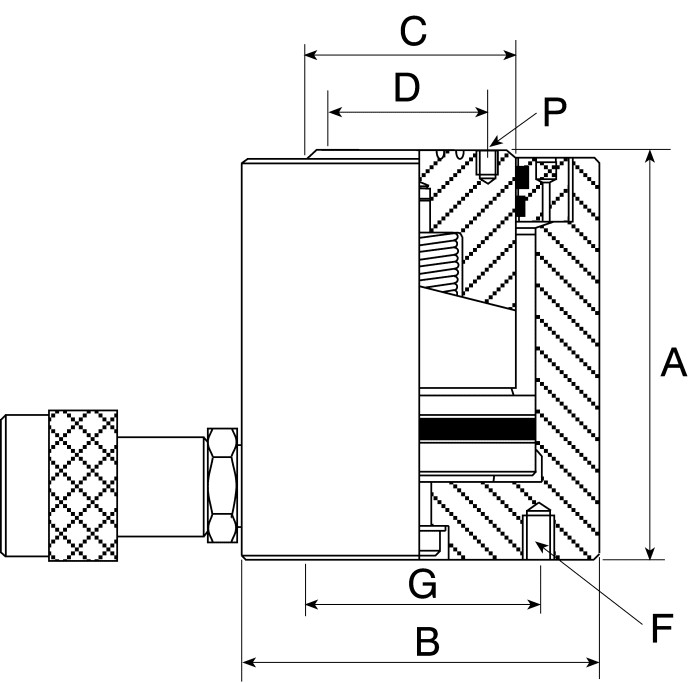

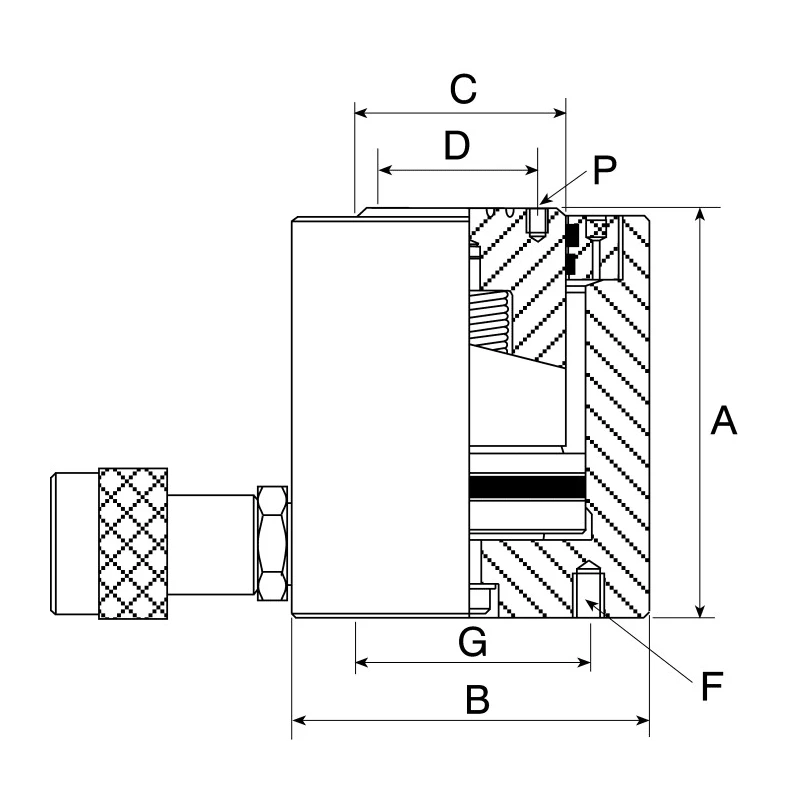

Individually tested to 125% working pressure with test certificate supplied. Maximum operating pressure of 10,000 psi and oil capacity of 58 cm³. Compact dimensions: 40 mm stroke, 95 mm closed height, 135 mm extended height, 70 mm diameter.

Lightweight at 2.4 kg for easy portability.

This Hi-Force hydraulic cylinder is engineered for demanding industrial environments including manufacturing, fluid power systems, construction, maintenance, and laboratory hydraulic applications.
