SMC Pneumatic Piston Rod Cylinder 500 mm Stroke Length Double Acting Basic Mount CP96

Free Delivery in India | Lowest Global Shipping Charges

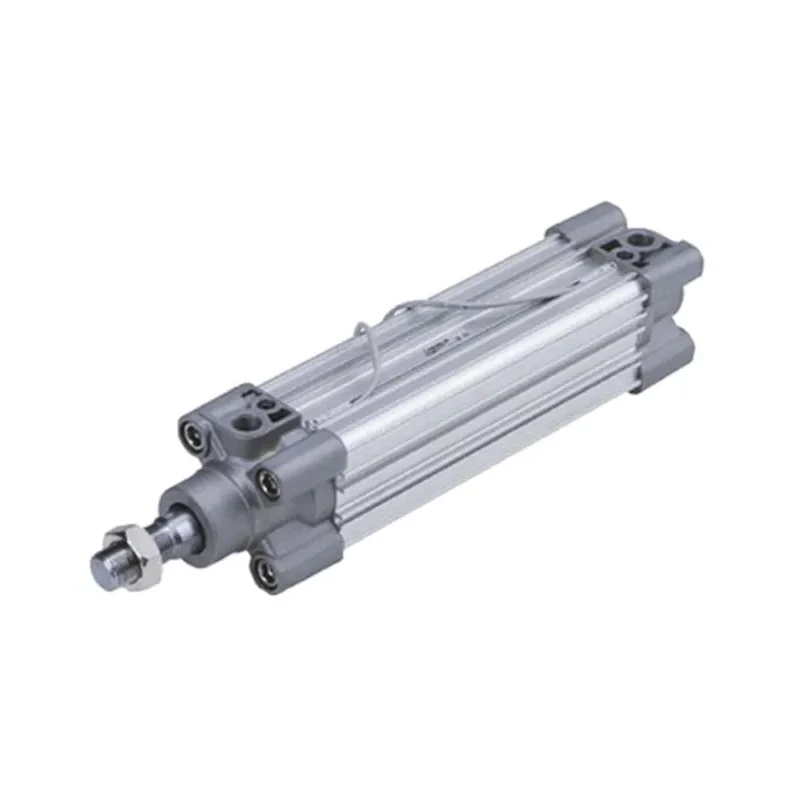

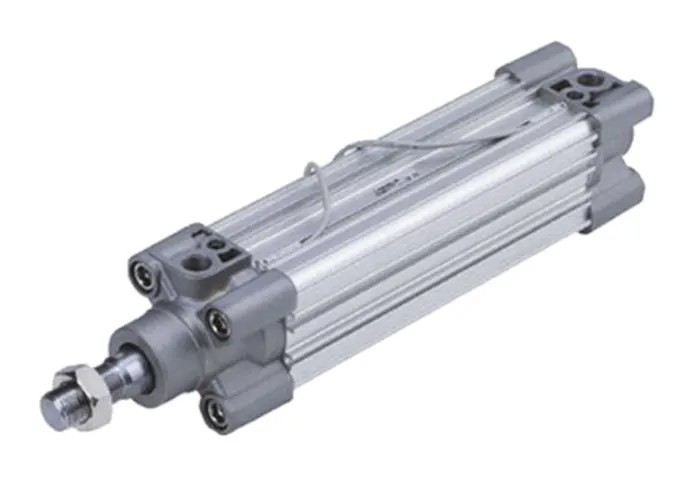

SMC Pneumatic Piston Rod Cylinder 500 mm Stroke Length Double Acting Basic Mount CP96



Category Pneumatic Piston Rod Cylinders Brand SMC Condition New

Specifications

Country of Origin	China
Brand	SMC
Body Material	Cushion Seal Holder, Cushion Ring B, Aluminium Alloy (Cylinder Tube), Rod End Nut, Carbon Steel (Piston Rod), Cushion Ring A, Aluminium Die Cast (Rod Cover), Tie-Rod, Steel (Tie Rod Nut)
Length	679mm
Model	CP96
Mount Type	Basic
Series	CP96
Maximum Operating Temperature	+70°C
Stroke Length	500mm
Rod Type	Single
Action Type	Double Acting
Standards/Approvals	4414
Cushioning Type	Air Cushion
Piston Rod Gender	Male
Piston Rod Thread Standard	Metric
Piston Rod Thread Size	M16 x 1.5

Key Features

Provides precise linear actuation for industrial automation systems.
Equipped with air and bumper cushioning to reduce end-of-stroke impact forces.
Constructed with aluminum alloy cylinder tube and carbon steel piston rod for durability.
Supports piston speeds up to 1000 mm/s for fast operation.
Features M16 x 1.5 metric male thread for standard rod-end connections.
Designed for basic mount installations with tie-rod construction for secure integration.
Operates reliably up to a maximum temperature of +70°C.
Conforms to ISO 15552 dimensional standards ensuring compatibility with pneumatic systems.

Product Description

SMC CP96 Pneumatic Piston Rod Cylinder is engineered for efficient linear actuation in industrial automation and mechanical applications. Featuring a 500 mm stroke length and a total length of 679 mm, this double acting cylinder utilizes compressed air for reciprocating piston movement, offering bidirectional force control.

Its basic mount configuration facilitates straightforward integration into frames and machinery, while air and bumper cushioning reduce impact forces at travel ends, enhancing operational life. The cylinder tube is made of lightweight aluminum alloy, complemented by a carbon steel piston rod that ensures axial load transmission and mechanical robustness.

The piston rod uses a single male design with metric thread size M16 x 1.5, enabling compatibility with standard rod-end attachments. Rated for piston speeds up to 1000 mm/s, this unit supports fast operational cycles. The device is suitable for environments up to +70°C, meeting pneumatics industry temperature standards.

This cylinder conforms to ISO 15552 and is equipped with tie rods made of steel and other durable components such as aluminium die cast rod covers and cushion seal holders, making it reliable and long-lasting.

Common industrial applications include pick-and-place actuators in assembly lines, clamping and pressing sequences in mechanical cells, motion control via valve islands, transfer systems requiring controlled deceleration, and fixture actuation in testing rigs and jigs.

Provides precise linear actuation with a 500 mm stroke length. Double acting operation delivers bidirectional force control. Lightweight aluminum alloy cylinder tube reduces mass. Carbon steel piston rod supports durable axial load transmission.

Standard M16 x 1.5 metric male threaded piston rod. Supports piston speeds up to 1000 mm/s. Basic mount design for easy frame integration. Air and bumper cushioning reduce end-of-stroke impacts. Operating temperature rating up to +70°C.
