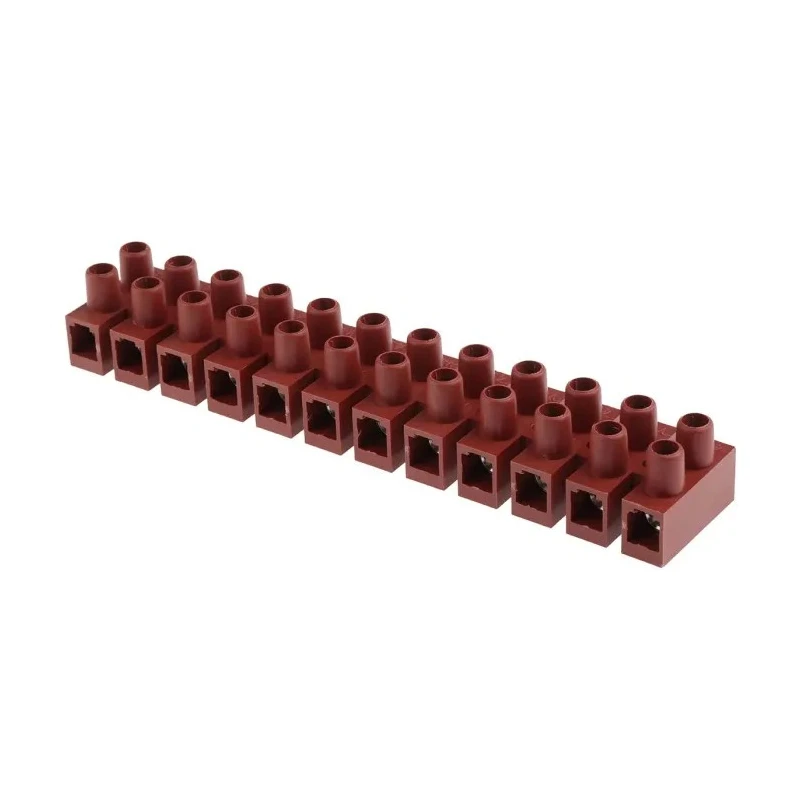

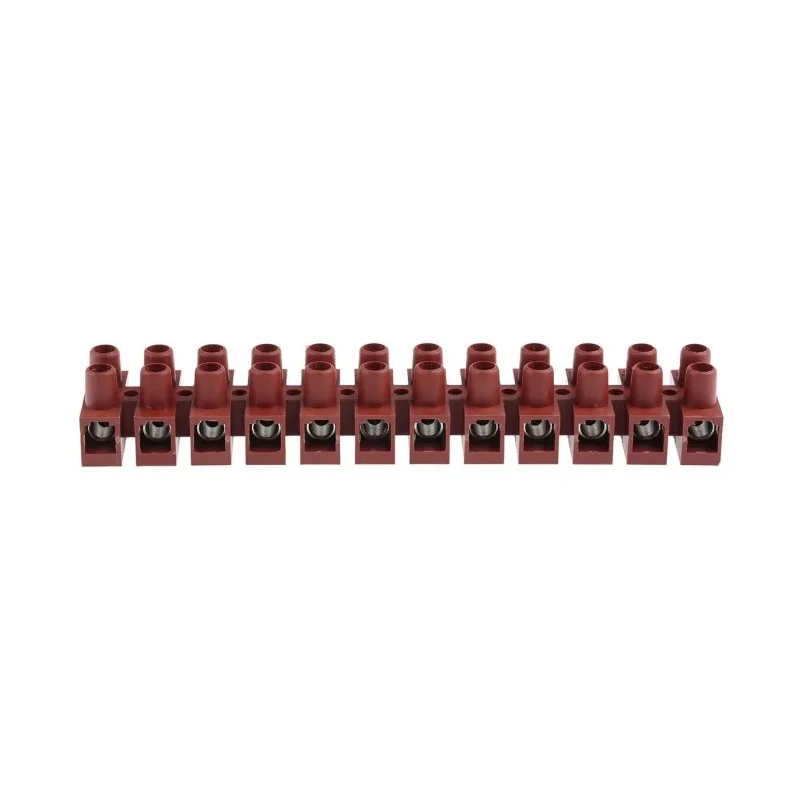

RS PRO Disconnect Terminal Block 12-Way 16mm² Wire 76A Screw Terminal 450V Italy 910-6788

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Disconnect Terminal Block 12-Way 16mm² Wire 76A Screw Terminal 450V Italy 910-6788

Name: RS PRO Disconnect Terminal Block 12-Way 16mm² Wire 76A Screw Terminal 450V Italy 910-6788
Brand: RS PRO
SKU: 136388



Category Terminal Blocks Brand RS PRO Condition New

Specifications

Country of Origin	Italy
Voltage	450V
Brand	RS PRO
Material	Fibreglass Reinforced Polyamide
Colour	Brown, Red
Current	76A
Model	910-6788
Number Of Ways	12
Gender	Female
Mount Type	Surface
Termination Type	Screw
Maximum Operating Temperature	150°C
Wire size	16mm²
Pitch	14.5mm
Contact Plating	Nickel
Cable CSA	16mm²
• Glow wire resistance test temp	GWT750°C in 2 sec (EN60695-2-11)
• Terminal screw material	white zinc plated steel

Key Features

Constructed from fibreglass reinforced polyamide for enhanced durability.
Features screw termination ensuring secure electrical connections.
Designed with a pitch of 14.5mm and surface mount type for versatile installation.
Operates safely up to 150°C maximum temperature.
Non-fused with nickel-plated contacts and white zinc plated steel screws.
Available in brown and red colors for easy circuit identification.
Customizable length, allowing the block to be cut down as needed.
Glow wire resistant up to 750°C for 2 seconds according to EN60695-2-11.

Product Description

RS PRO 910-6788 Disconnect Terminal Block provides a robust and dependable solution for wire-to-wire electrical connections. Manufactured in Italy from fibreglass reinforced polyamide (PA6.6), the terminal block combines durability with performance optimized for industrial and domestic applications.

Designed for 12-way connections, this surface mount terminal block accommodates 16mm² wire sizes and supports a current rating of 76A at 450V. Its screw-type termination provides secure contact, while the nickel plating on contacts and white zinc plated steel screws ensure corrosion resistance and reliable conductivity.

The terminal block features a pitch of 14.5mm and is available in brown and red colors, aiding in circuit differentiation. The block can be cut to length as required, providing flexibility for modular electrical installations.

With a maximum operating temperature of 150°C and glow wire resistance temperature of 750°C for 2 seconds (EN60695-2-11), it meets tough safety standards essential for electrical component reliability and safety.

This non-fused disconnect terminal block is ideal for industrial, commercial, and residential electrical systems including lighting, HVAC controls, and power supply wiring. Its simplicity and secure screw connection make it suitable for semi-permanent installations requiring dependable performance.

Constructed using fibreglass reinforced polyamide for high durability. 12-way configuration supports large wiring needs efficiently. Screw termination ensures lasting, stable electrical contacts. Operates at a maximum temperature of 150°C seamlessly.

Glow wire resistance test passed at 750°C for enhanced safety. Contact plating with nickel improves oxidation resistance. Offers adaptability by allowing length trimming for custom fits. Color-coded in brown and red for differentiated wiring tasks.

Engineered for use in domestic, industrial, and HVAC electrical applications.
