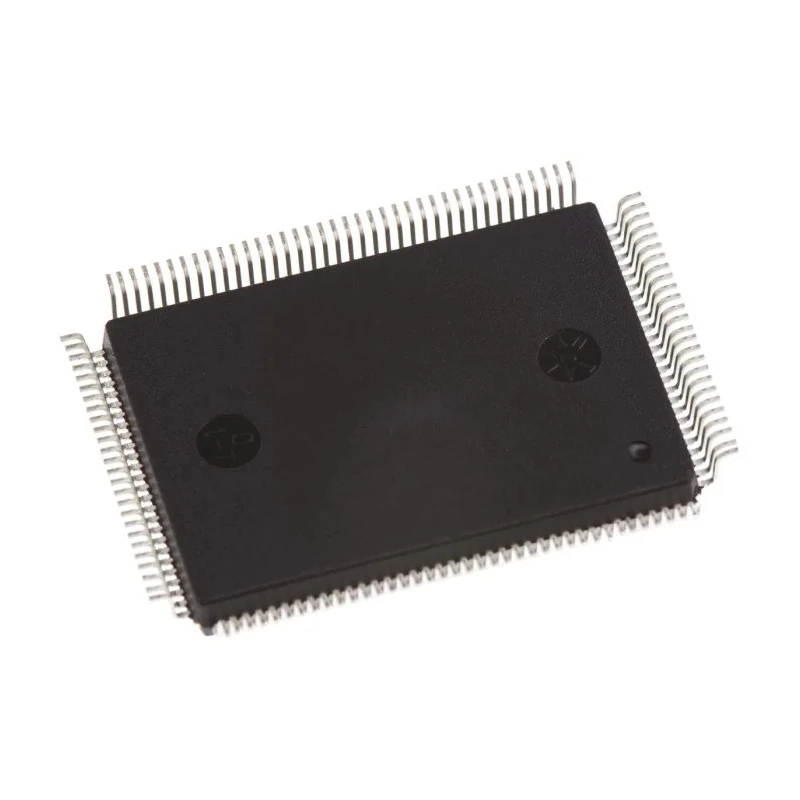

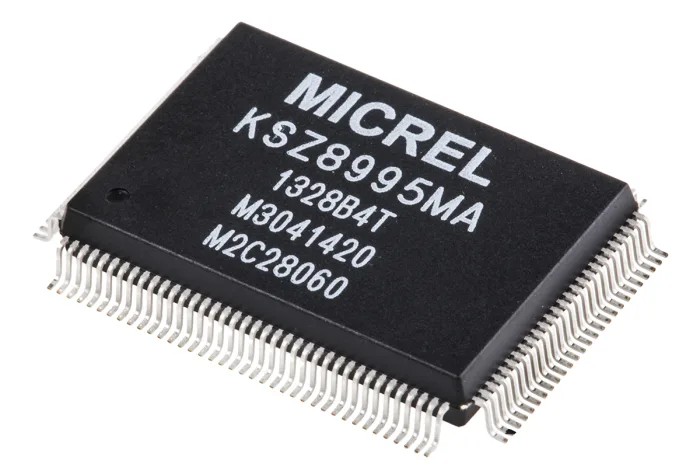

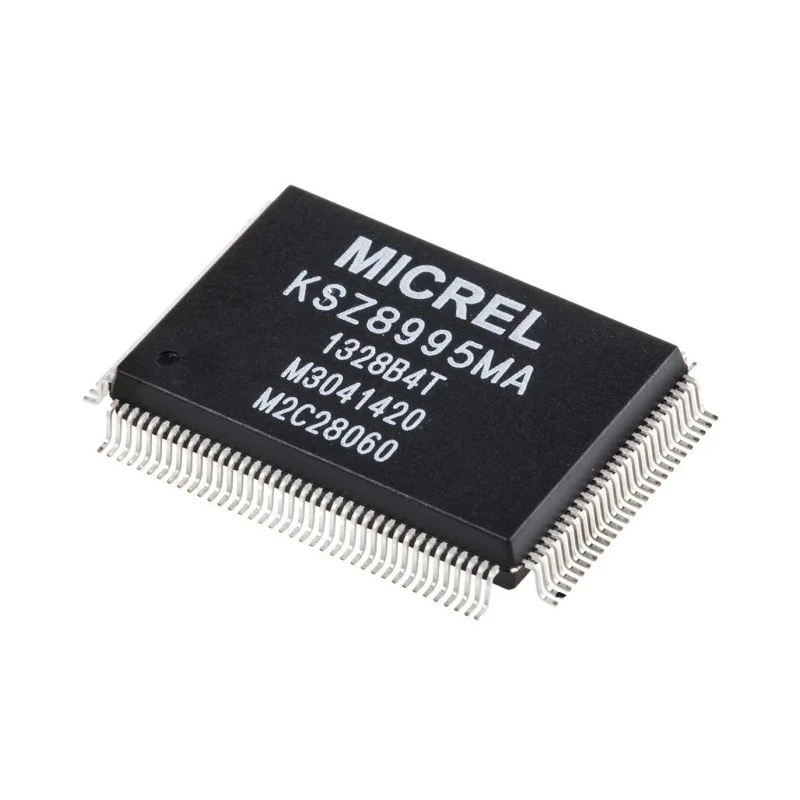

Microchip 128-Pin PQFP Ethernet Switch IC 1.8 V 100 Mbps 5 Ports SNI MDI MDC SPI EEPROM MII KSZ8995MA

Free Delivery in India | Lowest Global Shipping Charges

Microchip 128-Pin PQFP Ethernet Switch IC 1.8 V 100 Mbps 5 Ports SNI MDI MDC SPI EEPROM MII KSZ8995MA

Name: Microchip 128-Pin PQFP Ethernet Switch IC 1.8 V 100 Mbps 5 Ports SNI MDI MDC SPI EEPROM MII KSZ8995MA
Brand: Microchip
SKU: 136294
Price: 14.08 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	3.4mm
Length	20mm
Model	KSZ8995MA
Width	14mm
Mount Type	Surface
Number Of Ports	5
Maximum Operating Temperature	70°C
Package Type	PQFP
Sub Type	Switch
Minimum Operating Temperature	0°C
Interface Type	SNI, MDI, MDC, SPI, EEPROM, O, MII
Standards/Approvals	RoHS
Pin Count	128
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.8V
Maximum Data Rate	100Mbps
Loopback Mode	MII Local Loopback Support
Standard Supported	IEEE, IEEE 802.3u, IEEE 802.1Q
Number of Transceivers	5

Key Features

Supports multiple interfaces including SNI, MDI, MDC, SPI, EEPROM, and MII protocols.
Compliant with IEEE 802.3u and IEEE 802.1Q Ethernet standards.
Features 5 integrated transceivers enabling efficient Ethernet switching.
Operates within 0°C to 70°C temperature range with RoHS compliance.
Compact 128-pin PQFP package, dimensions approximately 20 mm length, 14 mm width, and 3.4 mm height.
Designed for surface mount applications with reliable performance.
Supports MII Local Loopback for enhanced testing capabilities.
Maximum supply voltage rating of 3.3 V and minimum operating voltage of 1.8 V.

Product Description

Microchip KSZ8995MA Ethernet Switch IC is a high-performance, fully integrated 5-port solution for 10/100Base-TX Ethernet switching applications. It features a 128-pin PQFP surface mount package measuring 20 mm by 14 mm with a height of 3.4 mm, making it suitable for compact industrial and commercial embedded systems.

This Ethernet switch IC supports a broad range of interface types including Serial Network Interface (SNI), Medium Dependent Interface (MDI), Management Data Clock (MDC), SPI, EEPROM, and Media Independent Interface (MII), enabling versatile connectivity options for modern networking equipment.

Conforming to IEEE 802.3u and IEEE 802.1Q standards, the KSZ8995MA delivers reliable 100 Mbps communication performance with integrated support for 5 transceiver ports. The device supports MII local loopback mode facilitating in-circuit diagnostics and testing.

It operates over a temperature range of 0°C to 70°C and is compliant with RoHS environmental standards, ensuring suitability for a wide array of electronic equipment in industrial, data communication, and networking sectors.

The IC is powered by supply voltages ranging from a minimum of 1.8 V to a maximum of 3.3 V, providing design flexibility for various low-voltage applications. The package's surface mount design supports automated manufacturing processes, increasing production efficiency.

Supports multiple interfaces including SNI, MDI, MDC, SPI, EEPROM, and MII protocols. Conforms to IEEE 802.3u and IEEE 802.1Q standards. Includes five integrated transceivers for multi-port Ethernet switching. Operates within 0°C to 70°C with standard RoHS compliance.

Compact 128-pin PQFP package with precise dimensions. Supports MII local loopback mode for testing and diagnostics.

This Ethernet Switch IC is ideal for industrial automation, networking hardware, telecommunications equipment, and embedded system designs requiring robust 10/100 Mbps switching capabilities.
