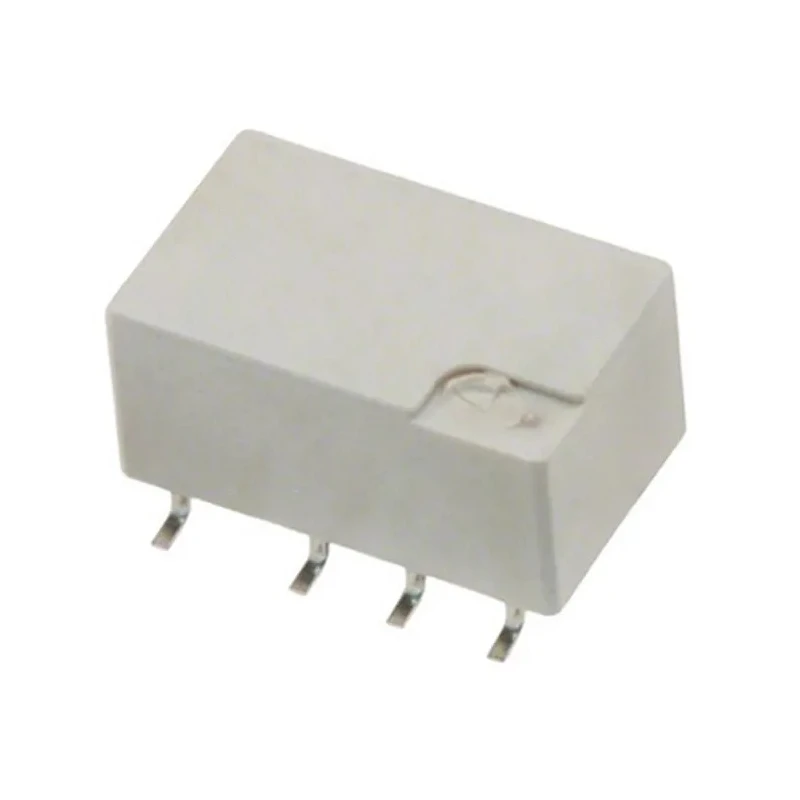

TE Connectivity Surface Signal Relay 3V DC Coil 2A DPDT IM01GR
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 5.65mm |
| Length | 10mm |
| Model | IM01GR |
| Width | 6mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | IM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 64Ω |
| Coil Voltage | 3V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 140mW |
| Switching Power | 100mW |
| TE Connectivity PCB Signal Relay, 12V dc Coil, 2A, DPDTBrand | TE Connectivity |
Key Features
- The relay features a slimline, compact design with dimensions 10mm x 6mm x 5.65mm.
- Coil power consumption is low at 140mW, supporting energy-efficient use.
- Gold plated bifurcated contacts ensure enhanced durability and electrical performance.
- The relay supports switching of up to 250V AC and 220V DC voltages.
- It operates reliably within a temperature range of -40°C to 85°C.
- Surface mount design with solder terminals facilitates easy PCB mounting.
- This relay is hermetically sealed with IP67 rating, providing robust protection against environmental factors.
- High dielectric surge capability and mechanical shock resistance up to 300G enhance product reliability in demanding conditions.
Product Description
TE Connectivity IM01GR surface signal relay is designed for demanding electronic switching with a 3V DC coil and 2A switching current configured as DPDT (Double Pole Double Throw). This ultra-compact relay measures just 10mm in length, 6mm in width, and 5.65mm in height, making it ideal for space-constrained circuit boards.
The relay features low coil power consumption at 140mW, contributing to energy-efficient operation. It includes gold plated bifurcated contacts for low contact resistance and enhanced durability. The device supports switching voltages of up to 250V AC and 220V DC, ensuring versatility across various electronic circuits.
Designed with surface mount solder terminals, the relay provides ease of assembly on printed circuit boards (PCB). Its construction includes a hermetically sealed body rated to IP67 standards, offering protection from dust and moisture and enabling reliable performance in harsh environments.
Key electrical and mechanical properties include a high insulation resistance greater than 10^9 ohms at 500V DC, a high dielectric surge capability meeting Telcordia GR 1089, FCC Part 68, and ITU-T K20,21,45 standards, and mechanical shock resistance up to 300G functional and 500G survival. These qualities make it suitable for use in telecommunications equipment, optical network terminals, office equipment, test and measurement tools, medical devices, and automotive applications.
The relay has a slimline and low profile design measuring 10 x 6 x 5.65 mm. Contacts are bifurcated and gold plated for superior conductivity and reliability. It is hermetically sealed with an IP67 rating for environmental protection.
Features high mechanical shock resistance up to 300G functional and 500G survival. Exhibits insulation resistance greater than 10⁹ Ω at 500V DC. Meets high surge capability standards including Telcordia GR 1089 and FCC Part 68.
Operates reliably from -40°C to 85°C ambient temperature. Coil resistance is 64 Ω supporting stable coil operation. Implements surface mount solder terminal type for PCB assembly. Complies with RoHS environmental standards.
This product is engineered for industrial, telecommunications, medical, and automotive sectors requiring reliable and compact Signal Relays. Explore our comprehensive electronics category for additional TE Connectivity relays and signal conditioning devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports a switching current of up to 2A.
This model has dimensions of 10mm in length, 6mm in width, and 5.65mm in height.
The relay operates with a coil voltage of 3V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The relay supports switching voltages of up to 250V AC and 220V DC.
The coil power consumption is low at 140mW, contributing to energy-efficient operation.
It operates reliably within a temperature range of -40°C to 85°C.
This relay employs a surface mount design with solder terminals for easy PCB assembly.
The relay exhibits an insulation resistance greater than 10^9 ohms at 500V DC.
It is hermetically sealed with an IP67 rating, providing robust protection against dust and moisture.
The contacts are made of gold plated material for enhanced durability and electrical performance.
This relay complies with RoHS environmental standards and meets high surge capability standards including Telcordia GR 1089 and FCC Part 68.
