JST PUD Series Straight Surface PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded BM20B-PUDSS-TFC(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PUD Series Straight Surface PCB Header 20 Contacts 2 mm Pitch 2 Row Shrouded BM20B-PUDSS-TFC(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	BM20B-PUDSS-TFC(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PUD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features a straight, shrouded surface mount design for secure connections.
Constructed with polyamide housing and copper alloy contacts plated with tin for durability.
Rated for 3 amp current and operating voltage up to 250 volts.
Operates over a temperature range from -25°C to 85°C suitable for varied environments.
Incorporates a locking mechanism with audible click for secure mating with sockets.
Designed for solder termination with male contact gender for reliable PCB connection.
Manufactured in Japan ensuring high quality and performance standards.

Product Description

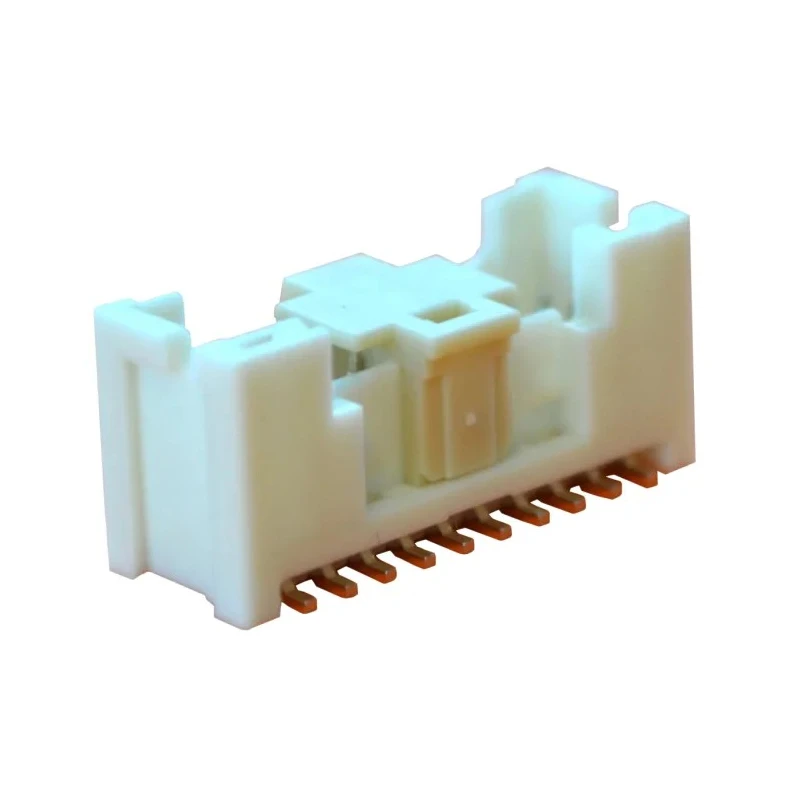

JST BM20B-PUDSS-TFC(LF)(SN) PUD Series Straight Surface PCB Header is a high-quality wire-to-board connector designed to deliver dependable electrical performance with 20 contacts arranged in a dense 2-row configuration at 2 mm pitch.

The header features a polyamide housing and copper alloy contacts with tin plating, providing robust mechanical strength and corrosion resistance. Its shrouded design offers protection and secure locking ensuring stable connectivity in industrial and commercial electronics assembly.

Rated for a current of 3 A and maximum operating voltage of 250 V, this PCB header supports standard electrical requirements. It tolerates temperatures from -25°C to 85°C, making it suitable for environments with temperature variations and mechanical vibrations.

The locking mechanism produces an audible click sound upon connector mating, providing tactile feedback for assembly confidence. The surface mount type facilitates easy PCB integration with solder termination for durable connections. The straight orientation and male contact gender suitability are compatible with various wire-to-board applications.

Manufactured in Japan, this product meets stringent quality standards for use in electronic components, power connectors, telecommunications, industrial machinery, and other demanding applications requiring reliable electrical interfacing.

Features a straight, shrouded surface mount design for secure connections. Constructed with polyamide housing and copper alloy contacts plated with tin for durability. Rated for 3 amp current and operating voltage up to 250 volts.

Operates over a temperature range from -25°C to 85°C suitable for varied environments. Incorporates a locking mechanism with audible click for secure mating with sockets. Designed for solder termination with male contact gender for reliable PCB connection.

Manufactured in Japan ensuring high quality and performance standards.

This JST PCB header is ideal for use in electronics manufacturing, industrial control systems, communication equipment, and other electrical device assembly. For additional PCB header options and detailed specifications, explore the full range within the Electronics & Electricals category at EnvMart.

Explore more products in our PCB Headers category.
