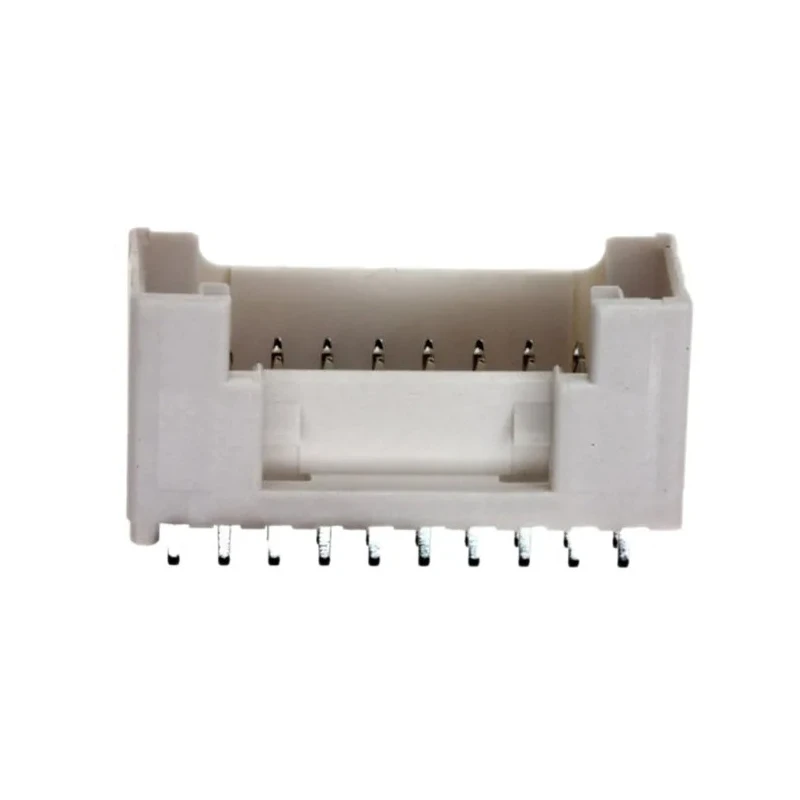

JST PUD Series Straight Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded B20B-PUDSS-1(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PUD Series Straight Through Hole PCB Header, 20 Contacts, 2 mm Pitch, 2 Row, Shrouded B20B-PUDSS-1(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	JST
Orientation	Straight
Current	3A
Model	B20B-PUDSS-1(LF)(SN)
Mount Type	Through Hole
Housing Material	Glass Filled Nylon
Contact Material	Copper Alloy
Series	PUD
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector features a compact high density double row design for stable contact performance in high vibration environments.
It uses glass filled nylon housing and copper alloy contacts with tin plating for durability.
The locking mechanism produces an audible click when mated with the socket ensuring secure connections.
This PCB header is rated for 3 A current and 250 V voltage with a temperature range from -25°C to 85°C.
The male contact gender connector supports through-hole solder termination for robust mounting.
The product is made in Japan, ensuring high manufacturing quality and reliability.
Suitable for industrial electronic applications requiring durable and reliable PCB connectors.

Product Description

JST B20B-PUDSS-1(LF)(SN) is a high-quality PCB Header Connector from the PUD Series featuring a 2.0 mm pitch, 20 contacts arranged in two rows, and a shrouded, straight through hole design. This wire-to-board connector type utilizes a glass filled nylon housing material and copper alloy contacts coated with tin plating, providing excellent electrical connectivity and durability even in demanding environments.

The connector supports a rated current of 3 A and voltage up to 250 V, with operational temperature limits ranging from -25°C to 85°C. Its locking mechanism ensures a secure and audible click when mated, enhancing connection reliability even in high vibration industrial or manufacturing settings.

The male contact gender and solder termination type facilitate strong mounting on PCBs via through hole technology. Manufactured in Japan, this JST part guarantees premium quality consistent with industry standards, although it carries no specific certifications or approvals.

These PCB Header Connectors suit a vast range of industrial, electronic, and manufacturing applications requiring stable and durable wire-to-board connections. Their compact double row, high density design aids in space-saving layouts on circuit boards.

The connector features a compact high density double row design for stable contact performance in high vibration environments. Glass filled nylon housing improves mechanical strength and thermal resistance. Copper alloy contacts with tin plating provide reliable conductivity and corrosion resistance.

Locking mechanism ensures an audible click when mated, securing the connection. Rated for 3 A current and 250 V voltage, suitable for a wide range of electronic devices. Operating temperature range from -25°C to 85°C covers typical industrial environments.

Male contact gender with through hole solder termination provides strong PCB mounting. Explore more PCB Header Connectors and electronic components in the Electronics & Electricals category on EnvMart to find the best match for your industrial and commercial needs.
