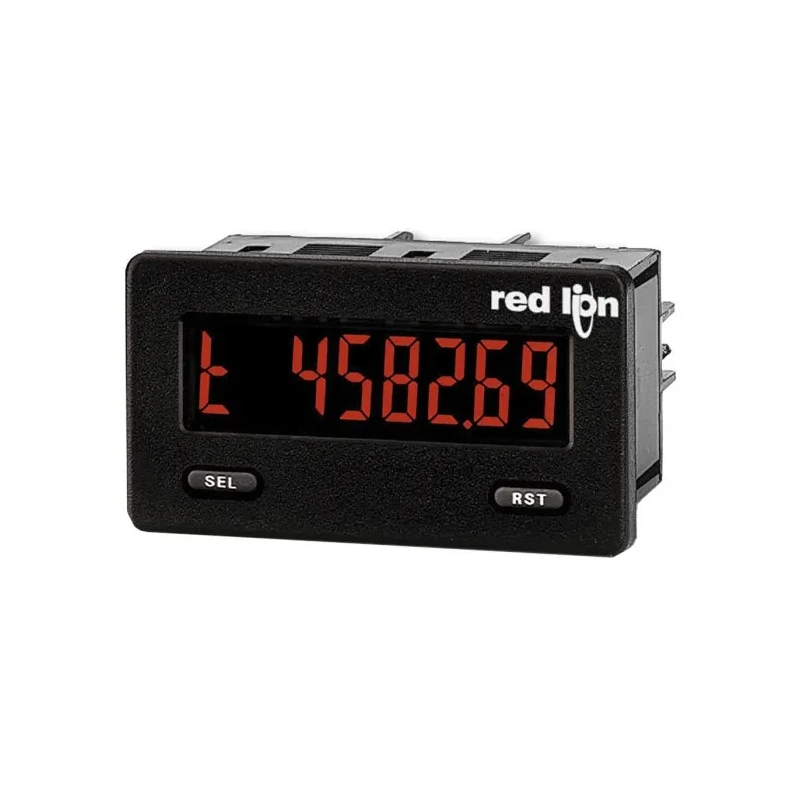

Red Lion Hour Meter 7 Digit LCD Panel Mount 28V DC, Screw Connection, No Reset CUB5T

Free Delivery in India | Lowest Global Shipping Charges

Red Lion Hour Meter 7 Digit LCD Panel Mount 28V DC, Screw Connection, No Reset CUB5T

Name: Red Lion Hour Meter 7 Digit LCD Panel Mount 28V DC, Screw Connection, No Reset CUB5T
Brand: Red Lion
SKU: 136106
Price: 242.46 USD
Availability: InStock



Category Panel Meters Brand Red Lion Condition New

Specifications

Country of Origin	United States
Display Type	LCD
Brand	Red Lion
Function	Hour Meter
Model	CUB5T
Connection Type	Screw
Depth	43.4mm
Mount Type	Panel Mount
Series	CUB5T
Maximum Operating Temperature	75°C
Number Of Digits	7
Digit height	11.7mm
Cutout Height	33mm
Cutout Width	68mm
Count Direction	Up
Maximum Supply Voltage	28V dc
Reset Method	No Reset
Red Lion CUB5, 8 Digit CounterBrand	Red Lion

Key Features

The hour meter features a 7-digit LCD display with 11.7mm digit height for clear readability.
It operates as a count up timer with no reset functionality for continuous monitoring.
The device supports a maximum supply voltage of 28V DC and can operate up to 75°C ambient temperature.
The meter is designed for panel mounting with precise cutout dimensions of 68mm width and 33mm height.
The front bezel is sealed to IP65 (face only), ensuring protection against dust and water ingress.
The connection type is screw for secure electrical contacts.
The meter depth from panel is 43.4mm for compact installation.
The product complies with Canadian and international safety standards including CSA and IEC certifications.

Product Description

Red Lion CUB5T Hour Meter is a high-precision, rugged electronic timer suited for industrial automation and process control environments. Featuring a clear 7 digit LCD with 11.7mm digit height, it provides accurate elapsed time measurement for equipment monitoring and maintenance scheduling. It operates from a 28V DC power supply using a screw connection type for reliable electrical interface.

The panel mount design allows seamless integration into control panels with cutout dimensions of 68mm width and 33mm height, while the unit’s depth is 43.4mm ensuring minimal panel space usage. The meter counts upward continuously without reset, providing persistent time tracking.

Constructed with a face-only IP65 sealed bezel, the CUB5T offers resistance against dust and water ingress, enhancing durability in harsh industrial environments. It can withstand operating temperatures up to 75°C, making it suitable for demanding installation conditions.

This hour meter complies with various standards including Canadian CSA 22.2 No. 61010-1, EN 61010-1, IEC 61010-1, and is certified under the IECEE CB Scheme. It is manufactured in the United States, ensuring high-quality production standards.

The 7 digit LCD display provides large, clear digits for easy monitoring. Panel mounting enables integration within existing industrial control systems. Screw type electrical connections ensure secure wiring. IP65 sealed front face protects against environmental contaminants.

Continuous count-up function with no reset capability enhances operational reliability. Wide operating temperature range up to 75°C supports various industrial climates. Certified to multiple international safety standards for compliance assurance.

Ideal for industrial automation, process control, electrical panels, and other applications requiring precise elapsed time measurement. Explore the full range of Panel Meters and automation control devices at EnvMart.
