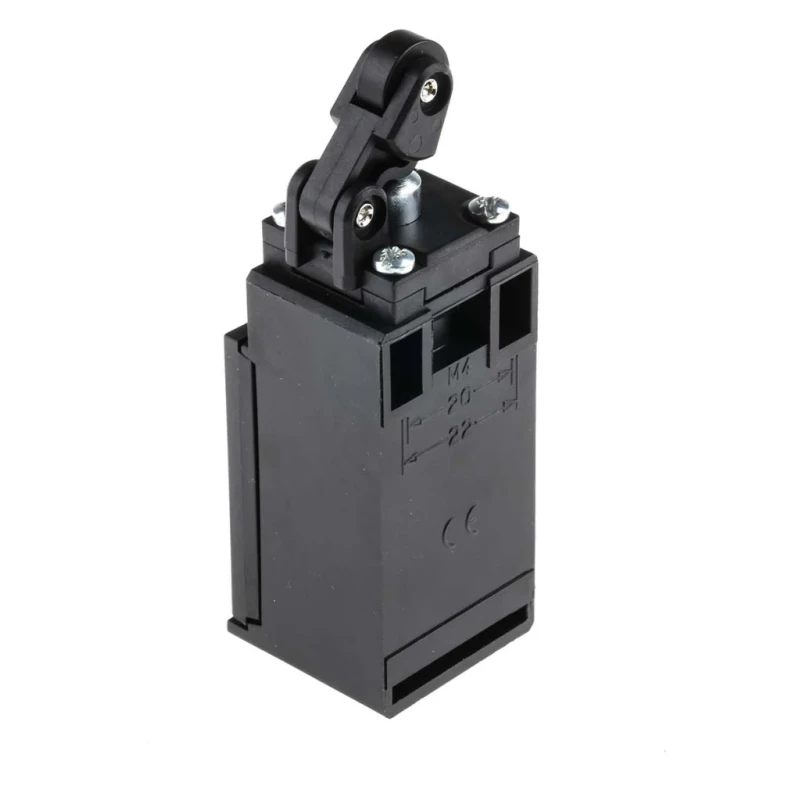

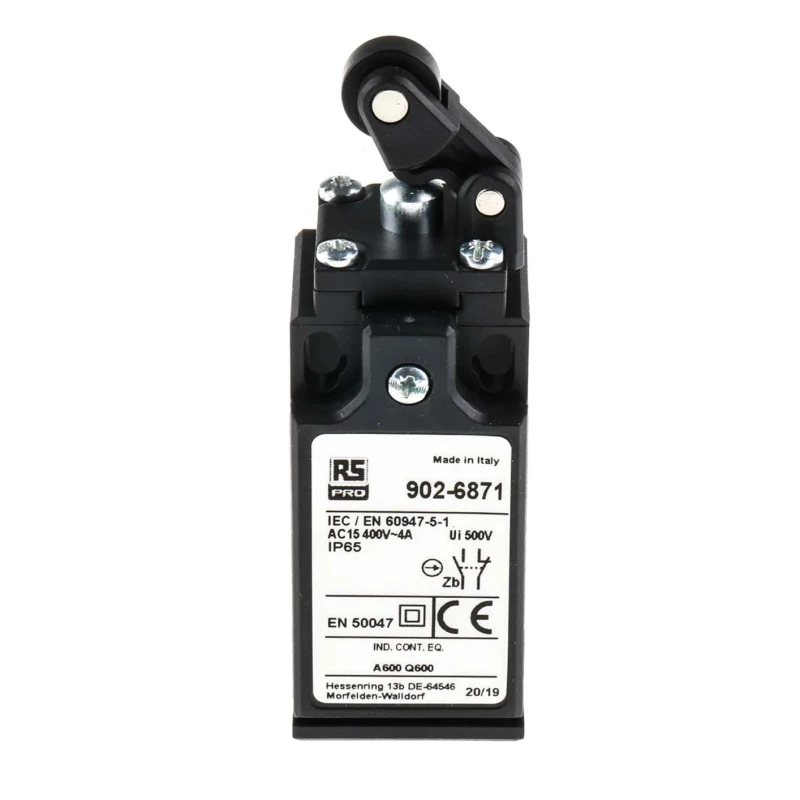

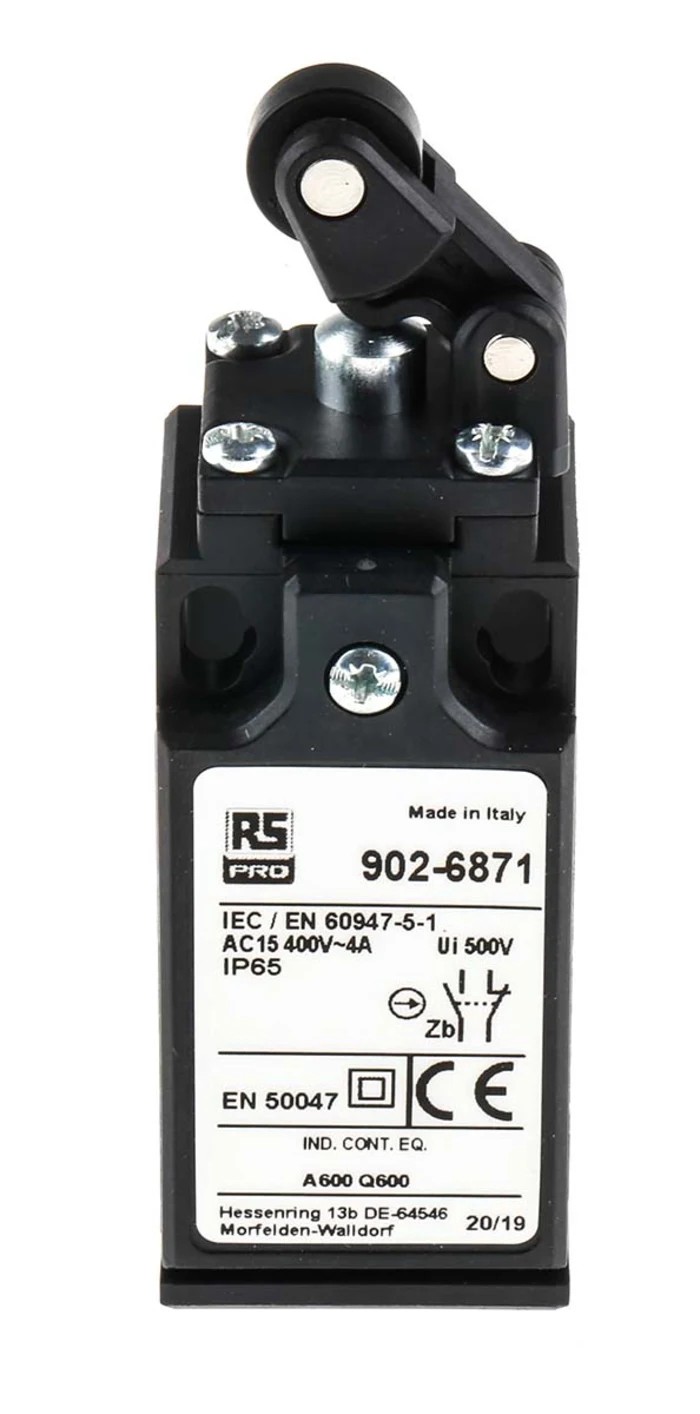

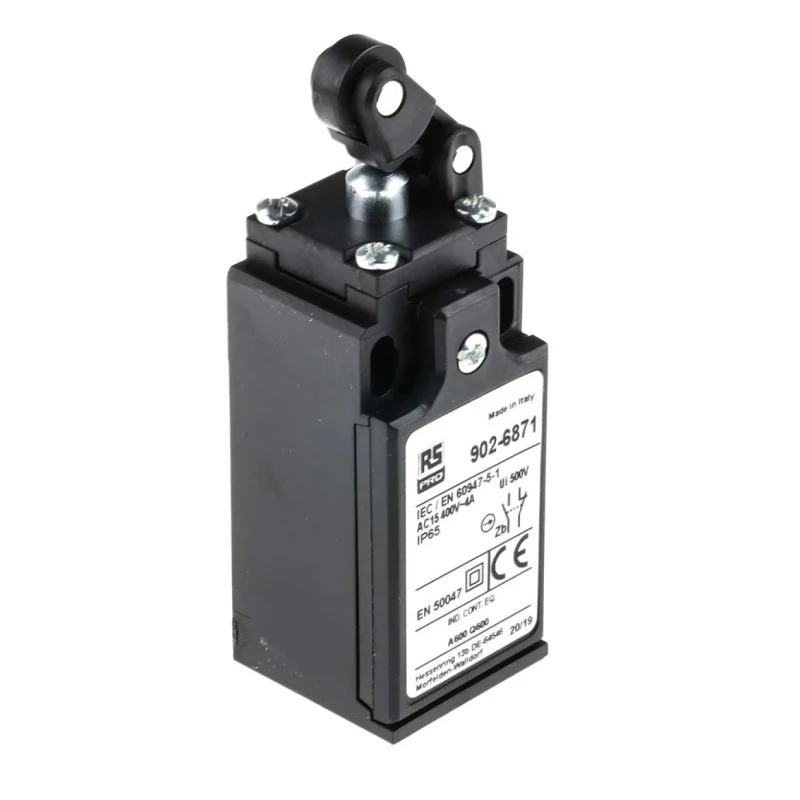

RS PRO Roller Lever Limit Switch 1 NO/1 NC, Fibreglass Reinforced Thermoplastic, IP65, 400V AC, 10A IP65
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Length | 30.3mm |
| Model | IP65 |
| Depth | 30mm |
| IP Rating | IP65 |
| Width | 92mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Cable |
| Standards/Approvals | EN, UL, RoHS, IMQ, IEC, CSA |
| Operating Force | 7N |
| Mechanical Life | 15000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 400V ac |
| Conduit Entry | M20 x 1.5 |
Key Features
- Durable fibreglass reinforced thermoplastic housing provides double insulation and flame retardancy.
- Rated IP65 for dust-tight and water jet protection, ensuring operation in harsh environments.
- Switch features both normally open and normally closed contacts for versatile control.
- Operates over temperature range of -25°C to +70°C with snap action contact type.
- Mechanical lifetime of at least 15 million operations ensures long-term reliability.
- Roller lever actuator with adjustable rotary arm for precise triggering at limits.
- Suitable for controlling motors, conveyors, robotic arms and safety applications.
- Compact dimensions of 30.3 mm length by 92 mm width and 30 mm depth for easy installation.
Product Description
RS PRO IP65 Roller Lever Limit Switch model IP65 is a robust industrial snap action limit switch designed for controlling mechanical equipment and automation processes. Constructed with a fibreglass reinforced thermoplastic housing, this device features double insulation and UL-VO flame retardant properties, offering enhanced durability and safety.
This limit switch incorporates a roller lever actuator with a rotary adjustable arm, facilitating precise positional control. It supports a switching current of 10 A at 400 V AC and 250 V DC, making it suitable for switching industrial loads efficiently and reliably. The snap action contact mechanisms provide consistent, repeatable operation with a mechanical life rated at 15 million operations.
Rated IP65 for protection against dust ingress and water jets, this switch is suited for tough industrial environments. It operates within a broad temperature range from -25°C up to 70°C and is mounted vertically using an M20 x 1.5 conduit entry for secure installation and wiring. The compact form factor (30.3 mm L x 92 mm W x 30 mm D) ensures it fits in constrained spaces.
Durable fibreglass reinforced thermoplastic housing with double insulation. Robust snap action contacts in 1 NO/1 NC configuration. Rated for 10 A switching current at 400 V AC and 250 V DC. IP65 rated protection for dusty and wet industrial settings.
Roller lever actuator with adjustable arm for precision control. Mechanical life of 15 million operations for long-term reliability. Vertical mounting orientation with cable terminal type wiring. Compliant with EN, UL, RoHS, IMQ, IEC, and CSA standards.
Ideal for automation, manufacturing, and mechanical control applications.
Manufactured in Italy, this RS PRO limit switch offers professional-grade quality and reliability demanded by industrial automation and electrical control systems. It is suitable for applications such as motor control, safety switches, conveyor stop/start, robotic arms, and garage door operation.
Explore more RS PRO products and industrial Limit Switches on EnvMart for comprehensive automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This limit switch supports a maximum switching current of 10 A.
It operates within a temperature range of -25°C to 70°C.
It features a roller lever actuator with an adjustable rotary arm for precise triggering.
The compact dimensions are 30.3 mm in length, 92 mm in width, and 30 mm in depth.
It is rated IP65, providing protection against dust ingress and water jets.
The mechanical life is rated at 15 million operations, ensuring long-term reliability.
It has a contact configuration of 1 normally open (NO) and 1 normally closed (NC).
The housing is made of fibreglass reinforced thermoplastic, providing double insulation and flame retardancy.
It is designed for vertical mounting using an M20 x 1.5 conduit entry.
It complies with EN, UL, RoHS, IMQ, IEC, and CSA standards.
It supports a switching voltage of 400 V AC and 250 V DC.
It is suitable for controlling motors, conveyors, robotic arms, and safety applications.
