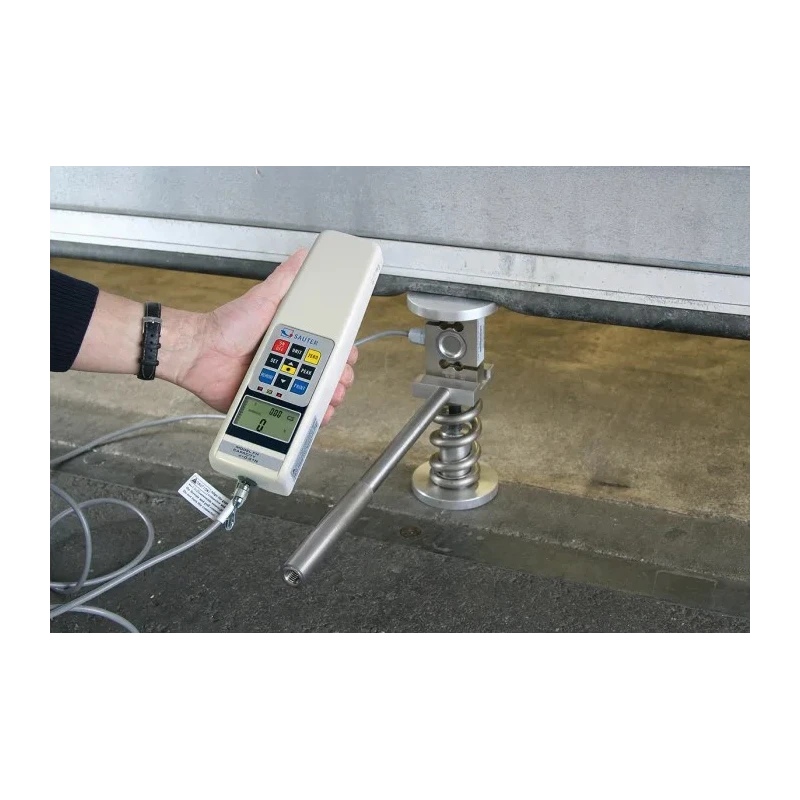

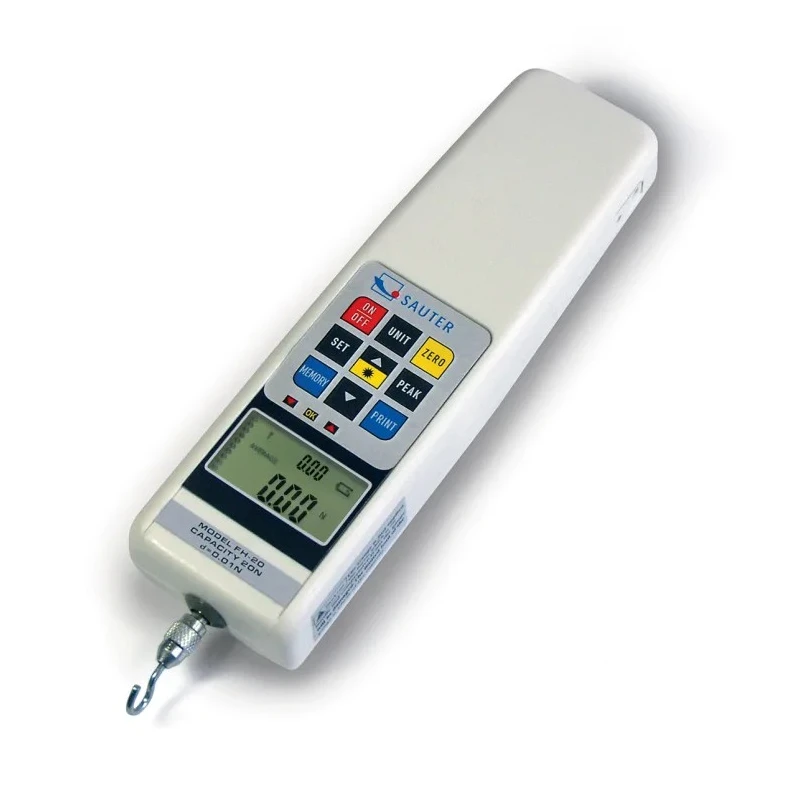

Sauter Digital FH Series Force Gauge with 2000 Hz Sampling Rate, RS232 Output, Resolution 0.001 N FH 2

The Sauter FH 2 digital force gauge is a high-precision instrument designed for measuring both tractive and compressive forces with professional accuracy and speed. Featuring a resolution of 0.001 N and a broad sampling rate of 2000 Hz, it records force measurements with an accuracy of ±0.5%. The device outputs data via RS232 interface, facilitating seamless integration with data logging and quality control systems.

This force gauge is powered by a rechargeable battery paired with a Type C plug, ensuring convenient operation and charging. Its compact design measures 230mm in length, 66mm in width, and 35mm in height, with a weight of approximately 640 grams, making it easy to handle during testing procedures.

The instrument's display is rotatable through 180°, allowing clear visibility of readings in Newtons, kilograms, and pounds. It includes 10 memory spaces enabling storage of peak force values for review. The overload protection safeguards the device against values exceeding 150% of the maximum load capacity, enhancing durability.

The FH 2 incorporates advanced features such as peak hold for capturing maximum force, track function for continuous monitoring, and a limit value function beneficial for quality control inspections. Its mini statistics package aids in analyzing force measurements efficiently.

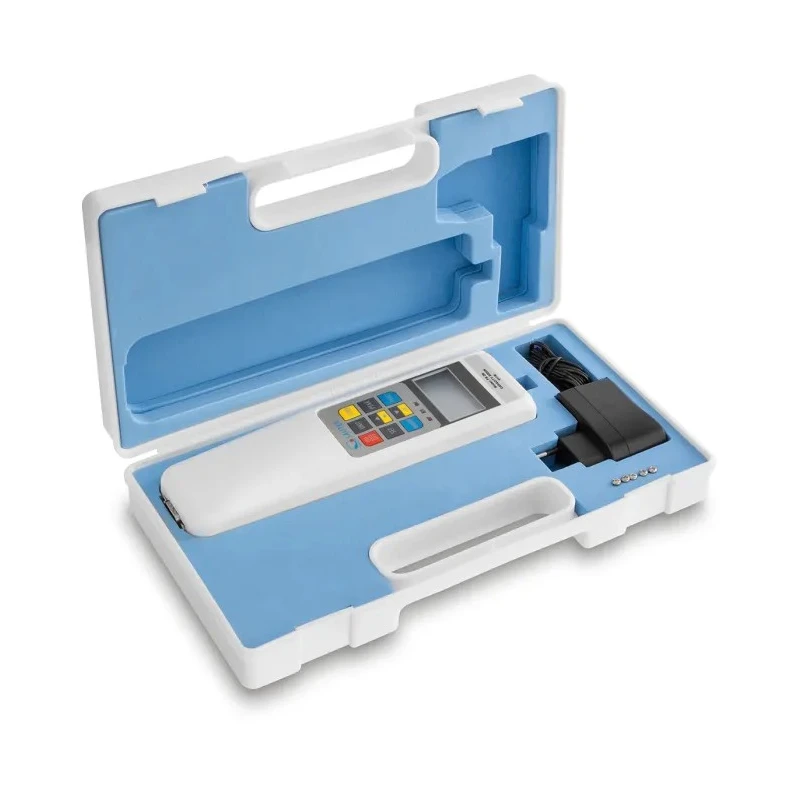

Designed for use with all Sauter test stands, the device comes with a comprehensive set of accessories including 6 standard attachments such as hooks and pressure plates, all housed in a durable transport case. This makes it ideal for laboratory, industrial, manufacturing, and quality assurance applications.

The device operates reliably across a temperature range from 10°C to 40°C and complies with ISO standards for measurement instruments. The product is manufactured in China. Provides accurate measurement with resolution of 0.001 N and accuracy of ±0.5%.

Equipped with rechargeable battery and Type C plug for convenient power supply. Compact and ergonomic design with dimensions 230mm length, 66mm width, and 35mm height. Includes 10 memory spaces for peak value entry and displays force in N, kg, and lb with rotatable display.

Overload protection up to 150% of final value ensures device durability and safety. Features peak hold and track functions to record maximum and continuous force measurements. Limit value function supports quality control of specimen samples.

Suitable for measuring compressive and tractive forces in industrial and laboratory settings. Supplied with mains adapter, 6 standard attachments including hook and pressure plates, and transport case. Operates reliably in temperatures ranging from 10°C to 40°C.
