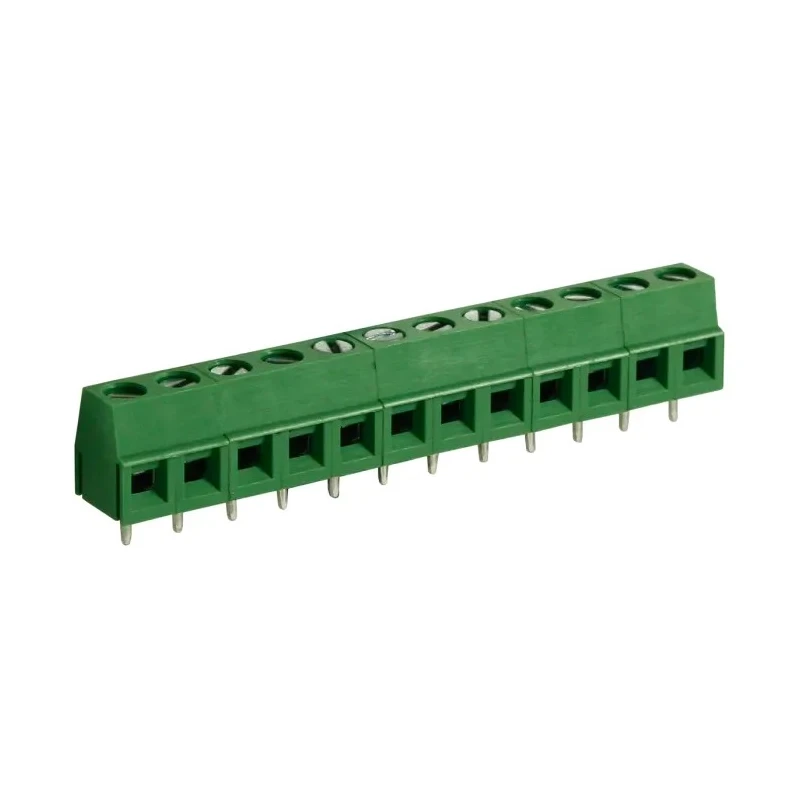

RS PRO PCB Terminal Block, 12-Contact, 5 mm Pitch, 1 Row, Green Polyamide Housing, Screw Wire Connection, 300V 10A 897-0875

Free Delivery in India | Lowest Global Shipping Charges

RS PRO PCB Terminal Block, 12-Contact, 5 mm Pitch, 1 Row, Green Polyamide Housing, Screw Wire Connection, 300V 10A 897-0875

Name: RS PRO PCB Terminal Block, 12-Contact, 5 mm Pitch, 1 Row, Green Polyamide Housing, Screw Wire Connection, 300V 10A 897-0875
Brand: RS PRO
SKU: 135930



Category Pluggable Terminal Blocks Brand RS PRO Condition New

Specifications

Country of Origin	China
Voltage	300V
Brand	RS PRO
Colour	Green
Orientation	Straight
Current	10A
Length	60mm
Model	897-0875
Depth	10mm
Width	8.1mm
Housing Material	Polyamide
Series	RS PRO
Number of Rows	1
Pitch	5mm
Number of Contacts	12
Minimum Wire Size mm²	0.33mm²
Maximum Wire Size mm²	3.3mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	22AWG
Wire Connection Method	Screw
RS PRO PCB Terminal Block, 12-Contact, 5 mm Pitch, 1 RowBrand	RS PRO

Key Features

Constructed with green polyamide housing for flame retardancy.
Enables secure screw wire connection method compatible with 0.33 to 3.3 mm² wire sizes.
Supports wires from 12 AWG to 22 AWG, suitable for solid and stranded wires.
Compact dimensions with length of 60 mm, width 8.1 mm, and depth 10 mm.
Features M2.5 nickel plated steel captive screws for durable fixing.
Designed with a straight orientation and guided pin alignment for ease of installation.
Housing material complies with UL94-V0 standards for fire resistance.
Ideal for industrial, electronic assembly, and PCB manufacturing applications.

Product Description

RS PRO 897-0875 PCB Terminal Block is a green polyamide 12-contact terminal block with a 5 mm pitch and a single row configuration. Engineered for optimal performance, it supports up to 10 amps current and operates at a voltage of 300 volts, ensuring robust electrical connections on printed circuit boards (PCB).

The terminal block features professional rising clamp screw terminals with M2.5 nickel plated steel captive screws, providing secure and reliable wire fixing. It accepts wires sized between 0.33 mm² and 3.3 mm² (12 AWG to 22 AWG), accommodating both solid and stranded wire types with straight orientation and guided pin alignment facilitating easy installation.

Constructed from flame retardant PA66 polyamide housing that meets UL94-V0 standards, the terminal block is designed with a low profile 10 mm height and compact dimensions of 60 mm length, 8.1 mm width, and 10 mm depth. This configuration is ideal for space-constrained PCB layouts in industrial, manufacturing, electronic assembly, HVAC controls, and laboratory equipment applications.

The RS PRO series ensures manufacturing quality and consistency, making this terminal block a trusted component for electrical and electronic design engineers. It does not come with additional standards or approvals but is suitable for versatile industrial electronic component needs.

Constructed with green polyamide housing for flame retardancy. Supports screw-based wire connection method for secure fixing. Compatible with wire sizes from 0.33 to 3.3 mm² (12 AWG to 22 AWG). Rated for 10A current and 300V voltage operation.

Compact design with 60 mm length, 8.1 mm width, and 10 mm depth. M2.5 nickel plated steel captive screws provide durability. Straight orientation with guided pin alignment ensures accurate PCB mounting. Low profile 10 mm height design ideal for space-limited applications.

Manufactured in China as part of RS PRO quality series.
