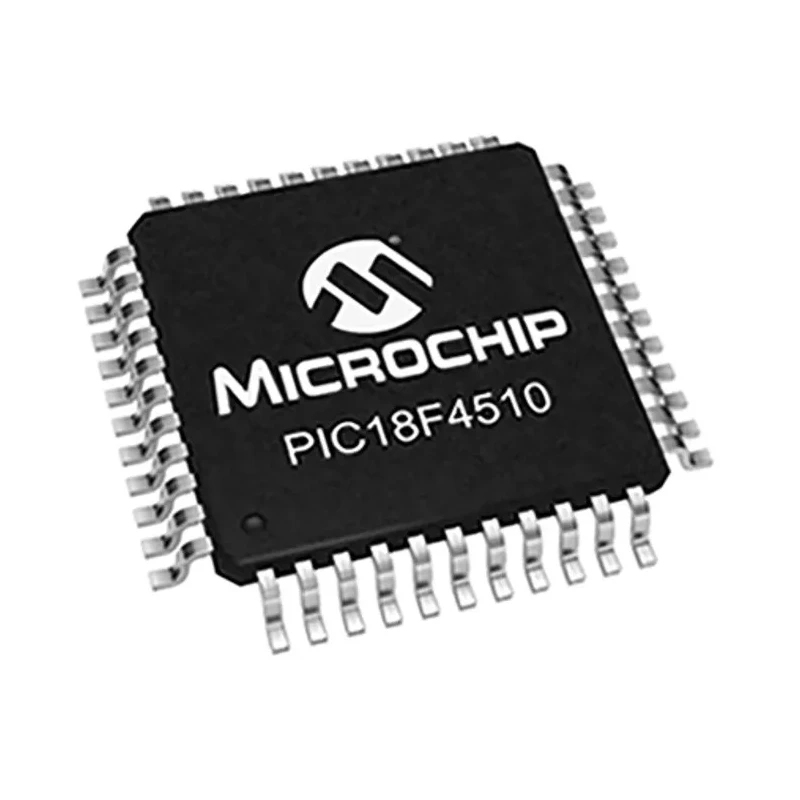

Microchip PIC18F 8-Bit Microcontroller 40 MHz 32 kB FLASH 44-Pin TQFP PIC18F4510-I/PT

Microchip PIC18F4510-I/PT is an advanced 8-bit PIC microcontroller designed for high-performance embedded applications. Operating at a maximum clock frequency of 40 MHz, it offers 32 kB of FLASH program memory and 1.54 kB of RAM, housed in a compact 44-Pin Thin Quad Flat Package (TQFP) with approximate dimensions of 10 mm length, 10 mm width, and 1.05 mm height.

This microcontroller is based on the PIC18 architecture, featuring a 31-level hardware stack and a comprehensive instruction set of 75 commands, enabling efficient real-time processing. The device runs on a supply voltage between 2 V and 5.5 V with a maximum power dissipation of 1 watt, supporting energy-efficient design with nanoWatt technology to minimize power consumption during operation.

The PIC18F4510-I/PT is equipped with 33 programmable input/output pins, 13 channels of 10-bit analog-to-digital converters (ADCs), two analog comparators, and a suite of timers including one 8-bit and three 16-bit timers for precise timing operations. Communication peripherals include Master Synchronous Serial Port (MSSP) supporting SPI and I2C protocols, Enhanced Addressable Universal Synchronous Asynchronous Receiver Transmitter (EUSART), and Capture/Compare/PWM modules enhancing control capabilities.

Robust safety and reliability features such as Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), Extended Watchdog Timer (WDT), High/Low-Voltage Detection (HLVD), and Low-Voltage Programming (LVP) support reliable operation in industrial and harsh environments.

Operating between temperatures of -40°C to 85°C, this microcontroller is suitable for a variety of industrial, commercial, automotive, and embedded system development applications where dependable performance and energy efficiency are critical.

Its compact TQFP surface-mount package ensures easy PCB integration for modern designs. The product conforms to RoHS directives, highlighting commitment to environmental sustainability in manufacturing.

The microcontroller features a 31 level hardware stack and 75 instructions. It operates on 2 V to 5.5 V supply voltage range with a maximum power dissipation of 1 W. Includes 1.54 kB RAM, 33 programmable I/Os, and 13-channel 10-bit ADCs for diverse control and sensing tasks.

Supports multiple timers, enhanced PWM modules, and serial communication interfaces such as SPI and I2C. Equipped with nanoWatt technology for low power consumption in embedded systems. Operating temperature range is from -40°C to 85°C, suitable for industrial and commercial environments.

The device package is surface mountable TQFP with dimensions approximately 10 mm × 10 mm × 1.05 mm. Compliant with RoHS standards ensuring environmentally friendly manufacturing. Includes safety features such as Power-On Reset (POR), Brown-Out Reset (BOR), and Watchdog Timer (WDT).

Perfect for industrial control, embedded systems development, automotive, and communication applications. Explore more Microcontrollers and electronic components suited for your advanced embedded design projects in our Electronics & Electricals category at EnvMart.
