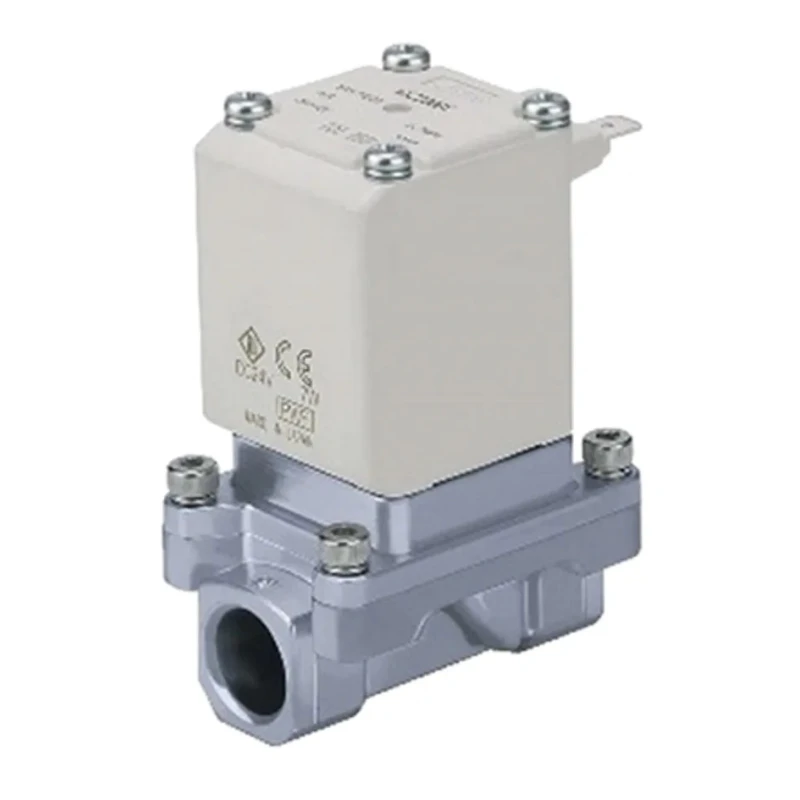

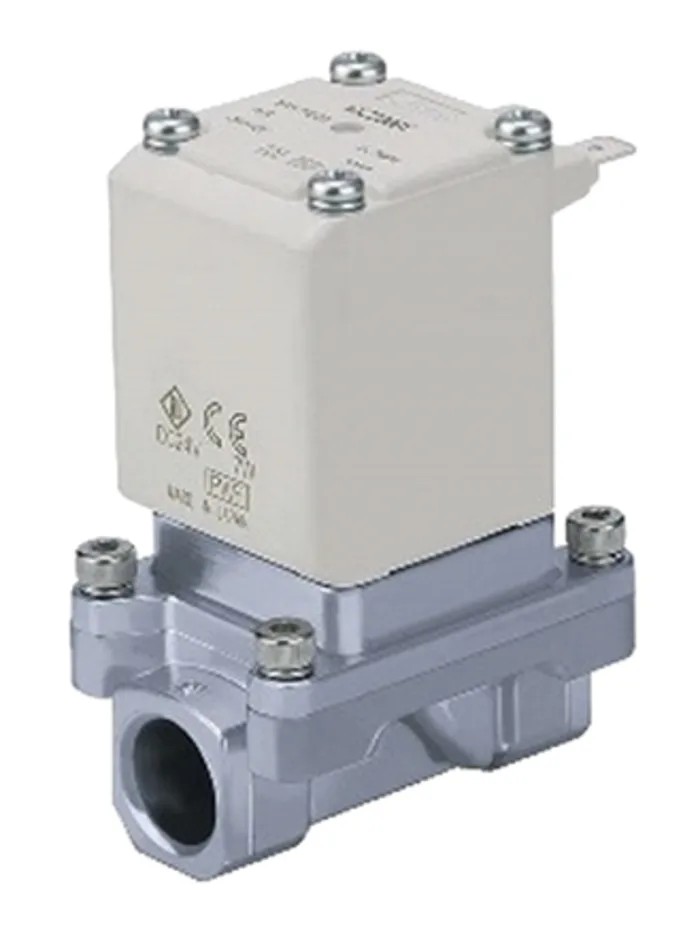

SMC Stainless Steel 2 Port Normally Closed Solenoid Valve, 15mm Orifice, 24V DC, 10 bar Max Pressure VXS245GGA

SMC VXS245GGA is a high-performance pilot operated solenoid valve featuring a 2-port normally closed (NC) design with a 15mm orifice diameter. It is constructed from stainless steel, ensuring excellent durability and resistance to harsh industrial environments. Designed for use with steam and heated water, this valve operates efficiently at 24V DC supply voltage with a maximum operating pressure of 10 bar.

The valve requires no fluid pressure for operation due to its zero pressure differential pilot solenoid design, enhancing reliability in fluid power and plumbing systems. Service life is extended to approximately 3 million cycles through an improved scraper design that resists contaminants and reduces wear.

SMC's VXS series incorporates design improvements including reduced internal air leakage, decreased power consumption, and quieter operation thanks to a rubber buffer design. The valve is also equipped with double guide rings, improving its resistance to foreign objects and prolonging armature durability.

Operating temperatures range from -20°C to 60°C, making this valve suitable for a wide variety of industrial applications including manufacturing automation, HVAC systems, and fluid control in commercial or laboratory environments.

This Solenoid Valve adheres to important industrial standards such as RoHS compliance, IP65 protection rating, IEC60534-2-3, ANSI/(NFPA) T3.21.3, UL94V-0, and a range of Japanese Industrial Standards (JIS B 8473, B 2005, B 8471, B 8472), ensuring consistent quality and safety.

Constructed with stainless steel for enhanced durability and corrosion resistance. Designed for pilot operated zero pressure differential usage with steam and heated water. Operates at 24V DC supply voltage with standardised DIN terminal connection.

Features minimal internal air leakage and reduced power consumption for efficiency. Quiet operation ensured by rubber buffer design reducing noise levels. Improved armature durability with double guide rings to resist foreign objects.

Operational temperature range from -20°C to 60°C suitable for varied industrial environments. Complies with multiple standards including RoHS, IP65, IEC60534-2-3, ANSI, UL94V-0, and JIS series. Ideal for industrial, manufacturing, HVAC, and fluid power control systems.
