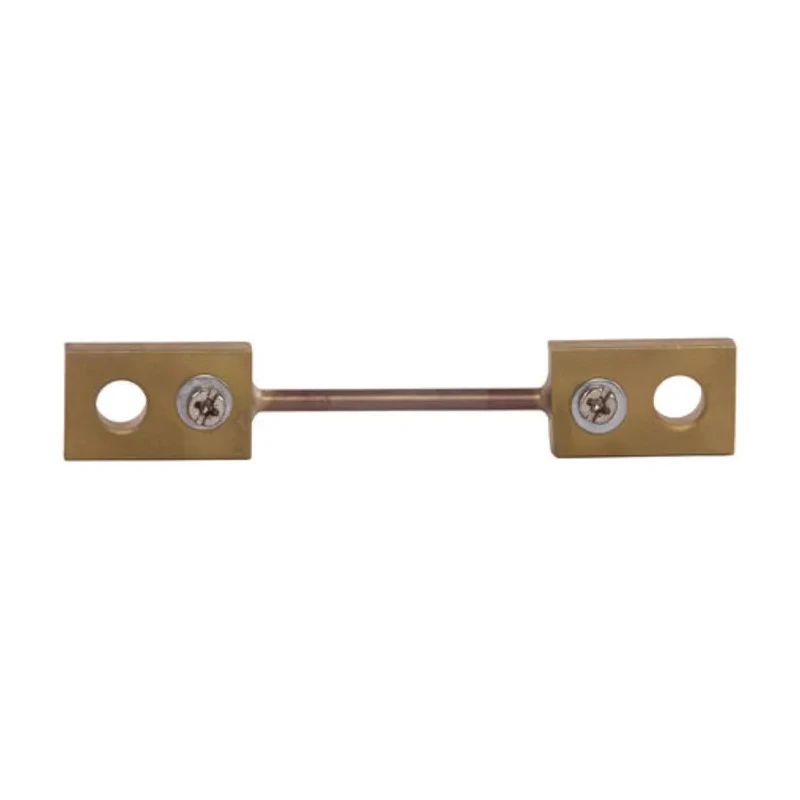

Sifam Tinsley Brass Ended Shunt 40A Max 75mV ±0.5% Accuracy YN01-10751WS000000

Sifam Tinsley YN01-10751WS000000 Brass Ended Shunt is a precision electrical component designed for industrial and laboratory use to measure DC currents up to 40 amperes with a maximum output voltage of 75 millivolts and an accuracy of ±0.5%. This shunt provides a reliable and precise voltage drop that corresponds proportionally to the current flowing through it, enabling accurate measurement by moving coil ammeters or other control devices.

The construction features brass-ended terminals which enhance electrical connectivity and mechanical robustness, making it suitable for demanding industrial and automation environments. Its compact design facilitates installation in compact control panels or on DIN rails where multiple electrical measuring instruments are used.

This shunt is widely used for current monitoring, overload protection, and process control applications in electrical automation, manufacturing plants, and industrial instrumentation setups. It is part of the reliable Kappa series from Sifam Tinsley, offering consistent performance and durability.

The shunt’s output voltage of 75mV is standard for many ammeter indicators, ensuring compatibility with a variety of moving coil instruments. It extends the current measurement capabilities of devices originally designed for lower currents by providing an intermediate, accurately scaled measurement input.

Accurate DC current measurement with ±0.5% tolerance. Durable brass-ended construction for secure electrical connections. Outputs a stable 75mV voltage proportional to current. Compatible with moving coil ammeters and control systems.

Manufactured in India under strict quality controls. Kappa series part number YN01-10751WS000000.

This product is ideal for industrial process control, electrical automation, laboratory instrumentation, and power monitoring systems. It supports the extension of measuring ranges of existing meters, enhancing precision in current measurement tasks.
