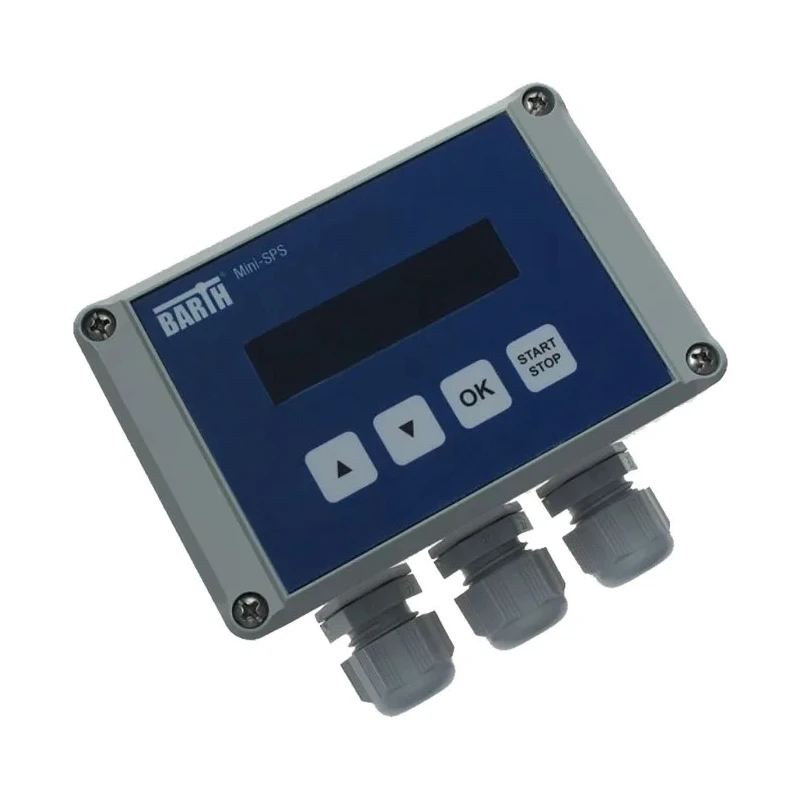

BARTH lococube mini-PLC Series PLC I/O Module 8-Input Analogue Digital Input 12 Outputs Analogue Output 0850-0100

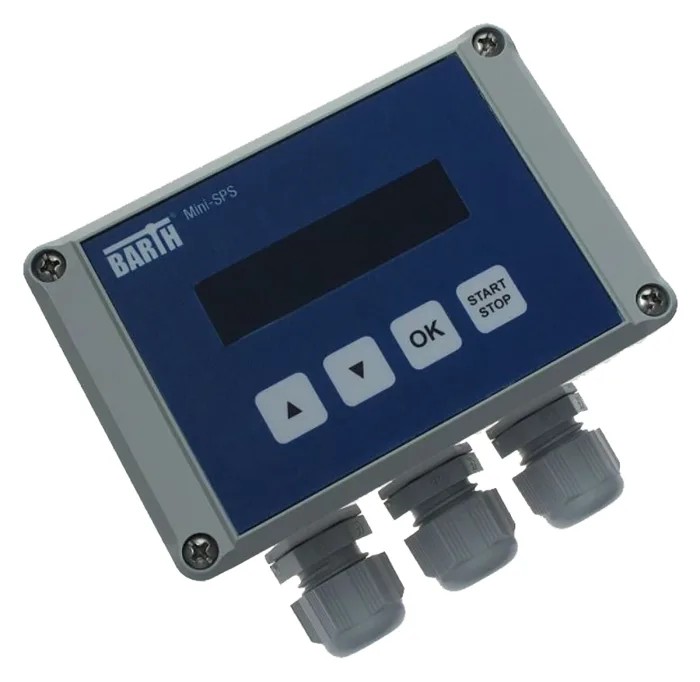

BARTH 0850-0100 lococube mini-PLC Series PLC I/O Module is a compact and versatile industrial controller designed for automation applications. It integrates 8 analog and digital input channels and 12 analog output channels, making it an ideal solution for precise control in industrial, manufacturing, and automation systems.

The unit is housed in a robust, splash-proof enclosure with IP65 ingress protection, enabling reliable outdoor and harsh environment operation. Its panel mount design allows easy integration into existing control panels. The mini-PLC includes a clear 2x16 character LCD with blue LED backlight and four enter keys for simple programming and status monitoring.

Powered by a supply voltage range of 7 to 32 Vdc, it is compatible with common 12/24 V power systems. The program capacity of 64kB allows for complex automation sequences, with programming support in Assembler, C, and BASIC. Additional features include a hardware real-time clock (RTC), EEPROM memory capable of retaining data for over 40 years, and internal voltage monitoring for operational safety.

The PLC module offers 8 inputs supporting analogue and digital signals with 10-bit resolution, short-circuit and overload protected outputs rated at 1.5 A each, and 3 PWM outputs up to 32 kHz. Communication ports include ICSP, SPI, and I2C connections for integration with other devices. It complies with a broad range of standards including EN 60068, IEC 61000-6, ISO 16750-3, and IEC/EN 60529, ensuring electromagnetic compatibility and operational reliability.

This module is suited for industrial automation, control gear, manufacturing lines, water treatment plants, and HVAC systems. The device is designed to be user-friendly with freely programmable LCD display and easy connection via spring terminals. The package includes spring terminal connectors and a user manual for straightforward installation and configuration.

Note that the product is NRND (Not Recommended for New Designs), indicating that while it remains in production and available, newer and more economical alternatives may be preferable for new projects.

Equipped with 8 analogue and digital inputs for flexible signal acquisition. Features 12 analogue outputs supporting diverse control applications. Robust splash-proof housing with IP65 protection ensures durability. Panel mount design with wide operating temperature range.

Program capacity of 64kB supports complex control tasks. Programmable in Assembler, C, and BASIC languages for versatility. Includes hardware real-time clock and EEPROM memory retention. Conforms to international EMC and environmental standards.
