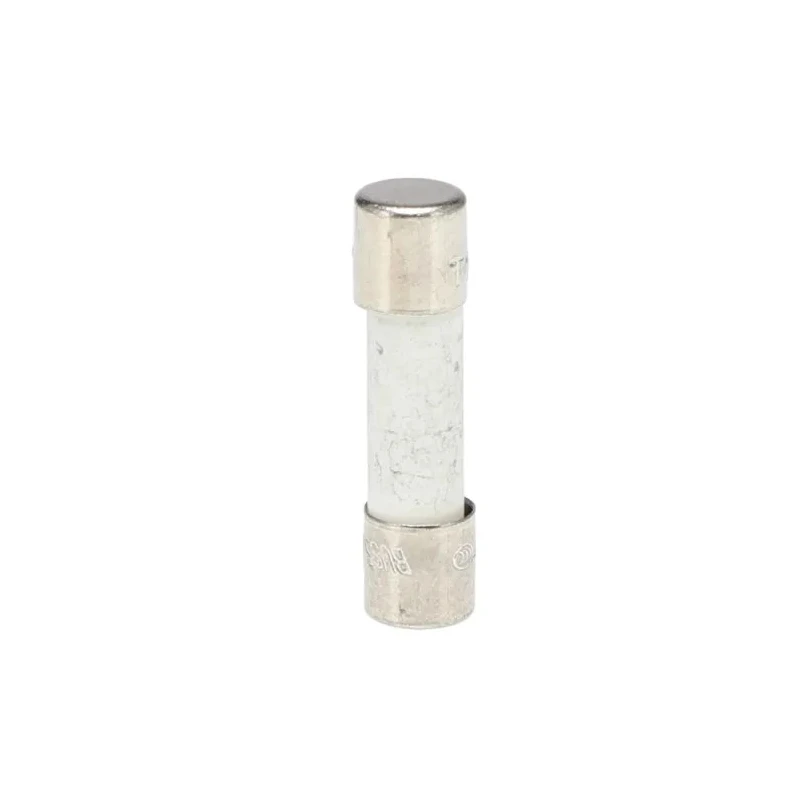

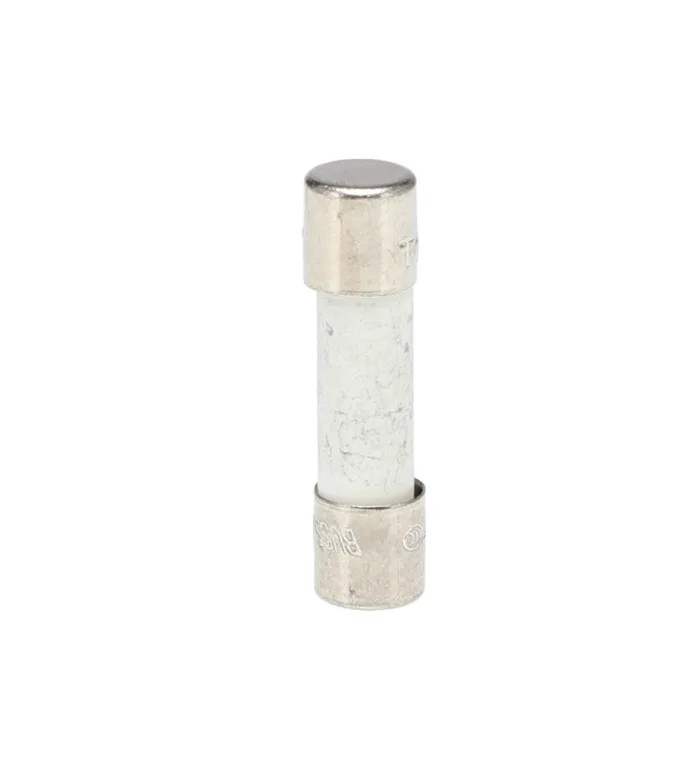

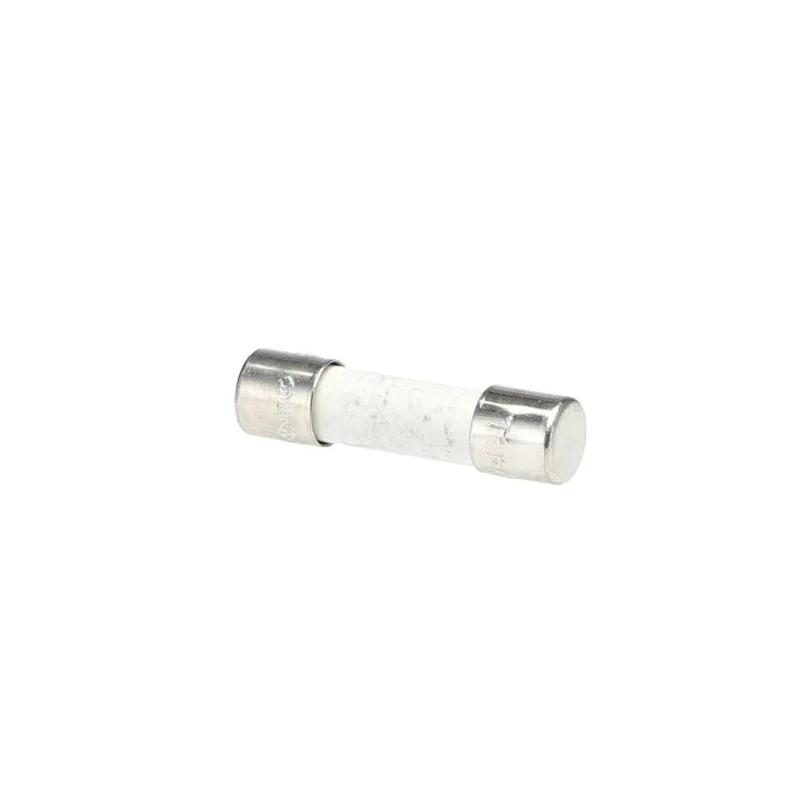

Eaton Ceramic Cartridge Fuse Time Delay 1.6A 250V AC 5 x 20 mm S505-1-6-R

Eaton S505-1-6-R ceramic cartridge fuse is a time-delay fuse with a current rating of 1.6A and a voltage rating of 250V AC. Its compact 5 x 20 mm ceramic body provides excellent temperature resistance and electrical insulation, making it suitable for use in precision electrical and automation equipment.

The time-delay feature of this fuse allows it to handle temporary current surges without interrupting circuit operation, providing enhanced protection in complex electronic systems. Compliance with IEC 60127-2 and CSA standards ensures reliability and compatibility across a broad range of applications.

This fuse is commonly deployed in electrical panels where circuit integrity is critical, in automation equipment requiring dependable overcurrent protection, and within consumer electronics to ensure user safety and device longevity. The ceramic construction also contributes to a high breaking capacity, improving the safety margin of protected circuits.

Designed with a ceramic body for improved durability and insulation. 1.6A current rating and 250V AC voltage rating for low voltage circuit protection. Time-delay characteristic accommodates transient surges without fuse blowing.

Meet IEC 60127-2 and CSA standards for quality assurance. Dimensions of 5 x 20 mm allow compact installations. Low voltage drop improves overall circuit efficiency. Widely applicable across electrical panels, automation, and consumer electronics.

Manufactured in China with high standards of quality control.

This Eaton ceramic cartridge fuse is an excellent choice for industrial, laboratory, and commercial applications requiring high safety and dependable electrical protection. Explore other Eaton Cartridge Fuses in the Electronics & Electricals category on EnvMart.
