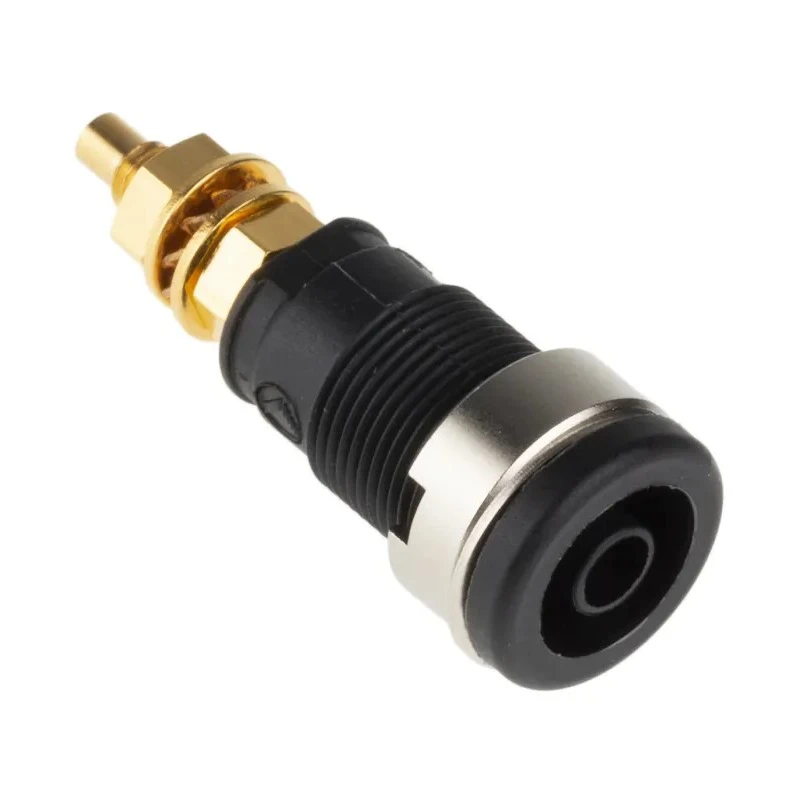

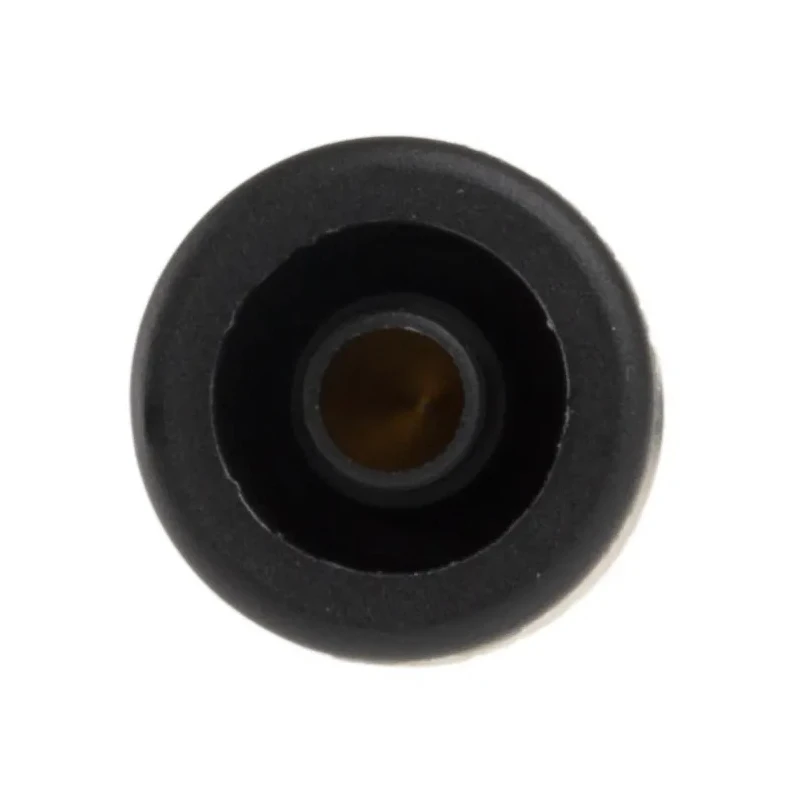

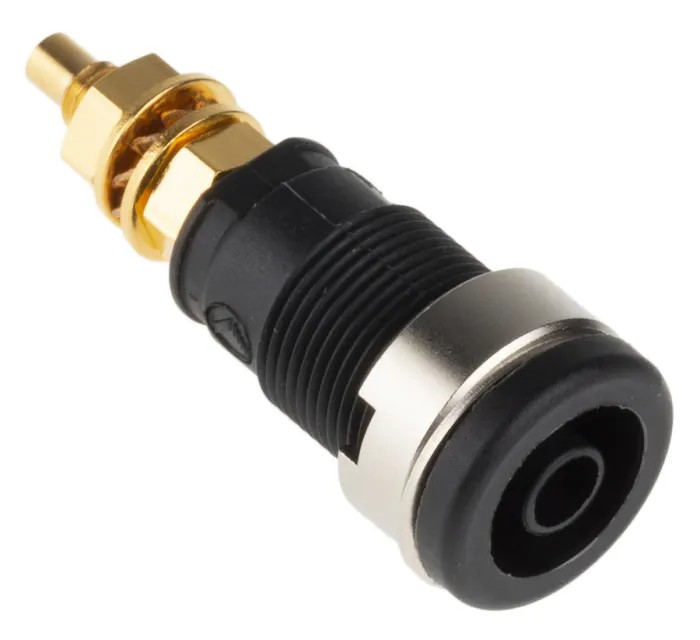

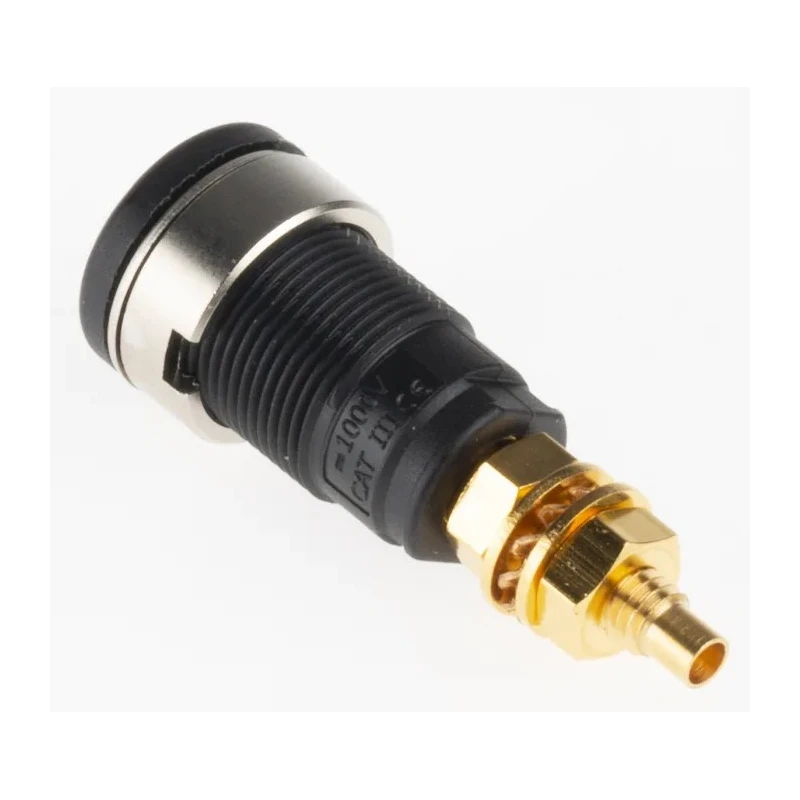

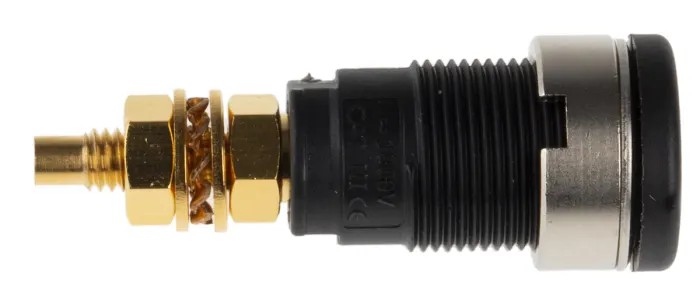

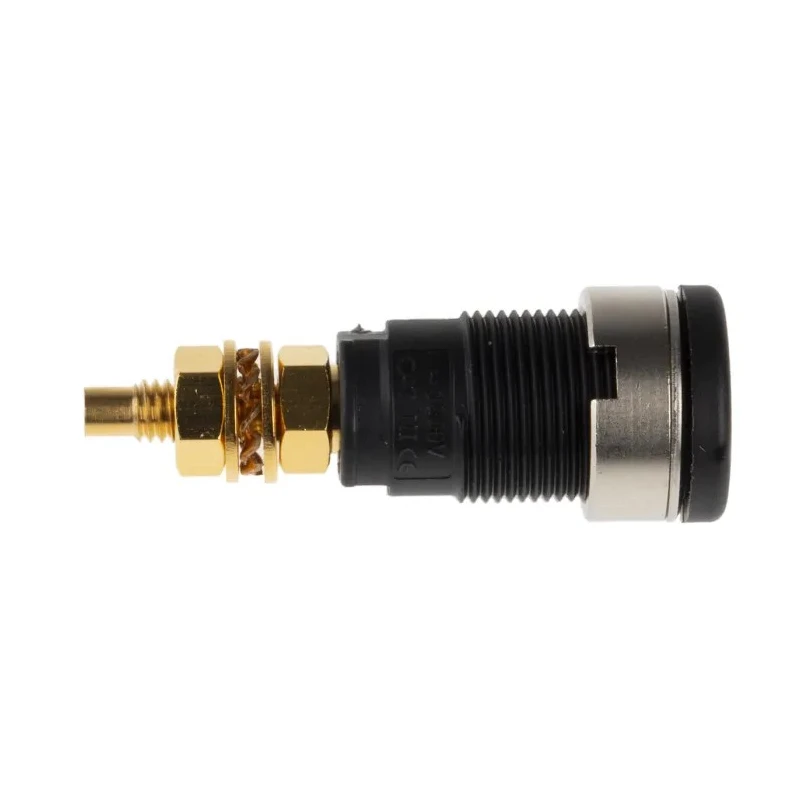

Hirschmann Test & Measurement Black Female Banana Socket 4 mm Connector 1000 V AC/DC 32A Solder Termination 972354100

Hirschmann Test & Measurement 972354100 black female banana socket is a high-quality electrical test connector designed for safe and secure chassis mounting. It features a 4 mm banana connector with solder termination suitable for operational voltages up to 1000 V AC or DC and a current rating of 32 amperes. This safety socket is ideal for installations requiring touch protection and robust mounting in equipment chassis or switch panels with wall thicknesses up to 6 mm.

The banana socket includes a gold-plated brass contact that enhances conductivity and durability while providing corrosion resistance. The solder termination method allows for a dependable and stable connection, ensuring consistent performance in electrical and electronic testing applications.

Designed with M12 and M4 threaded terminations, the socket accommodates screw connections suitable for mounting holes with a diameter of 12.2 mm. The socket length of 39 mm provides compatibility with standard panel thicknesses, making it adaptable for control panels and unit chassis installations.

Compliance with recognized standards such as ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, CE certification, and IEC 61010 certification ensures safety, electromagnetic compatibility, and reliable operation during electrical testing. The robust design and premium material sourcing from Germany underline its suitability for professional industrial, laboratory, and manufacturing environments.

Common use cases include secure electrical connections in test and measurement setups, electronic assemblies, and other industrial applications requiring high voltage and current handling capabilities within a compact connector format.

Gold-plated brass contact ensures excellent conductivity. Solder termination method provides reliable electrical connection. 32 ampere current rating suitable for high power applications. Voltage rating of 1000 V AC or DC for versatile usage.

Compact length of 39 mm fits standard chassis and switch panel mounting. M12 and M4 threaded termination accommodates robust installation. Touch protected chassis mount safety socket for operator safety. Installation holes require 12.2 mm diameter suitable for up to 6 mm wall thickness.

Complies with ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, CE, and IEC 61010 standards. Manufactured in Germany guaranteeing premium quality. Explore the full range of electrical test and measurement connectors at EnvMart, including Banana Connectors designed for demanding industrial and laboratory applications.
