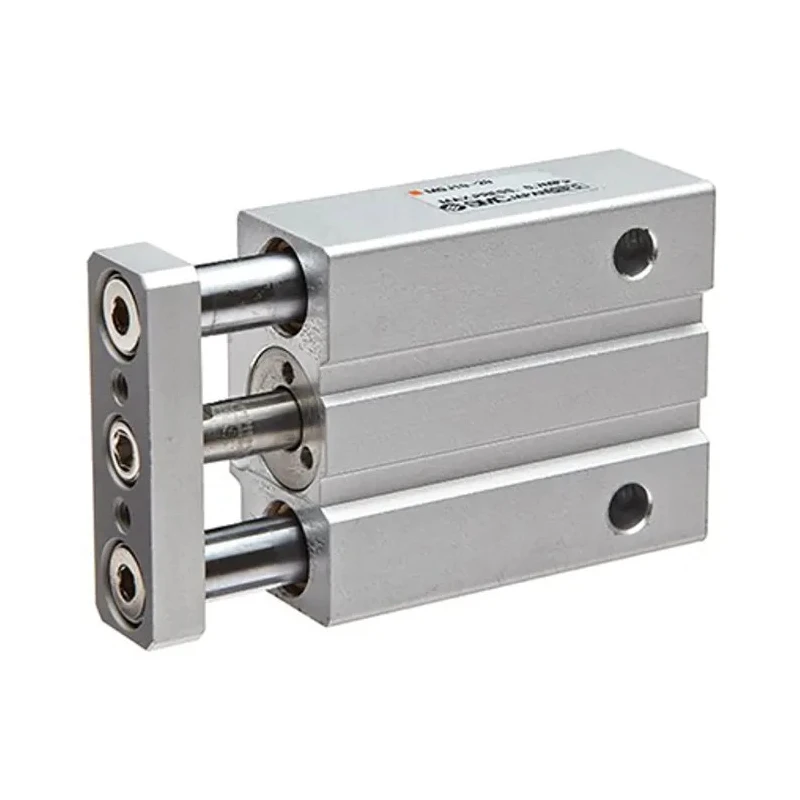

SMC Pneumatic Guided Cylinder 10mm Bore Double Acting Aluminium Alloy Body MGJ10-10

The SMC MGJ10-10 Pneumatic Guided Cylinder is a high-precision miniature guide rod cylinder designed for industrial pneumatic applications requiring high side load capacity and non-rotational accuracy. Featuring a durable aluminium alloy body, it supports a 10mm bore and double acting operation, making it suitable for compact automation systems.

This cylinder operates with a maximum pressure of 0.7 MPa and achieves piston speeds up to 500mm/s, ensuring responsive actuation. The non-rotating rod ensures precise guidance and positioning during operation, minimizing lateral wear and improving service life.

Equipped with rubber bumpers for effective cushioning, this cylinder reduces mechanical shock, enhancing system reliability. Designed to function within a temperature range from -10°C to 60°C, it is appropriate for various industrial environments.

The direct mount type allows for straightforward installation in tight or confined spaces. Compliance with JIS B 8370 and ISO 4414 standards guarantees quality manufacturing and safety adherence.

Its compact physical dimensions of height 33mm, width 17mm, length 35mm, and stroke length 10mm, along with a lightweight design weighing only 48 grams, enable seamless integration into precision automation assemblies, laboratory devices, and manufacturing systems.

Compact aluminium alloy body ensures durability and lightweight operation. Double acting cylinder with 10mm bore suitable for precise pneumatic actuation. Maximum operating pressure of 0.7 MPa for reliable performance. Non-rotating rod design enhances positional accuracy and control.

Rubber bumpers provide effective cushioning to reduce mechanical shock. Operates efficiently between -10°C and 60°C temperature range. Mount type is direct for easy and secure installation. Standard compliance to JIS B 8370 and ISO 4414 quality standards.

Compact dimensions: 33mm height, 17mm width, 35mm length, and 10mm stroke length. Lightweight design weighing 48 grams enhances ease of integration into assemblies.

This pneumatic guided cylinder is ideal for applications in industrial automation, manufacturing, robotics, laboratory instruments, and fluid power systems. Its precision engineering and robust design ensure dependable operation in demanding environments.
