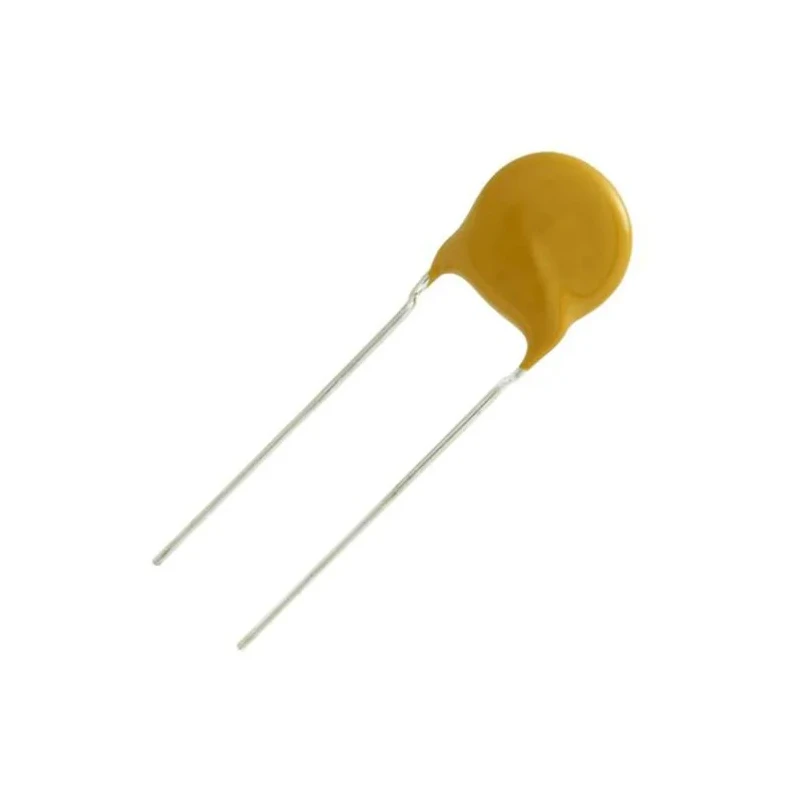

Vishay Single Layer Ceramic Capacitor 4.7 nF 6kV DC ±20% Z5U Dielectric Through Hole 105 °C 564R60GAD47
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | 6kV dc |
| Diameter | 20mm |
| Brand | Vishay |
| Model | 564R60GAD47 |
| Packaging | Tape & Reel |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | 564R |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 4.7nF |
| Minimum Operating Temperature | -25°C |
| Terminal type | Radial |
| Dissipation Factor | 0.1% |
| Standards/Approvals | RoHS |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | Z5U |
Key Features
- Capacitor with Z5U dielectric suitable for high stability DC applications.
- Operating temperature range from -25 °C to 105 °C ensures reliable performance.
- Through hole radial mount type allows easy PCB integration.
- Disc package with 20 mm diameter and 6.6 mm width offers compact form factor.
- Tolerance of ±20% meets standard design requirements.
- Dissipation factor of 0.1% minimizes energy loss in circuits.
- Silver plated ceramic disc with flame retardant epoxy resin coating provides safety and durability.
- Tinned copper radial leads ensure reliable solder connections.
Product Description
Vishay 564R60GAD47 single layer ceramic capacitor offers a capacitance of 4.7 nF with a rated voltage of 6kV DC. Designed with the Z5U dielectric material, it delivers stable performance in demanding electrical environments. This capacitor supports a maximum operating temperature of 105 °C, making it suitable for various industrial, power supply, and lighting ballast applications.
The device is constructed from a ceramic disc with silver plating on both sides and coated with a flame retardant epoxy resin, ensuring both high reliability and safety. Its radial tinned copper leads are designed for through hole mounting on PCBs, facilitating robust mechanical and electrical connections.
Key dimensions include a 20 mm diameter and 6.6 mm width disc package, with a tolerance level of ±20% and dissipation factor as low as 0.1%, guaranteeing energy efficiency and precise capacitance control.
This capacitor is compliant with RoHS standards, emphasizing its environmentally friendly manufacturing process, and is made in the Czech Republic. It is widely used in industrial electronics, power supplies, lighting ballasts, and other DC applications requiring high stability capacitors.
Capacitor with Z5U dielectric suitable for high stability DC applications. Operating temperature range from -25 °C to 105 °C ensures reliable performance. Through hole radial mount type allows easy PCB integration. Disc package with 20 mm diameter and 6.6 mm width offers compact form factor.
Tolerance of ±20% meets standard design requirements. Dissipation factor of 0.1% minimizes energy loss in circuits. Silver plated ceramic disc with flame retardant epoxy resin coating provides safety and durability. Tinned copper radial leads ensure reliable solder connections.
RoHS compliant product manufactured in Czech Republic. Explore our range of high-quality Vishay Single Layer Ceramic Capacitors and other electronics components available at EnvMart for reliable industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 4.7 nF.
It has a maximum voltage rating of 6kV DC.
The operating temperature range is from -25 °C to 105 °C.
This capacitor supports through hole mounting, making it suitable for PCB integration.
It has a diameter of 20 mm and a width of 6.6 mm.
The tolerance level is ±20%.
The dissipation factor is 0.1%, which helps minimize energy loss in circuits.
It is constructed with Z5U dielectric material, suitable for high stability applications.
The terminal type is radial, designed for through hole connections.
Yes, it is RoHS compliant, indicating it meets environmental safety standards.
This model is manufactured in the Czech Republic.
It is suitable for various applications including industrial electronics, power supplies, and lighting ballasts.
