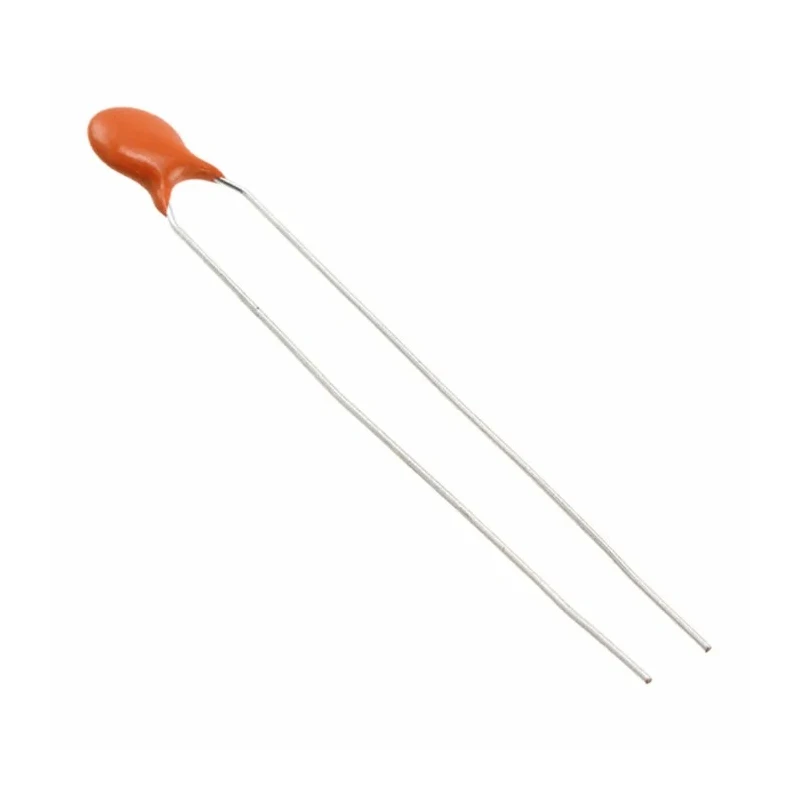

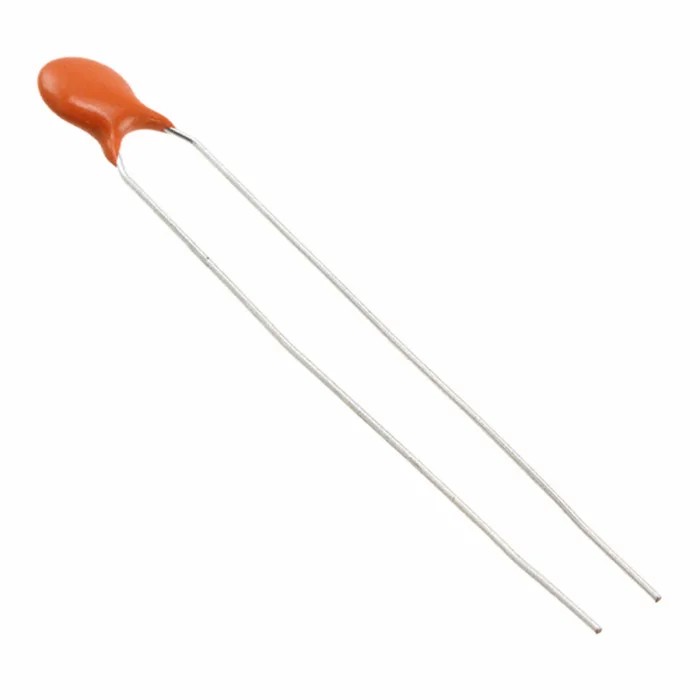

Vishay Single Layer Ceramic Capacitor 200 pF 1kV ±10% X5F Dielectric Through Hole Disc Radial Terminal 562R10TST20
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Diameter | 6.4mm |
| Brand | Vishay |
| Model | 562R10TST20 |
| Packaging | Tape & Reel |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | 562R |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 200pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.1% |
| Standards/Approvals | RoHS |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | X5F |
Key Features
- High reliability ceramic disc capacitor with flame retardant epoxy coating.
- Operates at maximum temperature of 105 °C and minimum of -55 °C.
- Radial terminal type suitable for through-hole PCB mounting.
- X5F dielectric for stable electrical performance.
- Low dissipation factor of 0.1% ensures minimal losses.
- Disc package with 2 pins and 6.4 mm diameter.
- RoHS compliant for environmental safety.
- Suitable for bypassing, resonant circuits, coupling, and DC applications.
Product Description
Vishay 562R10TST20 single layer ceramic capacitor features a capacitance of 200 pF rated at 1kV DC voltage. It has a ±10% tolerance and utilizes X5F dielectric material providing high stability and reliability in electronic circuits.
This capacitor is designed for through-hole mounting with radial leads and a disc package form factor measuring 6.4 mm in diameter and 4 mm in width. It is coated with flame retardant epoxy resin to enhance safety and durability.
Operating temperature ranges from -55 °C to a maximum of 105 °C, making it suitable for various industrial, laboratory, and commercial electronic applications requiring stable DC coupling, bypassing, and resonant circuit performance.
Additional technical benefits include a dissipation factor of only 0.1% to minimize energy loss, 2 pin radial leads for secure PCB installation, and full compliance with RoHS environmental standards ensuring no hazardous substances.
The 562R series capacitors from Vishay are widely used in power and control electronics, instrumentation, and other electronic component assemblies. High reliability ceramic disc capacitor with flame retardant coating. Wide operating temperature range from -55 °C to 105 °C.
Through-hole mounting with radial terminal leads. Stable X5F dielectric for DC electronic circuits. Low energy loss with 0.1% dissipation factor. RoHS compliant for environmental safety. Disc package with 6.4 mm diameter and 4 mm width dimensions.
Suitable for industrial, laboratory, and commercial electronic applications. Explore more Vishay Single Layer Ceramic Capacitors and related electronic components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 200 pF.
It has a maximum voltage rating of 1kV.
This capacitor has a tolerance of ±10%.
The capacitor has a diameter of 6.4 mm and a width of 4 mm.
It is designed for through-hole mounting with radial terminal leads.
The operating temperature range is from -55 °C to a maximum of 105 °C.
This capacitor utilizes X5F dielectric material for stable electrical performance.
It has a low dissipation factor of 0.1%, which minimizes energy loss.
Yes, it is RoHS compliant, ensuring no hazardous substances are present.
It is packaged in tape and reel format.
It is suitable for bypassing, resonant circuits, coupling, and DC applications.
This capacitor features 2 pins for connection.
