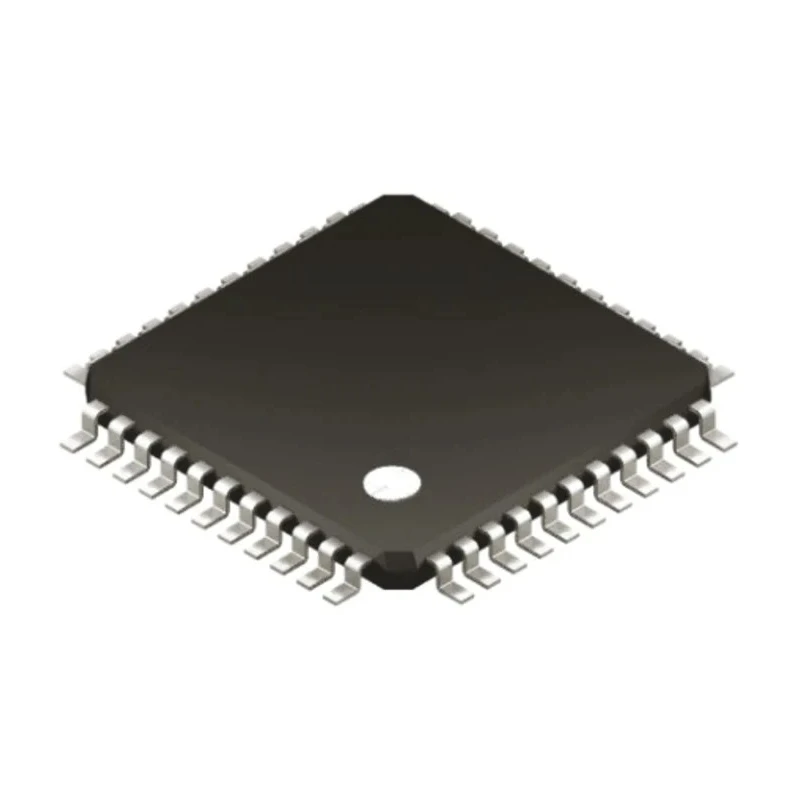

Microchip PIC24FJ128GB204-I/PT 16 bit PIC24FJ Microcontroller 32 MHz 128kB FLASH 44-Pin TQFP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC24FJ128GB204-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC24FJ |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Module - USB On-the-Go Compliant |
| Ram size | 8kB |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 34 |
| Analogue Comparators | 3 |
| Maximum Expanded Memory Size | 32MB |
| Number of Timers | 1 |
| Instruction Set Architecture | Harvard |
| ADCs | 12 x 10/12 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller features a 16-bit PIC24FJ core delivering up to 16 MIPS performance.
- It integrates an on-board Cryptographic Engine plus USB On-the-Go functionality.
- Includes 8 kB RAM and 128kB FLASH program memory for versatile applications.
- Operates over a voltage range of 2V to 3.6V with low power consumption supported by Extreme Low-Power technology.
- Features 34 programmable I/O pins and 12-channel 10/12-bit ADCs for analog input capability.
- Equipped with one 16-bit timer and multiple peripherals including SPI, I2C, UART modules, comparators, and DMA channels.
- Designed for industrial use with operating temperatures from -40°C to 85°C.
- Compact 10 mm x 10 mm x 1.05 mm TQFP surface mount package enables easy integration.
Product Description
Microchip PIC24FJ128GB204-I/PT is a high-performance 16-bit microcontroller based on the PIC24FJ core with 128kB FLASH memory and 8kB RAM. Operating at a maximum clock frequency of 32 MHz, it offers robust processing for embedded applications requiring efficient computing power and peripheral integration.
The device features Extreme Low-Power (XLP) technology for reduced power consumption, making it ideal for battery-operated and power-sensitive systems. It supports a wide supply voltage range from 2V to 3.6V and operates reliably across industrial temperature ranges from -40°C to 85°C.
This microcontroller includes a USB On-the-Go compliant module enabling versatile USB device and host modes. It also integrates a Cryptographic Engine to enhance security features in applications requiring data protection.
Peripheral interfaces include three SPI modules, two I2C modules, and four UARTs, with two UARTs supporting Smart Card ISO 7816 protocol. The ADC module provides 12 channels of 10/12-bit conversion for precise analog sensing, complemented by three analog comparators.
Additional peripherals such as six input capture modules, six output compare/PWM modules, hardware real-time clock/calendar, direct memory access controller, and programmable CRC ensure complete system versatility for industrial, consumer electronics, and communication applications.
This microcontroller delivers efficient datapath performance with a Harvard architecture instruction set. Compact and reliable 44-pin TQFP package supports surface mounting for PCB design convenience. Features such as Power-On Reset, Brown-Out Reset, Watchdog Timers, and Voltage Detection modules ensure safe and stable operation.
Designed for versatile applications including embedded control, industrial automation, and secure communications. Explore more Microcontrollers and components suited for your application needs in the Electronics and Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC24FJ128GB204-I/PT microcontroller is 32 MHz.
This microcontroller features a program memory size of 128kB FLASH.
It operates over a voltage range of 2V to 3.6V.
The device includes 34 programmable I/O pins.
The microcontroller is designed to operate within a temperature range of -40°C to 85°C.
It supports several interfaces including USB On-the-Go, SPI, I2C, and UART modules.
This model has a RAM size of 8kB.
The microcontroller is housed in a TQFP (Thin Quad Flat Package) package type.
It features 12 channels of 10/12-bit ADCs for analog input capability.
It integrates an on-board Cryptographic Engine for enhanced security features.
This microcontroller has a pin count of 44.
The device complies with RoHS standards.
