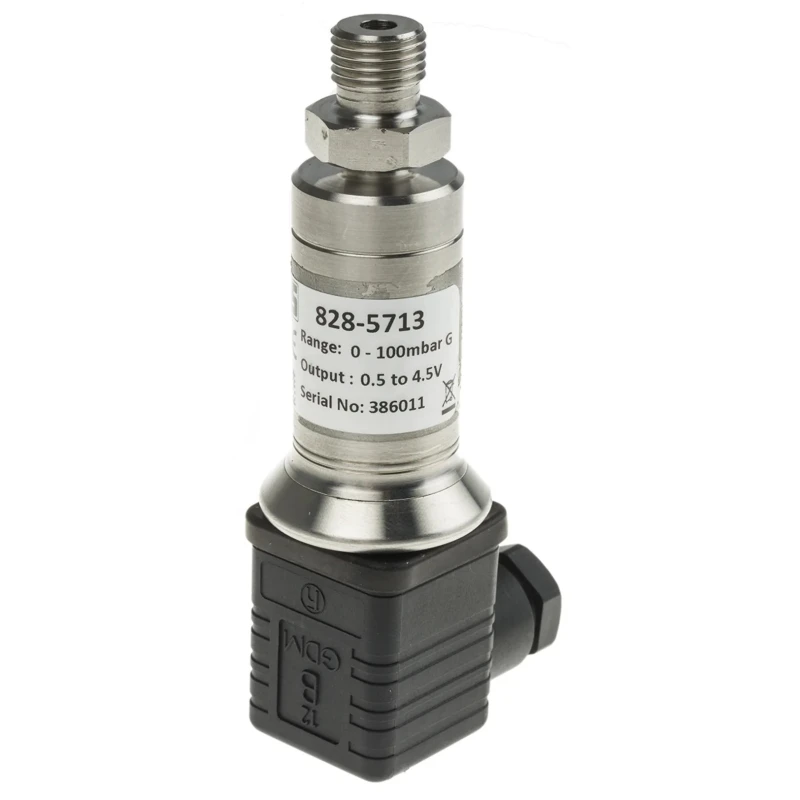

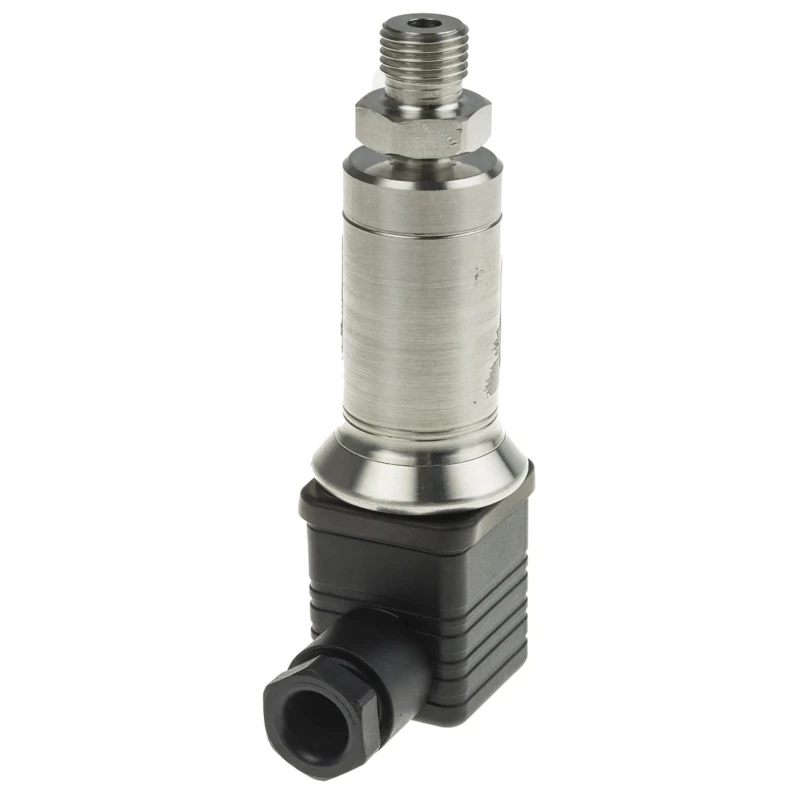

RS PRO Industrial Gauge Pressure Sensor 0 to 0.1 bar, 0.5/4.5 V Output, DIN Interface, Stainless Steel Housing 828-5713

RS PRO 828-5713 industrial gauge pressure sensor is designed for accurate measurement of oil pressure from 0 to 0.1 bar, providing a voltage output range of 0.5 to 4.5 V. The sensor incorporates a piezo-resistive thick film ceramic element housed in a durable stainless steel 303 chassis that offers IP65 protection, making it suitable for harsh industrial environments.

Engineered for precision, this sensor operates effectively in temperatures ranging from -20°C to 125°C, with built-in temperature compensation and an accuracy tolerance of ±0.25%. It utilizes a DIN interface along with a large DIN terminal type to facilitate easy connection and integration into control systems.

The threaded mount type enables flexible installation positions while maintaining sensor stability. The device measures gauge pressure, specifically for oil media, and is designed to endure more than 100 million operational cycles ensuring long-term reliability. Electrical characteristics include a supply voltage range from 9 V to 32 V DC and output calibrated for stable readings.

This pressure sensor finds applications across various industrial sectors including mechanical engineering, environmental monitoring, automotive testing, pneumatics, agricultural machinery, and laboratory testing environments. Its stainless steel construction and Viton O-ring seals, combined with a 316L stainless steel diaphragm, ensure excellent durability and media compatibility.

The sensor employs a piezo-resistive ceramic sensor with robust stainless steel housing. Output type is 0.5/4.5 V tailored for industrial signal standards. Maximum pressure measurement is 0.1 bar with gauge reading type.

Housing quality includes stainless steel 303 with Viton O-ring seals and a 316L diaphragm. IP rating IP65 suits use in dusty and water-exposed environments. Design includes a flexible installation position with threaded mounting.

Operational life exceeds 100 million cycles for dependable long-term use. Certified compliant with CE EMC directive and EN 61326-1:2013 standards.

RS PRO brand products are trusted worldwide for their high quality and value. Ideal for industrial and laboratory applications, this Pressure Sensor ensures precision and durability required for demanding measurement tasks.
