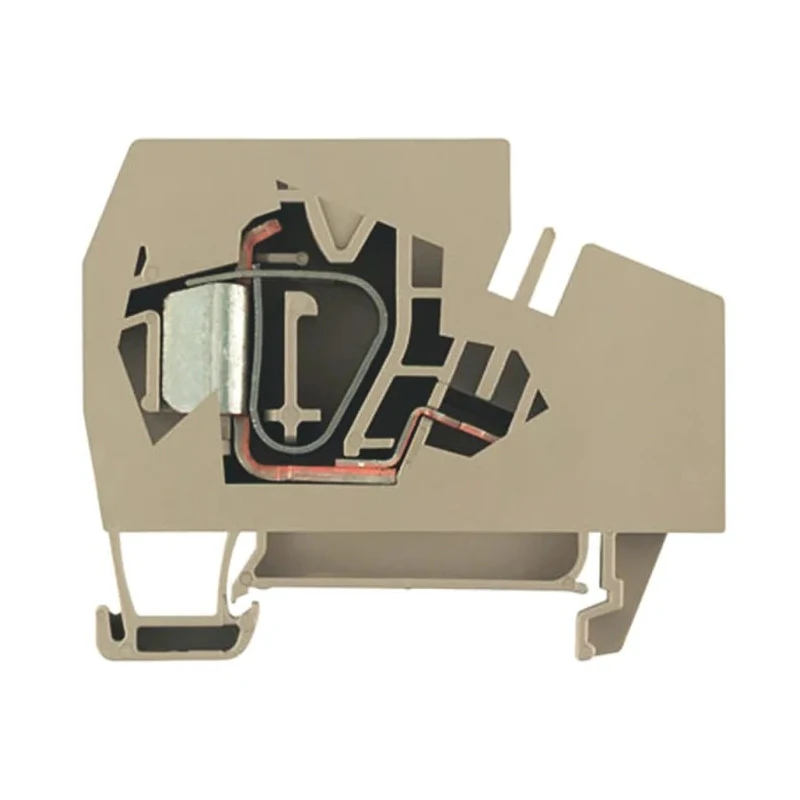

Weidmüller Z Series Feed Through Terminal Block 1-Level, 16mm², Clamp, 800V, 76A 1772940000
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 800V |
| Brand | Weidmüller |
| Colour | Dark Beige |
| Series | Z |
| Termination Type | Clamp |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Pitch | 14mm |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 4AWG |
| Cable CSA | 16mm² |
| Terminal Block Current | 76A |
Key Features
- The terminal block features tension clamp technology, providing secure and reliable wire holding.
- It supports cable cross-sectional areas up to 16mm² and wire sizes ranging from AWG14 to AWG4.
- Rated for 76A current and 800V voltage, suitable for demanding electrical distribution applications.
- Compact 14mm pitch allows for efficient DIN rail mounting and space saving.
- Operating temperature ranges from -50°C to 120°C, supporting a wide array of industrial environments.
- Available in dark beige color for easy identification and aesthetic conformity.
- Constructed without hazardous area certification, intended for general industrial and electrical usage.
- Manufactured in Romania ensuring quality and performance consistency.
Product Description
Weidmüller 1772940000 Z Series Feed Through Terminal Block is engineered for industrial electronic component applications requiring robust and flexible connections. Featuring tension clamp technology, this 1-level terminal block efficiently secures cables with a clamp termination type, ensuring stable and vibration-resistant electrical contacts.
It accommodates cable cross-sections up to 16mm² and wire sizes from AWG14 minimum to AWG4 maximum, making it versatile for a variety of wiring tasks in power distribution and control systems. With a nominal voltage rating of 800V and rated current of 76A, it supports medium to high power applications safely and reliably.
The block’s 14mm pitch optimizes space on DIN rails, facilitating compact installation layouts in control panels and electrical cabinets. Its operating temperature range from -50°C to 120°C further confirms its suitability across diverse manufacturing, industrial, and infrastructure environments.
Available in a dark beige color, this terminal block offers clear visual identification and material distinction. It does not carry hazardous area certification and complies with standard industrial electrical requirements. Manufactured in Romania, guaranteeing adherence to high-quality standards.
The tension clamp technology ensures consistent and durable connection under mechanical stress. Snap-on mounting capability facilitates rapid and tool-free assembly on DIN rails. Dark beige coloration helps differentiate the block in electrical assemblies.
Wide operating temperature range supports diverse climatic and environmental conditions. Supports a nominal wire cross-section of 16mm² and wire sizes from AWG14 to AWG4. Rated for 76A current and 800V voltage to meet industrial power requirements.
Manufactured in Romania with stringent quality controls. This terminal block is ideal for electronic component assembly, power and distribution panels, industrial control systems, manufacturing plants, and HVAC applications.
Explore more Weidmüller DIN Rail Terminal Blocks and electronic components in our extensive EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a maximum voltage rating of 800V, making it suitable for medium to high power applications.
It is rated for a current of 76A, which allows it to handle demanding electrical distribution tasks.
This model can accommodate cable cross-sectional areas up to 16mm², providing versatility for various wiring applications.
It supports wire sizes ranging from AWG14 to AWG4, allowing for a wide range of wire connections.
The operating temperature range is from -50°C to 120°C, making it suitable for diverse industrial environments.
This terminal block features clamp termination technology, ensuring secure and reliable wire holding.
The terminal block has a pitch size of 14mm, which optimizes space on DIN rails for compact installation.
It is available in a dark beige color, aiding in visual identification and aesthetic conformity in electrical assemblies.
This model is a 1-level terminal block, designed for straightforward connections in electrical systems.
It is manufactured in Romania, ensuring adherence to high-quality standards during production.
No, this terminal block does not carry hazardous area certification and is intended for general industrial and electrical usage.
It is suitable for electronic component assembly, power and distribution panels, industrial control systems, manufacturing plants, and HVAC applications.
