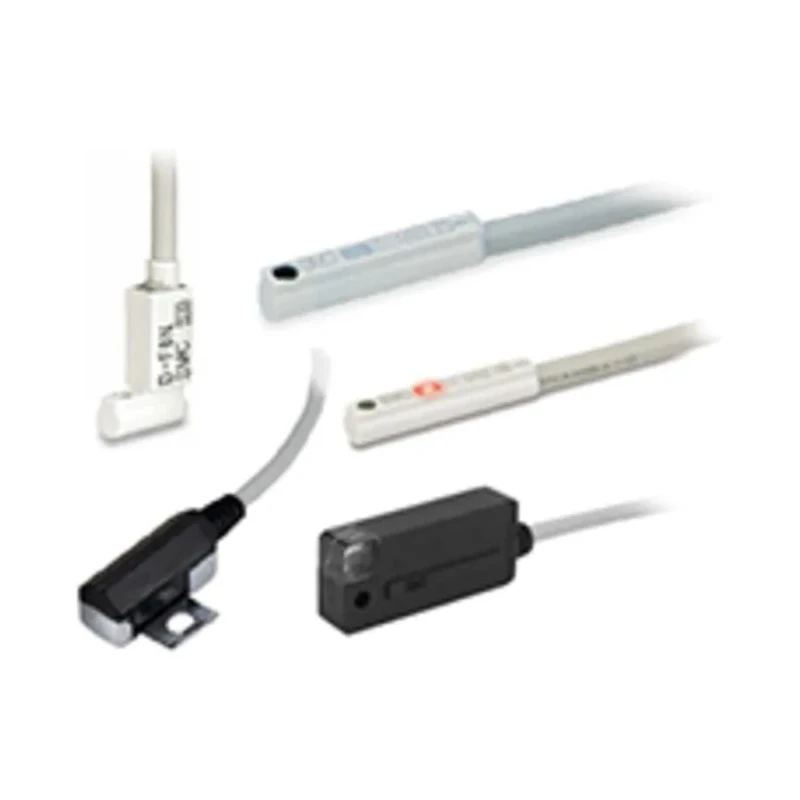

SMC Pneumatic Cylinder & Actuator Switch 3-Wire Open End Cable Band PNP Solid State Switch 28V dc LED D-H7A2SAPC

SMC D-H7A2SAPC pneumatic cylinder and actuator switch is a high-quality 3-wire open end cable band PNP solid state switch designed for integration with CG1 series air cylinders. Operating at 28V dc, this switch features an LED indicator for easy visual status monitoring and adheres to the durable IEC 529 standards, making it highly reliable in industrial environments.

The compact design with a width of 15.5mm, height of 18mm, and depth of 46mm allows seamless installation in pneumatic systems where space is limited. Its IP67 rating ensures protection against dust and water, enhancing its durability in demanding conditions.

This switch supports a switching current of 40mA and operates efficiently within a temperature range of -10°C to 60°C, making it suitable for a variety of industrial automation, pneumatic control, and fluid power applications. Its solid state technology with PNP operation provides faster and more reliable switching performance.

The D-H7 series auto switch simplifies pneumatic cylinder actuation sensing, providing two-color LED indication and diagnostic output capabilities for enhanced system feedback and control diagnostic processes.

This solid state switch features a 3-wire open end cable connection for ease of installation. The PNP operation type provides active high output suitable for various control systems. Designed for use with CG1 series air cylinders ensuring compatibility and accurate sensing.

Boasts an IP67 rating for excellent protection against dust and water ingress. Equipped with an LED indicator for clear operational status visibility. Operates reliably within a temperature range from -10°C to 60°C. Compact dimensions of 15.5mm width, 18mm height, and 46mm depth facilitate integration into tight spaces.

Supports a switching current of 40mA, fitting typical application requirements. Complies with IEC 529 standards ensuring quality and safety. Manufactured in Japan reflecting high production standards.

This pneumatic cylinder switch is ideal for use in industrial automation, manufacturing processes, fluid power control, and pneumatic machinery monitoring systems. Its reliable switch operation and robust design ensure precise and consistent actuation feedback.
