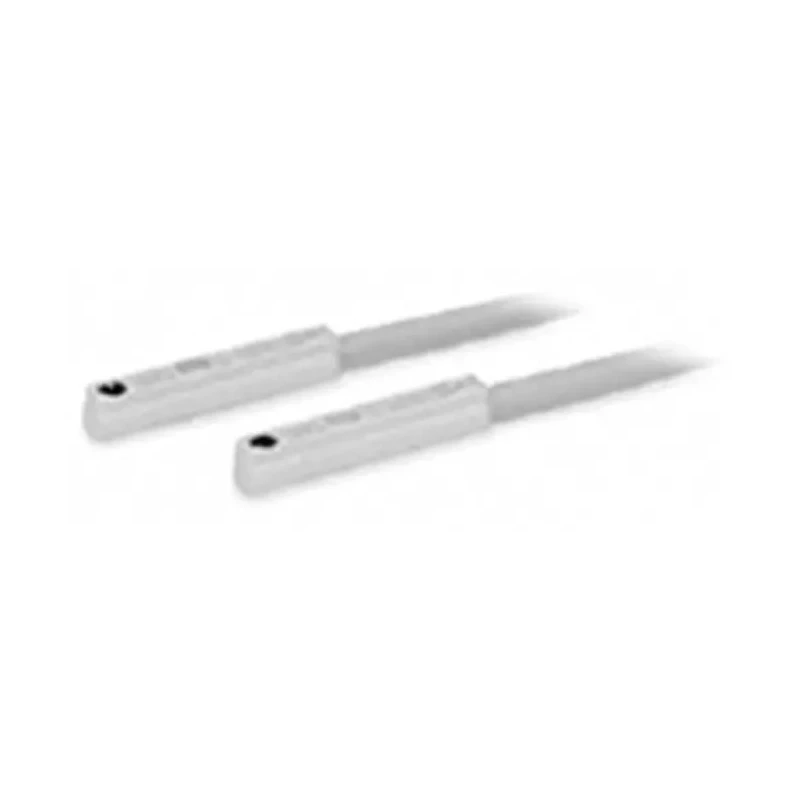

SMC 3-Wire Open End Cable Direct PNP Solid State Pneumatic Switch 28V dc LED Indicator D-M9PWZ

Free Delivery in India | Lowest Global Shipping Charges

SMC 3-Wire Open End Cable Direct PNP Solid State Pneumatic Switch 28V dc LED Indicator D-M9PWZ



Category Pneumatic Sensors & Switches Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	28V dc
Brand	SMC
Height	18mm
Model	D-M9PWZ
Depth	46mm
IP Rating	IP67
Width	15.5mm
Operation Type	PNP
Mount Type	Direct
Series	D-M9
Maximum Operating Temperature	60°C
Sub Type	Solid State Switch
Minimum Operating Temperature	-10°C
Switching Current	40mA
Standards/Approvals	IEC 529
Electrical Connection Type	3-Wire Open End Cable
Applicable Load	IC Circuit, Relay, PLC

Key Features

This solid state switch includes a 3-wire open end cable connection type for easy integration.
The switch operates at 28V dc and supports a switching current of 40mA.
It features an IP67 rating, ensuring watertight and dust-tight performance.
The operating temperature range is from -10°C to 60°C, suitable for varied industrial environments.
The switch includes an LED indicator for easy status monitoring during operation.
Compact dimensions with height 18mm, width 15.5mm, and depth 46mm allow flexible mounting.
The device is compatible with multiple rotary actuators ranging from size 1 to 50.
Suitable for applications involving IC Circuit, Relay, and PLC load types.

Product Description

SMC D-M9PWZ 3-Wire Open End Cable Direct PNP Solid State Pneumatic Switch operates at 28V DC and includes an LED indicator for clear status display. It is designed specifically for pneumatic actuators and suitable for various industrial automation applications.

This switch belongs to the D-M9 series of solid state magnetic sensors, providing reliable and precise switching signals with a PNP output operation type. The 3-wire open end cable ensures straightforward electrical connections in pneumatic and hydraulic control systems.

It features a robust IP67 rated enclosure, offering dust-tight and water-resistant protection for harsh industrial conditions. The device supports a switching current of 40mA and functions effectively within a temperature range of -10°C to 60°C, making it adaptable for diverse environments.

Compact in size with dimensions 18mm (H) x 15.5mm (W) x 46mm (D), it can be mounted directly on pneumatic rotary actuators and cylinders, covering sizes from 1 to 50 depending on the actuator model series such as CDRQ2X and MSQX.

3-wire open end cable facilitates easy wiring and integration. PNP operation type ensures compatibility with modern control logics. LED indicator simplifies visual confirmation of operational status. IP67 rating provides excellent durability in industrial settings.

Designed for use with IC circuits, relays, and PLC loads. Compliant with IEC 529 standards ensuring quality and safety. Compact dimensions allow versatile mounting options. Reliable performance within a wide temperature range from -10°C to 60°C.

This pneumatic switch is ideal for industrial automation, manufacturing, pneumatic control systems, and manufacturing processes requiring precise actuator position sensing. Explore the extensive range of pneumatic sensors and switches at EnvMart for advanced industrial applications.
