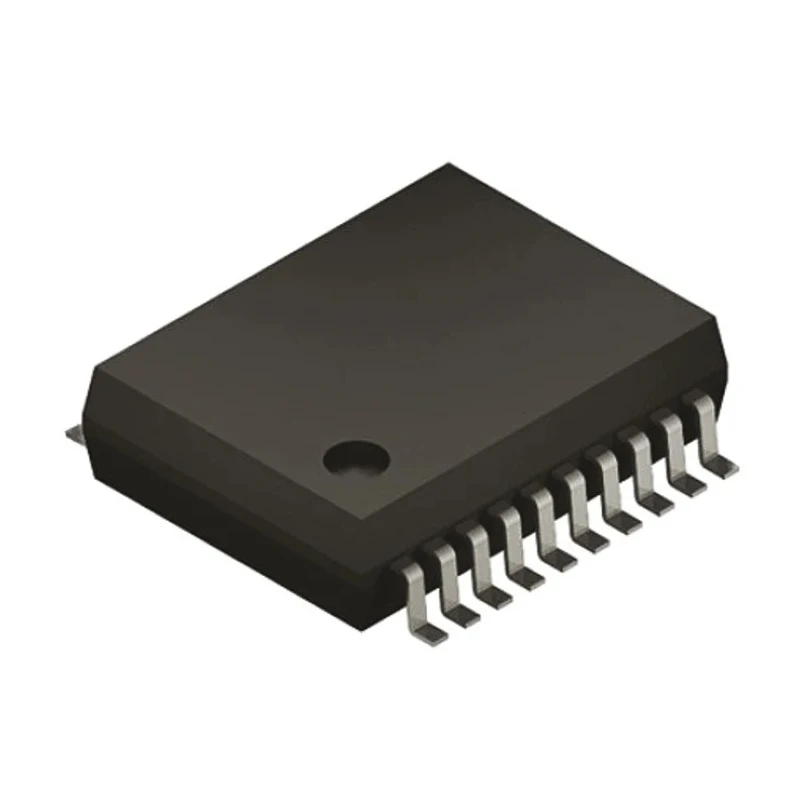

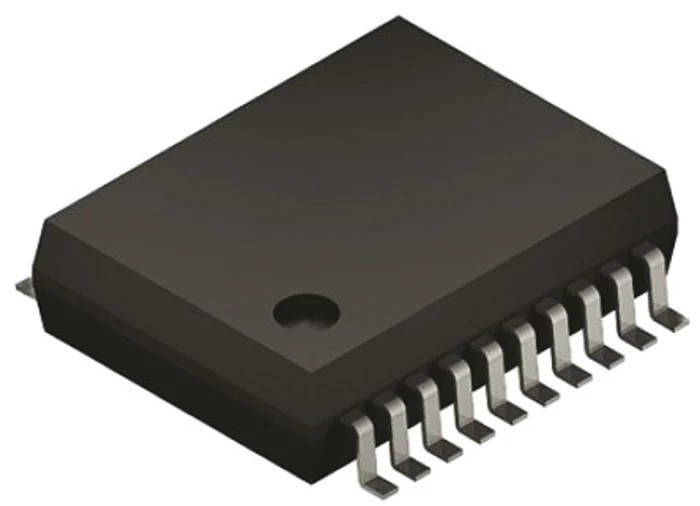

Microchip PIC16F1708-I/SS 8-Bit PIC Microcontroller, 32 MHz Clock, 7kB Flash Memory, 20-Pin SSOP

Microchip PIC16F1708-I/SS is a high-performance 8-bit PIC microcontroller featuring 32 MHz maximum clock frequency and 7kB of Flash memory, packaged in a compact 20-Pin SSOP surface-mount form factor. Designed to meet the demands of cost-sensitive general-purpose embedded applications, it integrates Intelligent Analog features such as dual operational amplifiers, high-speed comparators, and multiple analog-to-digital converter channels.

This microcontroller supports low-voltage operation with a supply range between 2.3V and 5.5V, enhancing flexibility in power-sensitive designs. Its RISC architecture enables efficient instruction processing, while enhanced peripherals including Configurable Logic Cell (CLC), Numerically Controlled Oscillator (NCO), and Complementary Output Generator (COG) provide sophisticated functional capabilities for lighting, switching, and control applications.

The PIC16F1708-I/SS contains 18 programmable I/O pins allowing versatile interfacing, alongside five timers facilitating precise timing functions. Additional features include zero-cross detect capability for AC load control and Peripheral Pin Select (PPS) for flexible pin mapping, improving PCB layout freedom.

This microcontroller operates reliably across an industrial temperature range from -40°C to 85°C, making it suitable for use in diverse environments including industrial, automotive (non-automotive standard), and commercial embedded systems. It complies with RoHS regulations, supporting environmentally responsible manufacturing.

Its small form factor (7.5 mm length, 5.6 mm width, 1.85 mm height) and surface-mount SSOP package support compact, high-density PCB designs common in modern electronics. The device opens possibilities in embedded control for lighting systems, consumer electronics, data acquisition, and other automated control systems.

Features an 8-bit PIC device core optimized for low power consumption. Equipped with 7kB of Flash program memory and 512-bit RAM. Operates within 2.3V to 5.5V supply voltage range. Includes up to two operational amplifiers, two high-speed comparators, and twelve 10-bit ADC channels.

Offers 18 programmable I/O pins and five timers for versatile peripheral control. Utilizes RISC architecture for efficient instruction execution. Supports Configurable Logic Cell and Numerically Controlled Oscillator for advanced applications.

Designed for operating temperatures from -40°C to 85°C. Compliant with RoHS standards ensuring environmental safety. Consider exploring other Microchip Microcontroller models within our extensive catalog at EnvMart for your embedded system design needs.
