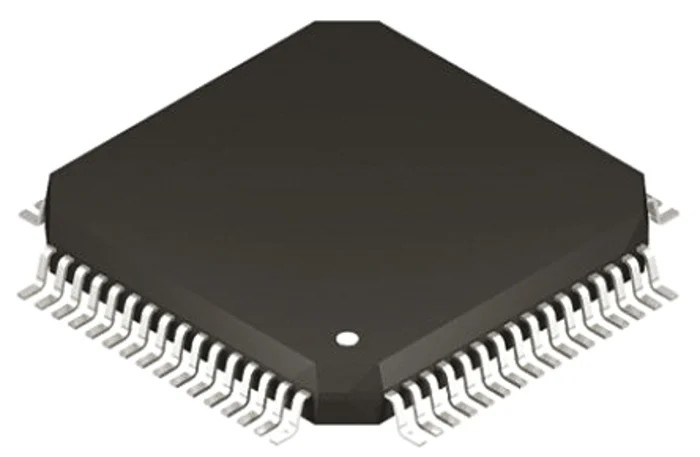

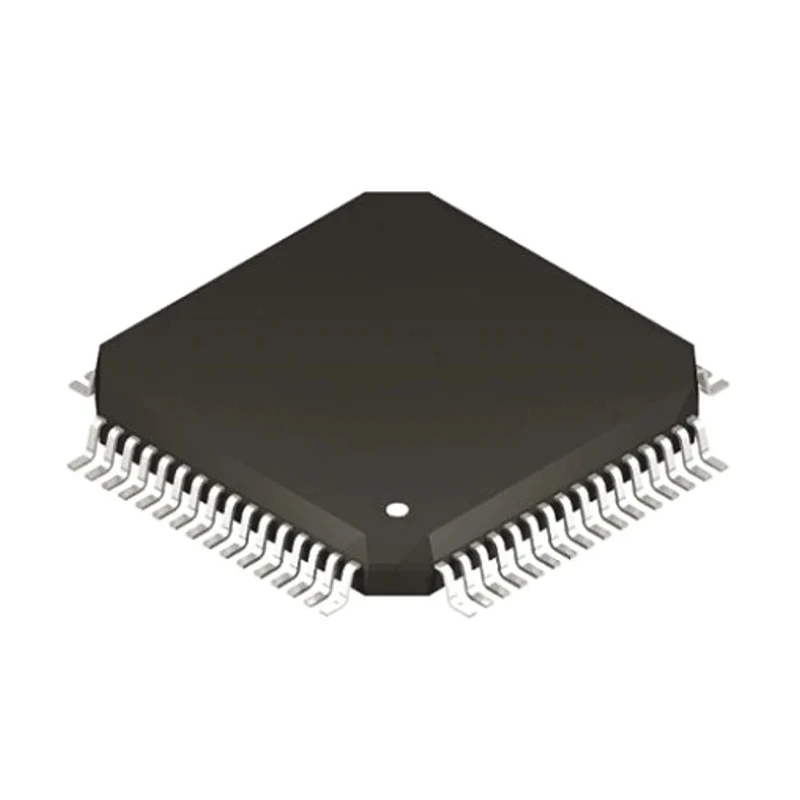

Microchip 16 bit PIC PIC24EP Microcontroller 140 MHz 586kB FLASH 64-Pin TQFP PIC24EP512GP806-I/PT

Microchip PIC24EP512GP806-I/PT is a 16 bit PIC microcontroller designed for advanced embedded systems requiring high speed and memory capacity. Operating at a maximum frequency of 140 MHz, this device comes with 586kB of non-volatile FLASH program memory and 52kB of RAM, enabling complex applications and large code bases.

The microcontroller features a compact 64-pin Thin Quad Flat Package (TQFP) with surface mount technology, measuring 10 mm by 10 mm with a height of 1.05 mm. It supports a wide operating voltage range from 3V to 3.6V, ensuring compatibility with various power supply designs.

This model includes multiple integrated peripherals such as 24 analog-to-digital converters (ADCs) with 10 and 12 bit resolution, one 4-bit digital-to-analog converter (DAC), three analogue comparators, and nine timers. These features enable diverse sensing, control, and timing functionality within applications.

Operating temperature spans from -40°C to 85°C, making it suitable for industrial and automotive environments. It complies with the automotive AEC-Q100 standard ensuring robustness for automotive system integration.

Utilizing Harvard architecture, this microcontroller efficiently separates instructions and data paths for optimized processing performance in embedded applications such as automotive control systems, industrial automation, consumer electronics, and communication devices.

This microcontroller uses a 16 bit data bus architecture for efficient processing. It supports a maximum clock frequency of 140 MHz suitable for high-performance embedded applications. The device includes 586kB of program FLASH memory for robust code storage.

It is equipped with 52kB RAM and 24 ADC channels with 10/12 bit resolution for analog input processing. The package type is TQFP with 64 pins and surface mount design for easy PCB integration. The microcontroller supports a minimum operating voltage of 3 V and maximum supply voltage of 3.6 V.

It has 1 DAC channel with 4 bit resolution, 3 analogue comparators, and 9 timer modules for versatile peripheral use. Operating temperature ranges from -40°C to 85°C for industrial grade reliability. The instruction set architecture is Harvard and it complies with automotive AEC-Q100 standards.

Package dimensions are 10 mm length, 10 mm width, and 1.05 mm height.

This microcontroller is ideal for applications in industrial control, automotive electronics, communication equipment, and other embedded systems requiring reliability and high performance. Its compact form factor and rich peripheral set streamline integration and enhance design flexibility.
