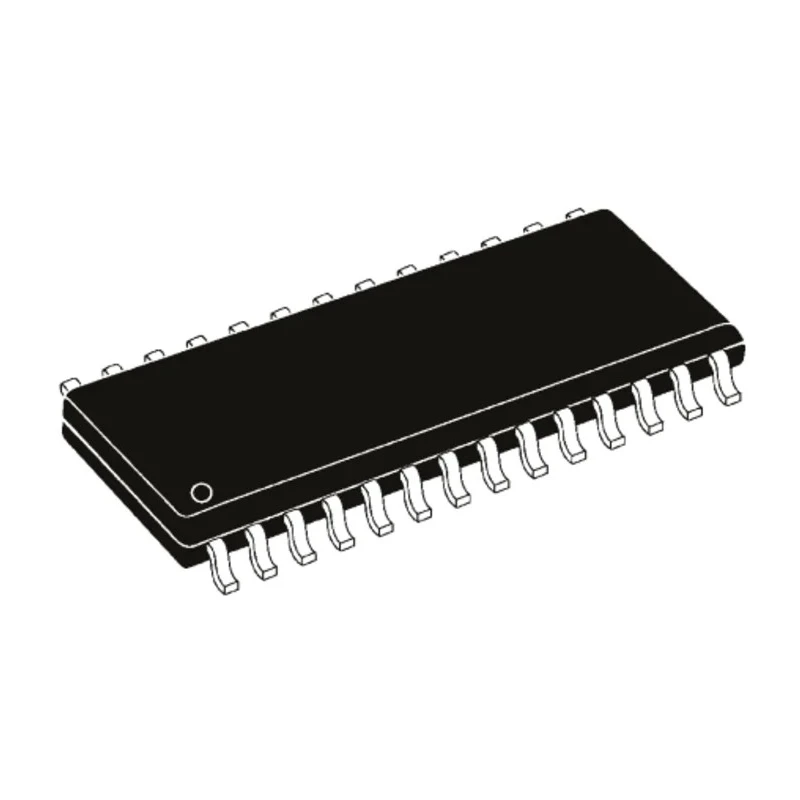

Microchip 8-Bit PIC18F Microcontroller, 40 MHz, 49.152 kB FLASH, 28-Pin SOIC PIC18LF2515-I/SO

Microchip PIC18LF2515-I/SO is an 8-bit PIC18F microcontroller designed for advanced embedded applications requiring moderate processing power up to 40 MHz with 49.152 kB of FLASH program memory. This 28-pin SOIC (Small Outline Integrated Circuit) device operates with a RISC instruction set and provides a robust core with 75 unique instructions supported by a 31-level hardware stack.

Featuring a total of 25 programmable input/output pins, the device facilitates flexible interfacing with external components and sensors. Its 10-channel 10-bit Analog-to-Digital Converter (ADC) allows it to process analog signals efficiently, making it suitable for instrumentation and sensor-based designs. The integrated 3.97 kB RAM provides sufficient data memory for control and computation tasks.

This device supports multiple timer configurations, including one 8-bit timer and three 16-bit timers, providing accurate timing solutions and PWM functionalities essential for industrial control and automation. Its suite of communication peripherals includes Master Synchronous Serial Port (MSSP) supporting SPI and I2C, along with an Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART), enabling serial communication capabilities.

The PIC18LF2515-I/SO ensures power efficiency utilizing Microchip's nanoWatt technology, including power-on reset, brown-out reset, and watchdog timer support to maintain stability in demanding environments. Operating voltage ranges from 2 V to 5.5 V, with a power dissipation rating of 1 W, suitable for a variety of power-sensitive embedded applications.

The microcontroller package measures 17.9 mm in length, 7.5 mm in width, and 2.35 mm in height, optimized for surface mount technology in compact PCB layouts. It operates reliably between -40°C to 85°C, making it ideal for automotive, industrial, and commercial environments. The device complies with RoHS environmental standards.

Common industrial and laboratory applications include embedded system control, sensor interfacing, actuator driving, and communication protocol management in automation, instrumentation, HVAC systems, and automotive embedded solutions.

For engineers designing with Microchip PIC18F microcontrollers, the PIC18LF2515-I/SO offers an excellent balance between performance, peripheral integration, and power efficiency. Operates with an 8-bit PIC device core and RISC architecture.

Features 25 programmable input/output pins with 28-pin SOIC surface mount package. Includes 3.97 kB RAM and 10 channels of 10-bit ADC for analog signal processing. Operates between 2 V minimum and 5.5 V maximum supply voltage with 1 W power dissipation.

Operates reliably within temperature range of -40°C to 85°C suitable for industrial applications. Includes multiple timers: one 8-bit and three 16-bit timers for precise control functions. Supports advanced peripherals such as MCCP modules, EUSART, SPI, I2C, and onboard oscillator.

Complies with RoHS standards ensuring environmental safety. Package dimensions approximately 17.9 mm length, 7.5 mm width, and 2.35 mm height. Explore the comprehensive range of Microchip Microcontrollers available on EnvMart for your embedded design needs.
