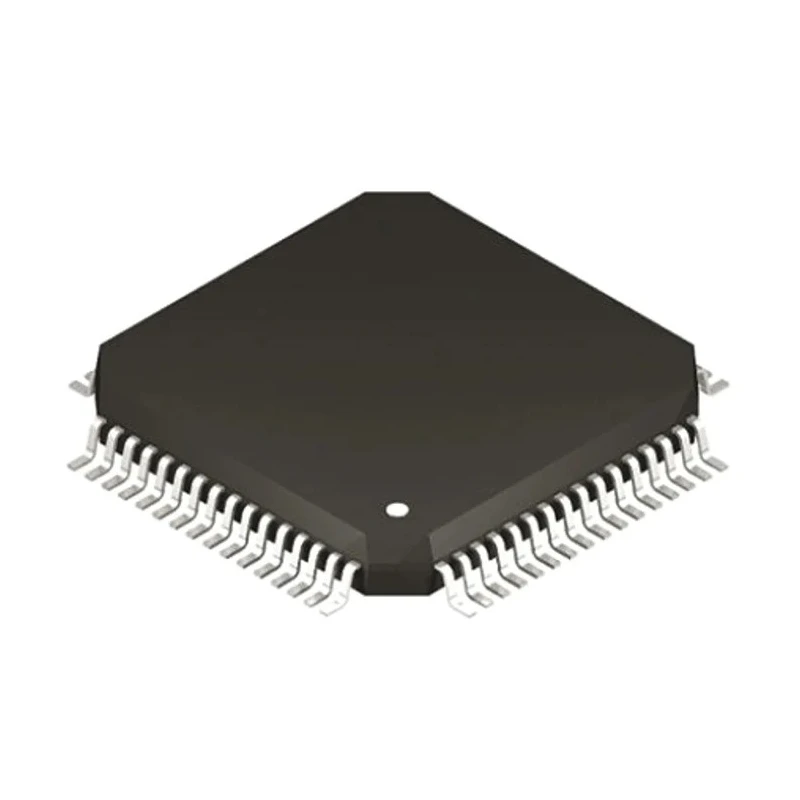

Microchip 16-Bit dsPIC33EP Microcontroller DSPIC33EP256MC506-I/PT, 70 MHz, 256kB FLASH, 32kB RAM, 64-Pin TQFP

Microchip DSPIC33EP256MC506-I/PT is a high-performance 16-bit dsPIC microcontroller featuring a maximum clock frequency of 70 MHz. Designed to deliver up to 70 MIPS performance, this microcontroller integrates 256kB of FLASH program memory and 32kB of RAM, enclosed in a compact 64-pin TQFP surface mount package measuring 12 mm by 12 mm and 1.05 mm in height.

This device is built upon the dsPIC33E core architecture offering code-efficient instruction set suitable for demanding digital signal controller applications in industrial, automotive, and consumer domains. The component supports a broad operating voltage range from 3 V to 3.6 V and is qualified to the automotive AEC-Q100 standard, enhancing its reliability under harsh environments.

Equipped with multiple timers including five 16-bit and two 32-bit timers, it supports 16 channels of 10/12-bit ADC, a 4-bit DAC, and 4 analog comparators. The device also includes communication peripherals such as two UARTs, two SPI modules, two I2C modules, and an ECAN module for versatile connectivity options.

Additional features include power-on reset (POR), power-up timer (PWRT), oscillator start-up timer (OST), brown-out reset (BOR), watchdog timer (WDT), and high/low voltage detection (HLVD) modules to enhance system robustness.

The microcontroller supports in-circuit serial programming (ICSP) and in-circuit debug (ICD) for efficient development cycles. Programmable cyclic redundancy check (CRC), peripheral pin select (PPS), and peripheral trigger generator (PTG) capabilities allow advanced customization and peripheral management.

Ideal for applications requiring efficient digital signal processing at high speed in compact form factors, such as automotive controls, industrial automation, motor control, and embedded systems with critical timing requirements.

Country of origin: Thailand. High-performance 70 MHz CPU suitable for embedded applications. 256kB FLASH and 32kB RAM provide ample program and data storage. 16-bit data bus width for efficient digital signal processing.

Includes various on-board peripherals such as ADC, DAC, timers, and comparators. Wide operating voltage range from 3.0 V to 3.6 V enhances power flexibility. Supports automotive AEC-Q100 standard ensuring reliability in automotive applications.

Operating temperature range from -40°C to 85°C for industrial grade deployments. Small 12 mm × 12 mm x 1.05 mm TQFP package with 64 pins for compact PCB layouts. Features interfaces like QEI, ICSP, ICD, UART, SPI, I2C, and ECAN modules.

Programmable cyclic redundancy check (CRC) and peripheral pin select (PPS) increase system robustness. Explore more Microcontrollers and digital signal processors on EnvMart to find components perfectly suited for your embedded design projects.
