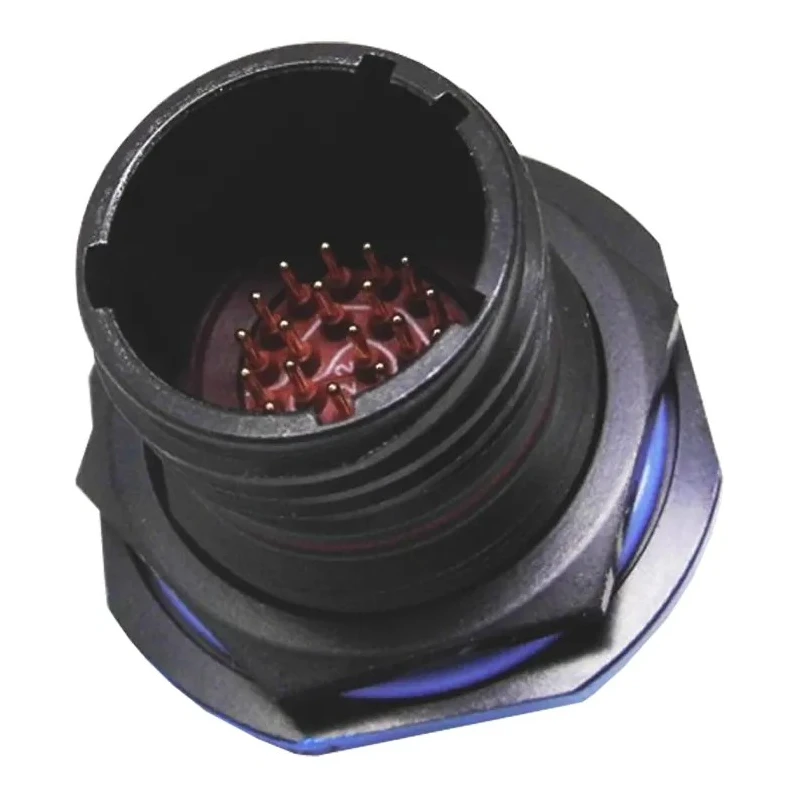

Amphenol Limited MIL Spec Circular Connector TV07ZN-11-98PN Black Zinc Nickel 6 Way Panel Mount 7.5A 600, 850V ac Straight
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600, 850V ac |
| Brand | Amphenol Limited |
| Colour | Black |
| Orientation | Straight |
| Current | 7.5A |
| Model | TV07ZN-11-98PN |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | TV |
| Termination Type | Solder |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 11 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Connector Size | Standard |
| Shell Plating | Black Zinc Nickel |
Key Features
- This MIL-DTL-38999 Series III connector provides excellent corrosion resistance and RoHS compliance.
- The connector features a black zinc nickel shell plating with gold plated copper alloy contacts.
- It supports screw coupling mating type with solder termination for reliable connections.
- Operating temperature ranges from -65°C to 175°C, suitable for harsh environments.
- The panel mount shell size is 11 with 6 male contacts ensuring secure panel integration.
- Provides 500 hours of salt spray endurance and up to 500 mating cycles for longevity.
- Strain relief is included to protect cables during installation and operation.
- Ideal for military, aerospace, communication, and industrial applications requiring robust connectors.
Product Description
Amphenol Limited TV07ZN-11-98PN is a high-performance MIL Spec Circular Connector designed to meet demanding military and commercial requirements. This 6 way straight panel mount connector is crafted with a lightweight aluminium housing and copper alloy contacts plated with gold, ensuring excellent electrical conductivity and corrosion resistance.
The connector complies with the MIL-DTL-38999 Series III specification and features a black zinc nickel shell plating which provides superior salt spray resistance of up to 500 hours, significantly improving longevity in harsh environments. It maintains shell-to-shell continuity of less than 2.5 milliohms and endures up to 500 mating cycles, making it reliable for repeated use.
Rated for 7.5A current and voltage of 600 to 850V AC, this connector operates efficiently across a wide temperature range from -65°C to +175°C. Its screw coupling mating style combined with solder termination enables secure mechanical and electrical connection, suitable for military aircraft, defense equipment, submarines, and robust industrial communication systems.
The TV series connector incorporates strain relief to protect cable integrity and panel mount configuration facilitates stable mounting on equipment panels. The shell size 11 and six male contacts cater to applications requiring compact yet reliable connectors.
Durable black zinc nickel plating approved for 500 hours salt spray endurance. Lightweight aluminium housing with gold plated copper alloy contacts. Compliant with MIL-DTL-38999 Series III Class Z specification. Screw coupling mating type with solder termination for secure connection.
Operating temperature range from -65°C to 175°C. Supports up to 500 mating cycles ensuring long service life. Panel mount design with shell size 11 and 6 male contacts. Suitable for military, aerospace, communication, and harsh industrial environments.
Explore the Mil Spec Circular Connectors category at EnvMart for high-reliability industrial and defense-grade connectors from reputed brands like Amphenol Limited.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for voltages of 600 to 850V AC.
The current rating for this model is 7.5A.
It operates efficiently within a temperature range of -65°C to +175°C.
This connector features 6 male contacts.
It utilizes a solder termination type for secure connections.
The shell size of this connector is 11.
The housing is made of aluminium, and the contacts are copper alloy with gold plating.
It features a screw coupling mating type for secure connections.
The connector provides a salt spray endurance of up to 500 hours.
It complies with the MIL-DTL-38999 Series III specification.
This connector is suitable for military, aerospace, communication, and industrial applications.
Yes, it incorporates strain relief to protect cable integrity during installation and operation.
