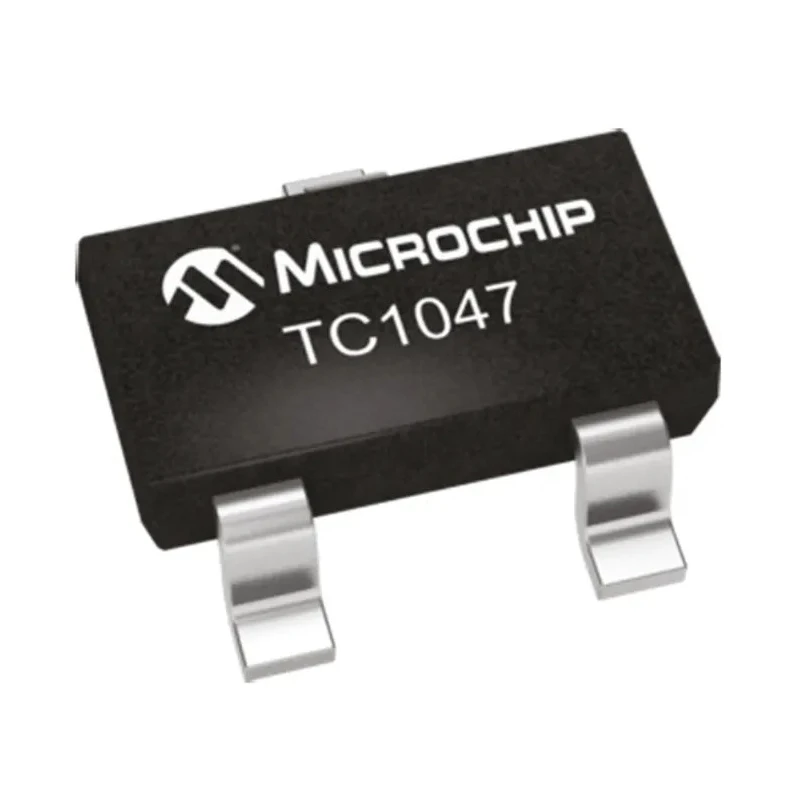

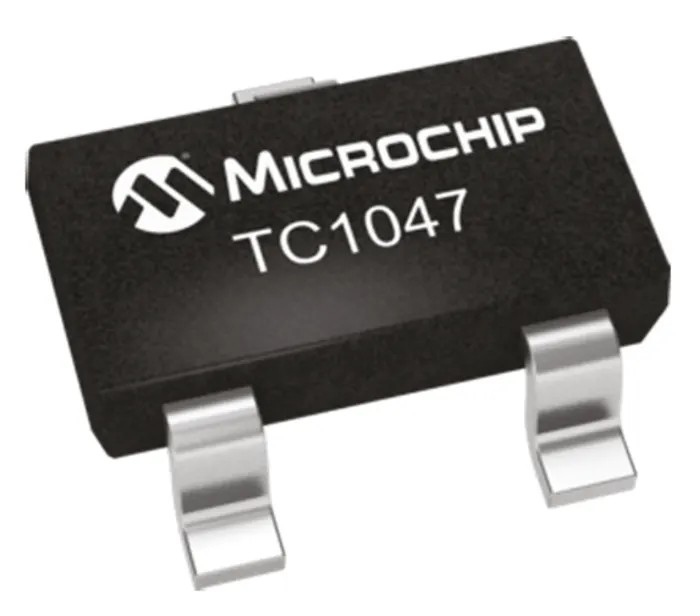

Microchip TC1047 Series Voltage Output Temperature Sensor Analogue Surface Mount ±2°C Accuracy 3-Pin SOT-23 TC1047
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.04mm |
| Model | TC1047 |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | TC1047 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 4.4V |
| Minimum Supply Voltage | 2.7V |
| Sensor Gain | 10mV/°C |
Key Features
- Operates within a supply voltage range of 2.7 to 4.4 volts.
- Measures temperatures from -40°C to +125°C reliably.
- Provides a temperature-proportional output voltage with sensor gain of 10mV/°C.
- Compact SOT-23 package with dimensions 3.04mm length, 1.4mm width, and 1.02mm height.
- Ideal for mobile devices, temperature regulation, and temperature-controlled fans.
- 3-pin configuration simplifies integration into electronic circuits.
- Does not conform to automotive standards but suitable for general electronic temperature sensing.
- Ensures stable performance over broad environmental conditions.
Product Description
Microchip TC1047 Series voltage output temperature sensor TC1047 is a compact and precise analogue sensor designed to measure temperatures between -40°C and 125°C. It features an output voltage that varies linearly with temperature at a sensor gain of 10mV/°C, making it well suited for a wide range of electronic applications requiring accurate temperature monitoring.
Encapsulated in a space-saving 3-pin SOT-23 surface mount package measuring 3.04mm x 1.4mm x 1.02mm, this sensor offers excellent mechanical compatibility for modern PCB layouts. It operates on a low supply voltage range of 2.7V to 4.4V, perfect for battery-powered and low voltage devices.
The ±2°C accuracy specification ensures reliable temperature readings for industrial, consumer electronics, and HVAC control applications. Key use cases include mobile phones, temperature regulation systems, temperature-controlled fans, and other temperature measurement circuits requiring analogue output.
Features of the TC1047 include low power consumption, stable analogue voltage output proportional to temperature, and wide operating temperature range. Although it does not meet automotive standards, it suits general-purpose temperature sensing in electronics and embedded systems.
Accurate temperature sensing with ±2°C accuracy across the operating range. Low voltage operation from 2.7V to 4.4V for efficient power use. Compact and surface-mountable SOT-23 package for space saving. Analogue voltage output simplifies integration with microcontrollers and ADCs.
Durable over -40°C to 125°C ambient conditions. 3-pin design for straightforward PCB layout. Sensor gain at 10mV per °C for direct voltage to temperature conversion. Ideal for consumer electronics, industrial sensors, and HVAC controls.
Microchip's TC1047 temperature sensor delivers precise, dependable temperature measurement in a compact form factor, enabling high-performance temperature sensing solutions for electronics manufacturers and designers. Explore more Microchip products and Temperature Sensor options on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TC1047 temperature sensor operates within a temperature range of -40°C to +125°C.
This model has an accuracy of ±2°C, ensuring reliable temperature readings.
It operates within a supply voltage range of 2.7V to 4.4V.
The TC1047 provides a voltage output that varies linearly with temperature, with a sensor gain of 10mV/°C.
The sensor is encapsulated in a SOT-23 package with dimensions of 3.04mm length, 1.4mm width, and 1.02mm height.
This model features a 3-pin configuration, simplifying integration into electronic circuits.
It is suitable for applications such as mobile devices, temperature regulation systems, and temperature-controlled fans.
The TC1047 does not conform to automotive standards but is suitable for general electronic temperature sensing.
The TC1047 is packaged in a surface mount SOT-23 type.
The sensor gain of the TC1047 is 10mV per °C, allowing for direct voltage to temperature conversion.
The TC1047 temperature sensor is manufactured in India.
It uses an analogue interface type for output.
