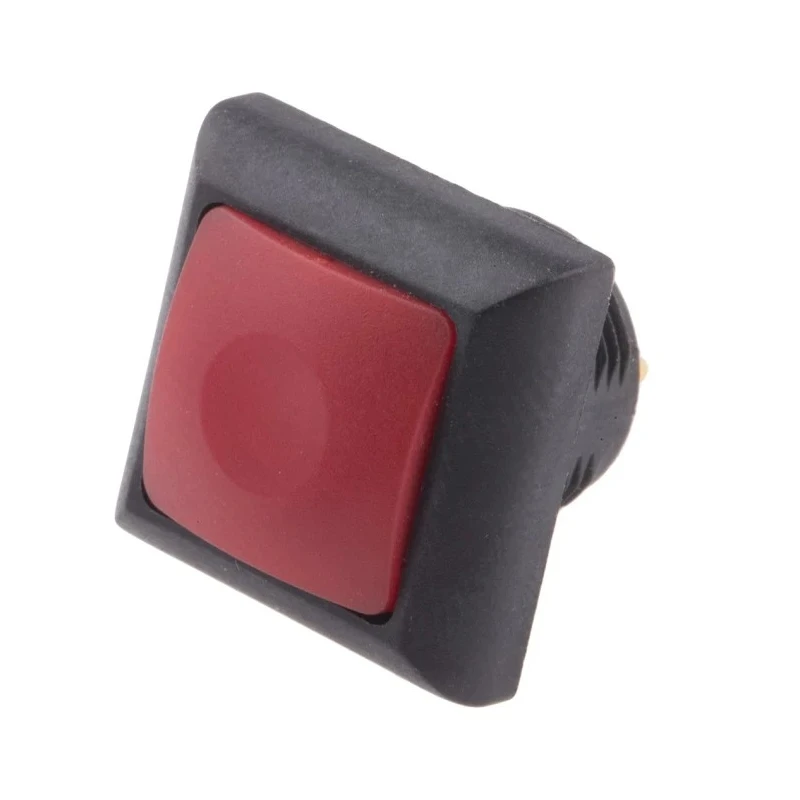

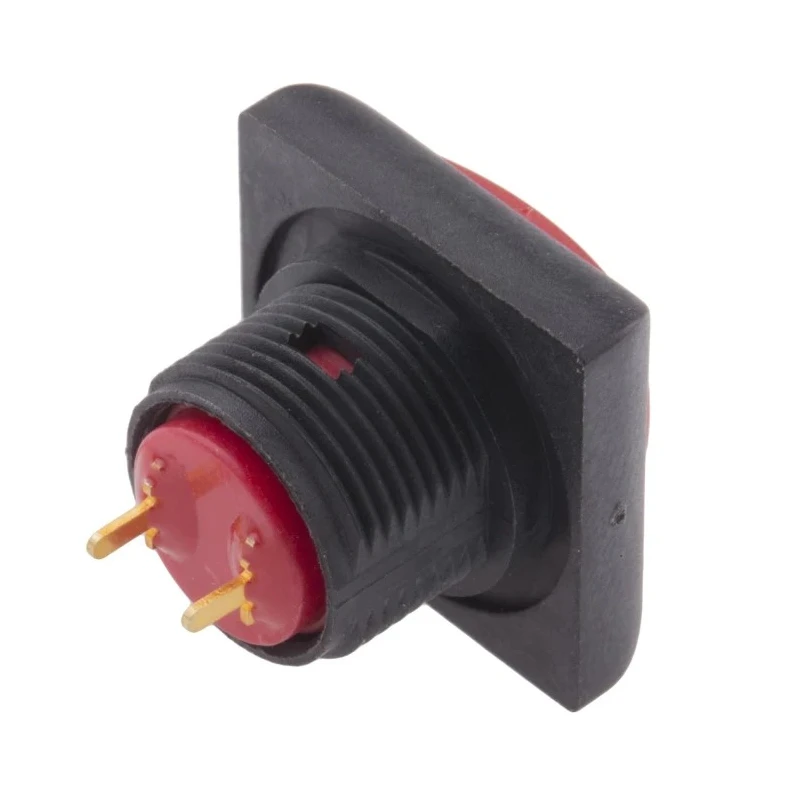

RS PRO Momentary Push Button Switch PCB Mount, Red LED, 13.6 mm Cutout, SPST, IP67, 50 V dc 32 V ac 820-7568
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 820-7568 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Panel Cutout Size | 13.6 mm |
| Terminal type | PCB Pin |
| Standards/Approvals | RoHS, Lead-Free |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Red |
| Contact DC Voltage | 50V dc |
| Actuator Style | Cap |
| Switch Contact Current | 400mA |
| Operating Force | 2N - 5N |
| Mechanical Life | 1000000 cycles |
| Contact AC Voltage | 32V ac |
| Contact Bounce | 10 ms |
| Soldering | 350°C maximum for 5 seconds |
Key Features
- Designed for PCB mounting with a 13.6 mm panel cutout size.
- Features a red LED for clear indicator status.
- IP67 rating ensures dust tightness and water resistance.
- Operates at 50 V dc and 32 V ac with a contact current of 400 mA.
- Cap actuator style offers easy momentary push operation.
- Mechanical life rated for 1,000,000 cycles.
- Operating force range between 2N and 5N for consistent tactile feedback.
- Contact bounce time is 10 ms, ensuring reliable switching.
Product Description
RS PRO 820-7568 is a high-quality momentary push button switch designed for PCB mounting applications. This switch features a red colored cap actuator and includes an integrated red LED for operational indication. Its SPST contact configuration allows single-pole single-throw switching, suitable for various electronic control circuits.
The panel cutout dimension is 13.6 mm, fitting standard panel mounting requirements.
Engineered with an IP67 ingress protection rating, the switch guarantees resistance to dust ingress and water immersion, making it suitable for demanding industrial and automation environments.
This device operates reliably at contact voltages up to 50 V dc and 32 V ac, rated for a contact current of 400 mA.
The cap actuator style provides comfortable and precise momentary operation with an operating force between 2N and 5N and minimal contact bounce of 10 ms, ensuring stable electrical switching performance.
The switch is designed for a mechanical life of 1,000,000 cycles, withstanding rigorous usage scenarios. With a maximum operating temperature of 85°C and soldering capability up to 350°C for 5 seconds, it fits well in manufacturing and assembly processes.
This RS PRO push button switch is ideal for electrical and automation applications requiring robust, compact, and reliable momentary switches. Designed for PCB mounting with a 13.6 mm panel cutout size. Features a red LED for clear indicator status.
IP67 rating ensures dust tightness and water resistance. Operates at 50 V dc and 32 V ac with a contact current of 400 mA. Cap actuator style offers easy momentary push operation. Mechanical life rated for 1,000,000 cycles.
Operating force range between 2N and 5N for consistent tactile feedback. Contact bounce time is 10 ms, ensuring reliable switching. Maximum operating temperature of 85°C for robust performance. Soldering resistance up to 350°C maximum for 5 seconds.
Explore RS PRO Push Button Switches at EnvMart for industrial automation and electronic control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 85°C.
This switch requires a panel cutout size of 13.6 mm for proper installation.
The contact current rating for this model is 400 mA.
It uses a single-pole single-throw (SPST) switch configuration.
The switch has an IP67 rating, ensuring it is dust tight and resistant to water immersion.
The mechanical life of this push button switch is rated for 1,000,000 cycles.
The operating force range for this model is between 2N and 5N.
This model features a red LED for clear operational indication.
It operates at a contact voltage of 50 V dc and 32 V ac.
The contact bounce time for this switch is 10 ms, ensuring reliable switching performance.
This push button switch is designed for PCB mounting.
It can withstand soldering temperatures up to 350°C for a maximum of 5 seconds.
