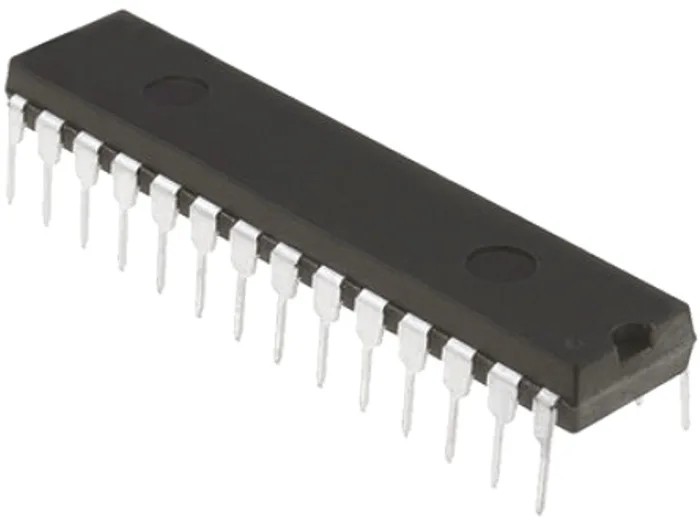

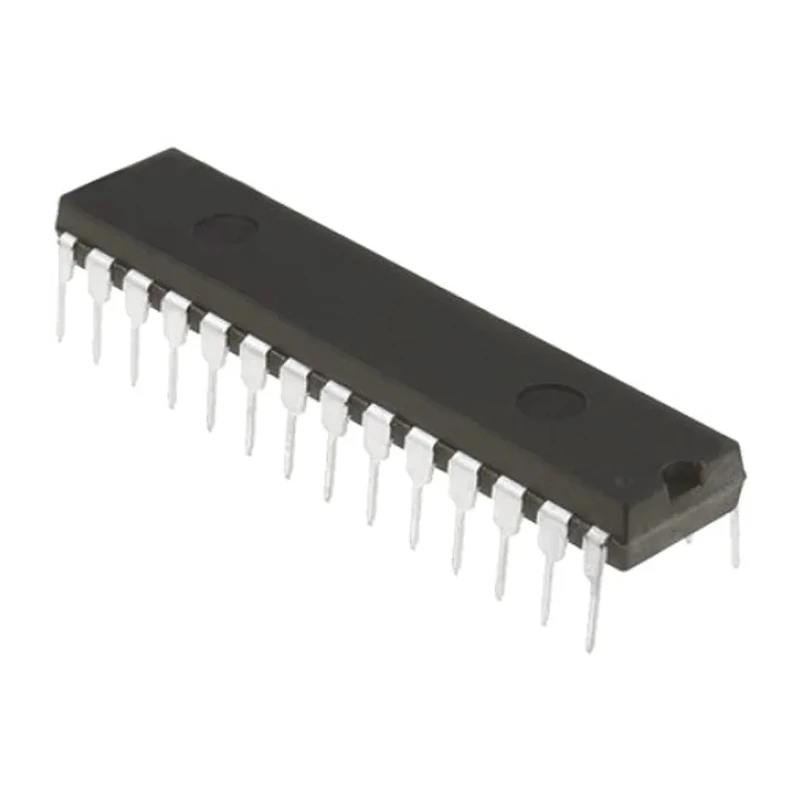

Microchip 8-bit PIC18F Microcontroller 64 MHz 64kB Flash 28-Pin SPDIP PIC18F26K80-E/SP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 35.56mm |
| Model | PIC18F26K80-E/SP |
| Width | 7.49mm |
| Mount Type | Through Hole |
| Series | PIC18F |
| Maximum Operating Temperature | 125°C |
| Package Type | SPDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 3.65kB |
| Interface Type | SPI |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 64kB |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 8 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
Key Features
- The microcontroller operates at a maximum clock frequency of 64 MHz.
- It has 64kB of FLASH program memory and 3.65kB RAM.
- Includes 25 programmable I/O pins with SPI interface support.
- Features 8 ADC channels (12-bit), 2 analogue comparators, 1 DAC with 5-bit resolution, and 5 timers.
- Supports operating voltage range from 1.8V to a maximum of 5.5V.
- Designed for through-hole mounting in a 28-pin SPDIP package.
- Operating temperature range from -40°C to 125°C ensures broad environmental suitability.
- Power dissipation rating of 800mW allows efficient operation.
Product Description
Microchip PIC18F26K80-E/SP is an 8-bit PIC microcontroller featuring a 64 MHz maximum clock frequency and 64kB FLASH memory, housed in a compact 28-pin SPDIP package ideal for through-hole mounting applications.
This microcontroller offers 3.65kB of RAM and supports a SPI interface, enabling communication with various peripherals. It includes 25 programmable I/O pins, 8 analog-to-digital converters (12-bit), 2 analogue comparators, a single 5-bit DAC, and 5 timers, making it versatile for diverse embedded system designs.
Operating within a voltage range of 1.8V to 5.5V, the device can function reliably in varying power conditions. It supports an operating temperature from -40°C to 125°C, suitable for industrial and automotive ambient conditions.
The PIC18F26K80-E/SP microcontroller employs a RISC instruction set architecture, optimizing efficiency and speed for embedded applications. Its power dissipation of 800mW ensures energy-efficient operation without excessive heat generation.
Compliant with RoHS standards, this component meets environmental safety prerequisites for modern electronics manufacturing. The 28-pin SPDIP form factor is especially suitable for prototyping and development requiring through-hole components.
This microcontroller is ideal for industrial automation, automotive control systems, consumer electronics, and embedded applications requiring reliable and high-performance 8-bit processing.
The microcontroller operates at a maximum clock frequency of 64 MHz. 64kB of FLASH program memory and 3.65kB RAM for complex tasks. Includes SPI interface and 25 programmable I/O pins. Equipped with ADCs, DAC, analogue comparators, and timers for versatile control.
Wide voltage and temperature ranges ensure broad applicability. Compact 28-pin SPDIP package for easy integration in through-hole PCBs. Explore more Microcontrollers and semiconductor products at EnvMart for your embedded design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It features 64kB of FLASH program memory.
This microcontroller supports an operating voltage range from 1.8V to a maximum of 5.5V.
It includes 25 programmable I/O pins.
This model supports a SPI interface for communication with various peripherals.
It has a RAM size of 3.65kB.
The operating temperature range is from -40°C to 125°C.
It is housed in a 28-pin SPDIP package, designed for through-hole mounting.
This model includes 8 analog-to-digital converters (ADCs) with 12-bit resolution.
The maximum power dissipation rating is 800mW.
It includes 2 analogue comparators and 1 DAC with 5-bit resolution.
Yes, it is compliant with RoHS standards, ensuring environmental safety in electronics manufacturing.
