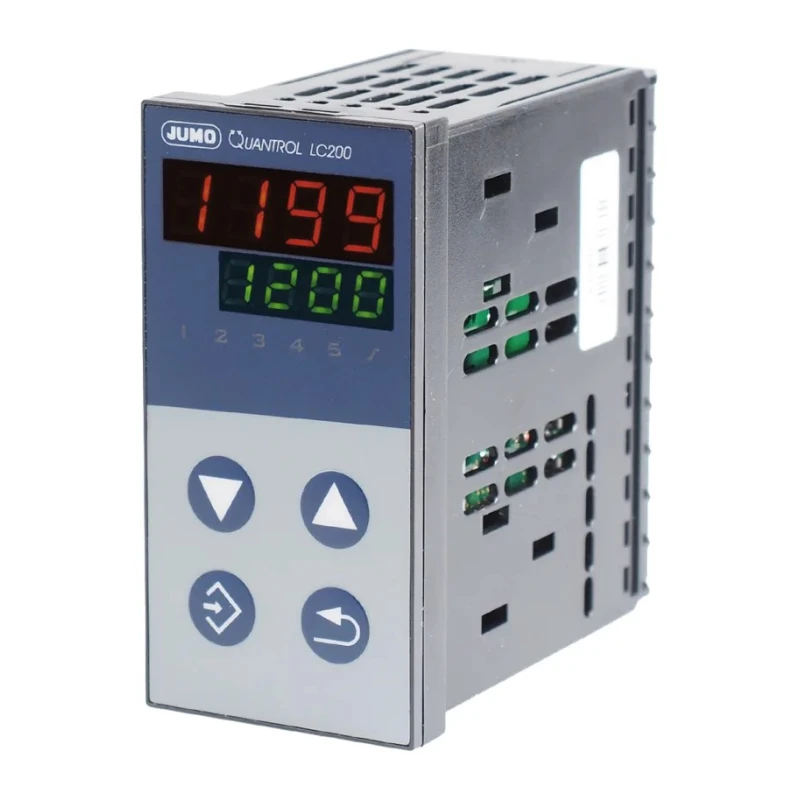

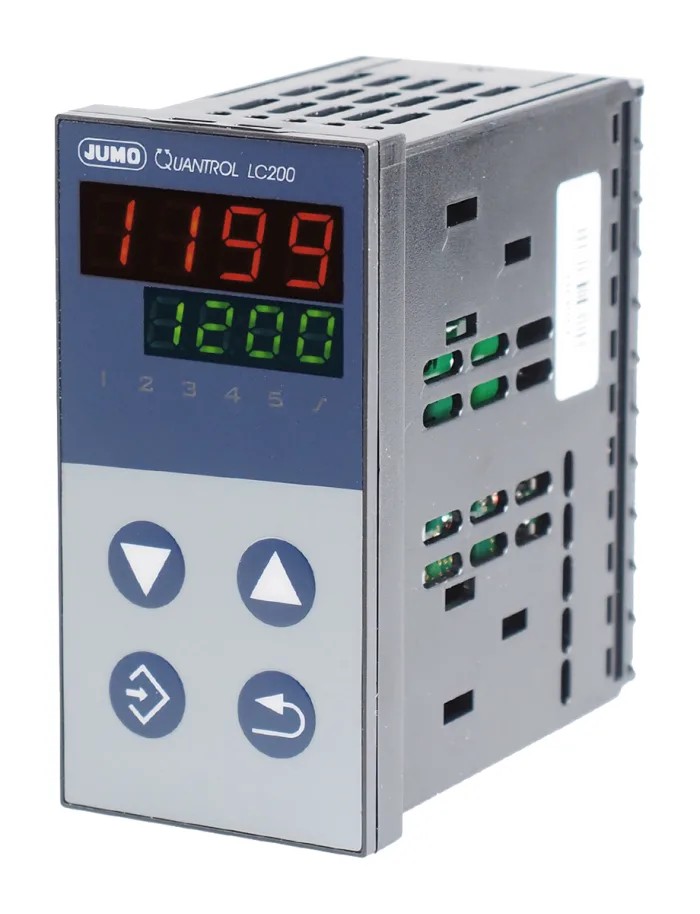

Jumo QUANTROL Panel PID Temperature Controller 1 Input 1 Output Relay 240V 702032/8-0000-23
Specifications
| Country of Origin | Germany |
|---|---|
| Display Type | 7 Segment LED |
| Brand | Jumo |
| Length | 48mm |
| Model | 702032/8-0000-23 |
| IP Rating | IP20, IP65 |
| Mount Type | Panel |
| Number of inputs | 1 |
| Output type | Relay |
| Series | QUANTROL |
| Input Type | Thermocouple |
| Maximum Operating Temperature | 55°C |
| Control Type | PID Controller |
| Minimum Operating Temperature | -5°C |
| Interfaces | USB Mini-B) |
| Maximum Current | 3A |
| Number of outputs | 1 |
| Terminal type | Screw |
| Maximum Voltage | 230V |
| Maximum Supply Voltage | 240V |
| Digital Comms | RS485 |
| Panel Depth | 80mm |
| Firing Mode | Firing curve for pottery kilns |
| 3 formats | 48x48mm, 48x96mm and 96x96mm |
Key Features
- Supports one universal analog input for thermocouples, RTD probes, or current/voltage signals.
- Features one relay output rated for a maximum current of 3A.
- Operates within a temperature range from -5°C to 55°C for reliable environmental performance.
- Equipped with RS485 digital communications and a 7-segment LED display for clear status indication.
- Includes self-optimization (autotuning) for accurate PID control and sensor monitoring.
- Compact panel mount design with available 48x48mm, 48x96mm and 96x96mm formats.
- Firing mode tailored for pottery kiln control, enhancing specialized industrial processes.
- Robust standards compliance with UL, IEC, EN, DIN, and CAN/CSA certifications.
Product Description
Jumo 702032/8-0000-23 QUANTROL Panel PID Temperature Controller is designed for precise temperature regulation in industrial and laboratory machinery, featuring a universal input and a relay output for flexible control applications.
The controller supports thermocouple, RTD temperature probes, and analog signals, making it versatile for multiple sensor types. Its 3-amp relay output allows for reliable switching in industrial control systems.
This model includes advanced PID control with self-optimization (autotuning) for enhanced temperature accuracy, along with sensor monitoring and diagnostics through its RS485 interface following Modbus RTU protocol.
With a user-friendly 7-segment LED display and configurable limit value monitoring alarms, it facilitates precise process control. The compact panel mount formats (48x48mm, 48x96mm, 96x96mm) suit diverse panel installations.
Its firing curve mode specifically benefits pottery kiln temperature control, demonstrating application-specific versatility. Compliance with multiple international standards and IP20/IP65 ingress protection ensures robust industrial use.
Manufactured in Germany, this Jumo temperature controller guarantees quality and reliability for demanding automated process environments including manufacturing, HVAC systems, chemical processing, and water treatment industries.
Supports one universal analog input for thermocouples, RTD probes, or current/voltage signals. Features one relay output rated for a maximum current of 3A. Operates within a temperature range from -5°C to 55°C for reliable environmental performance.
Equipped with RS485 digital communications and a 7-segment LED display for clear status indication. Includes self-optimization (autotuning) for accurate PID control and sensor monitoring. Compact panel mount design with available 48x48mm, 48x96mm and 96x96mm formats.
Firing mode tailored for pottery kiln control, enhancing specialized industrial processes. Robust standards compliance with UL, IEC, EN, DIN, and CAN/CSA certifications. Protected with IP20 and IP65 ratings ensuring suitability for harsh industrial environments.
Manufactured in Germany, ensuring high-quality engineering and durability. Explore Jumo’s range of precision Temperature Controllers and automation solutions at EnvMart for dependable industrial instrumentation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 55°C.
It supports one universal analog input for thermocouples, RTD probes, or current/voltage signals.
The relay output is rated for a maximum current of 3A.
This model is available in three formats: 48x48mm, 48x96mm, and 96x96mm.
It is equipped with RS485 digital communications for connectivity.
The minimum operating temperature is -5°C.

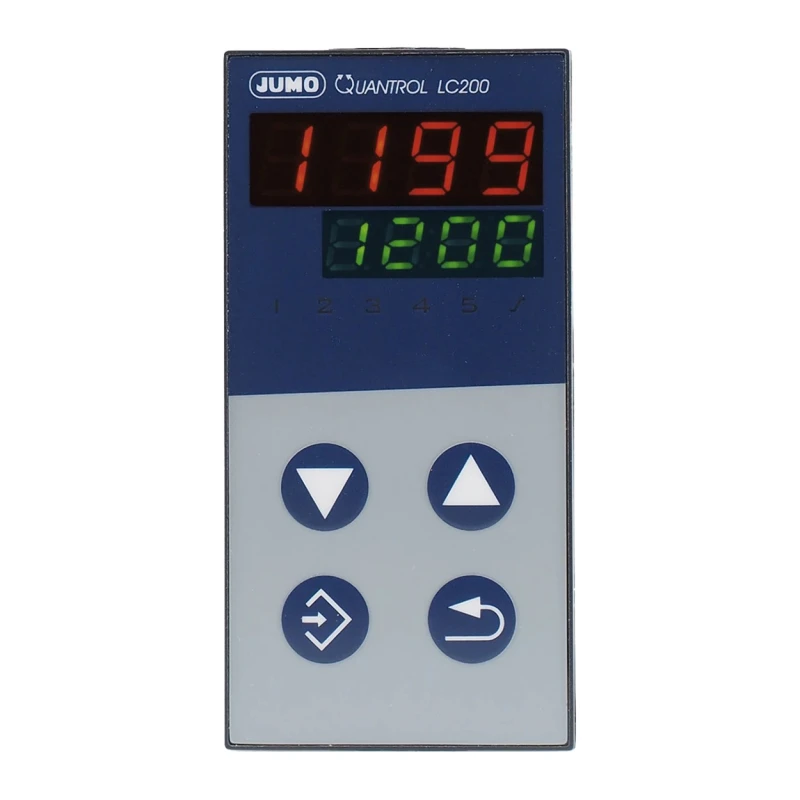

It features a 7-segment LED display for clear status indication.
This model has IP20 and IP65 ingress protection ratings, making it suitable for various industrial environments.
It includes self-optimization (autotuning) for accurate PID control and sensor monitoring.
The maximum supply voltage is 240V.
It has a firing mode tailored for pottery kiln control, enhancing specialized industrial processes.
It is manufactured in Germany, ensuring quality engineering.
