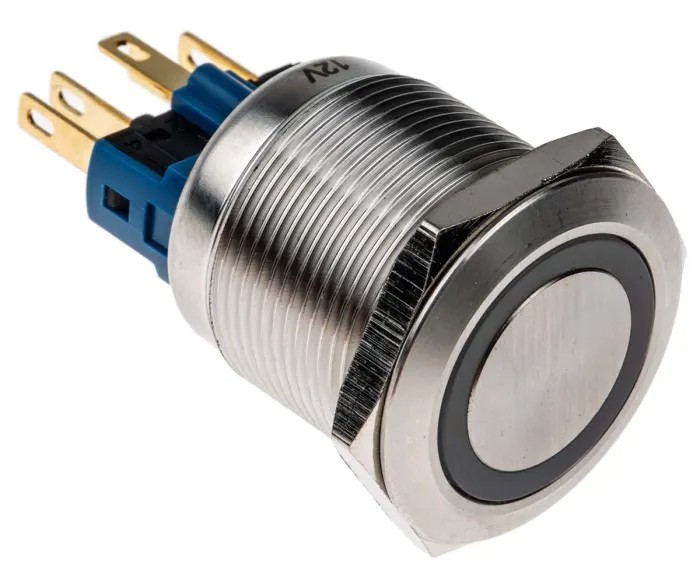

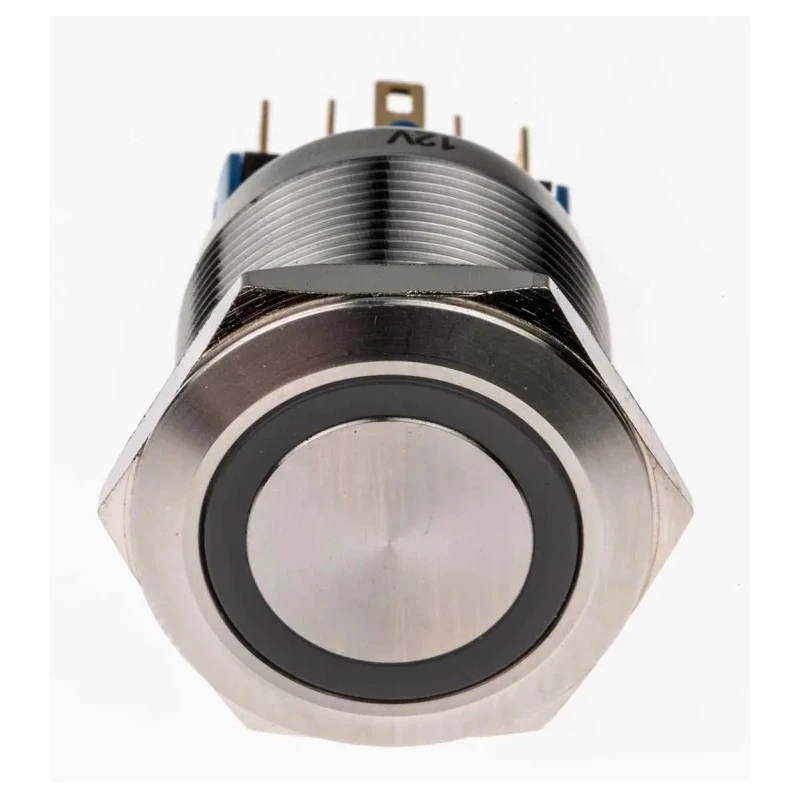

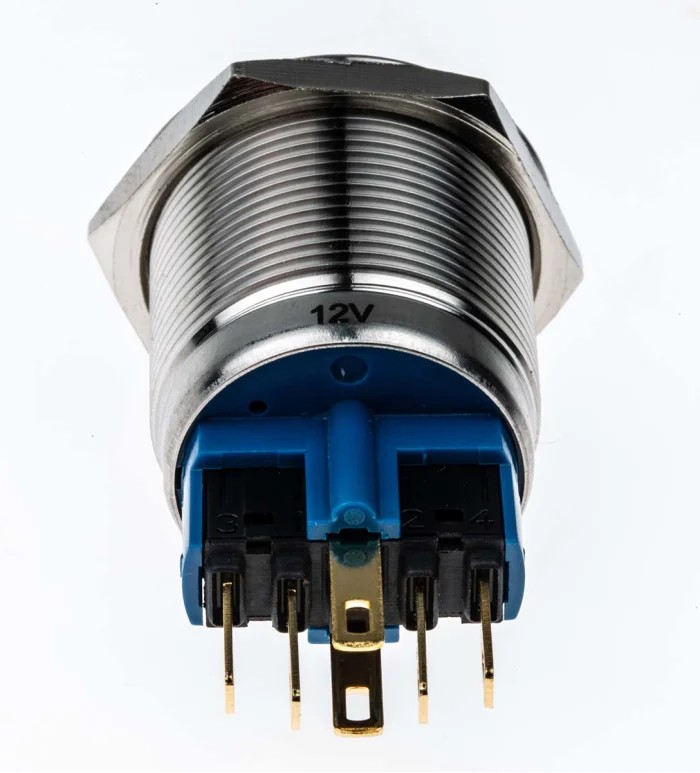

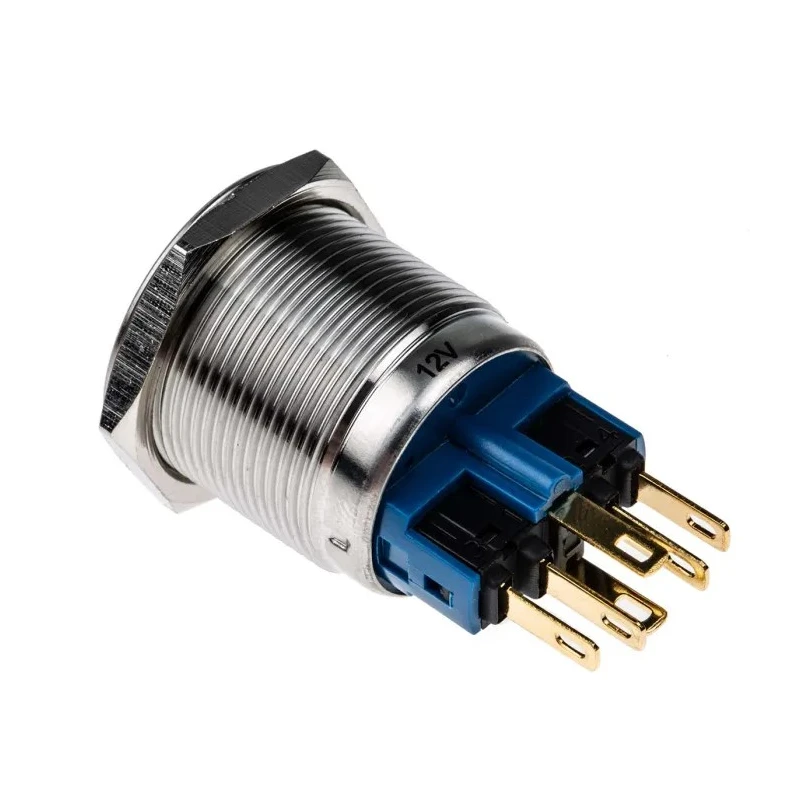

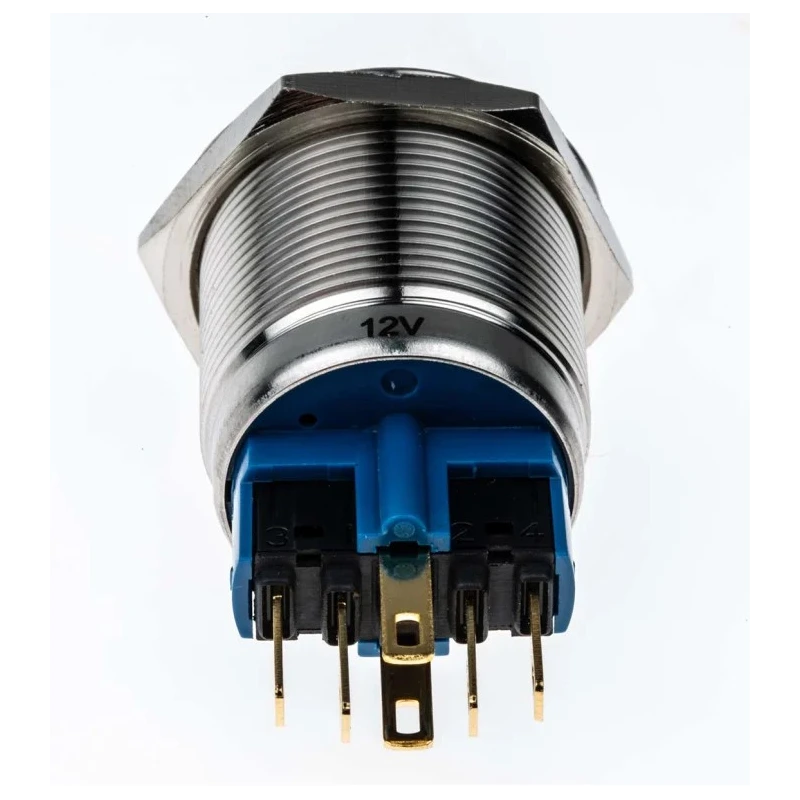

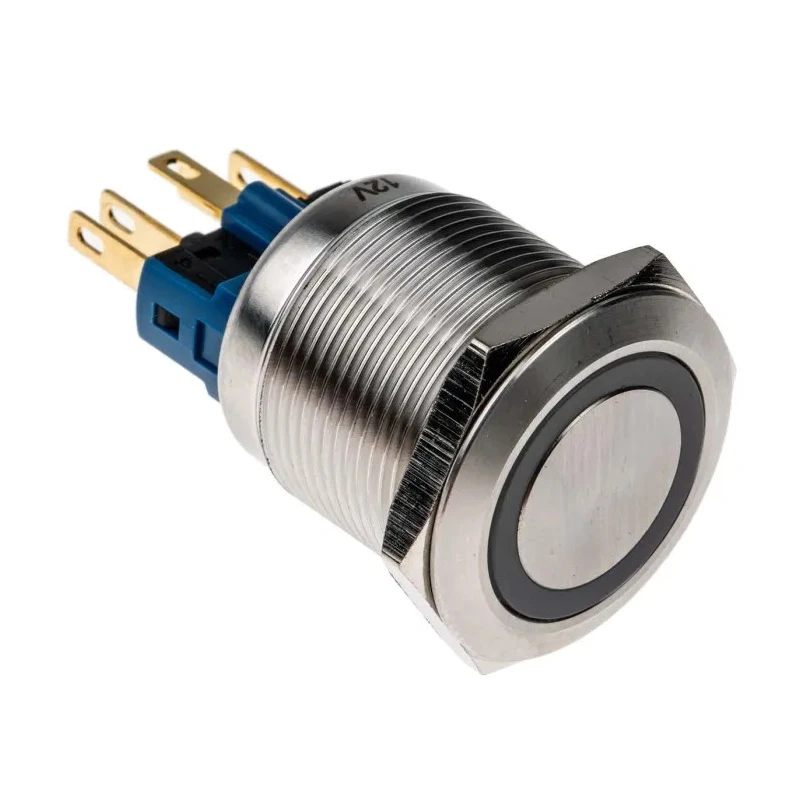

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 22 mm Cutout, SPDT, Blue LED, IP65, IP67, 250 V AC, 5A 811-8483
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 811-8483 |
| IP Rating | IP65, IP67 |
| Mount Type | Panel |
| Contact Configuration | SPDT |
| Switch Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | RoHS |
| LED Colour | Blue |
| Switch Operation | Latching |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Flat |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch features a 22 mm panel cutout for easy mounting.
- It offers a latching operation type with SPDT contact configuration.
- Blue LED illumination enhances visibility.
- Rated for 250 V AC voltage and a contact current of 5A.
- Designed to IP65 and IP67 ingress protection standards for water and dust resistance.
- Constructed with stainless steel actuator and silver-plated contacts for durability.
- Operating temperature range down to -20°C ensures reliable performance in varied environments.
- Quick connect terminal type facilitates fast and secure wiring.
Product Description
RS PRO 811-8483 Illuminated Push Button Switch is a high-quality, latching panel mount switch with a 22 mm cutout size and SPDT contact configuration. It is designed for reliable switching operations in industrial, automation, and electrical control systems, providing clear blue LED illumination for status indication.
Constructed with a robust stainless steel actuator and durable silver-plated copper alloy contacts, this push button switch offers an operating life of 50,000 cycles and an operating force of 4N maximum. It is engineered to withstand physical impacts and environmental exposure with IP65 and IP67 ratings, providing protection against dust ingress and water jets.
The switch operates reliably in temperatures as low as -20°C and supports contact AC and DC voltages up to 250 V, with a contact current rating of 5A. Its quick connect terminals enable fast and secure electrical connections in panel assemblies.
This Push Button Switch is anti-vandal rated, making it suitable for applications such as public kiosks, outdoor control panels, and open dashboards where ruggedness and environmental resistance are critical.
The switch provides a latching operation type for stable switch states. Blue LED illumination offers visual feedback. Mount type: Panel mount with 22 mm cutout. High ingress protection rated IP65 and IP67. Operates at -20°C minimum temperature.
Contact configuration is SPDT (Single Pole Double Throw). Complies with RoHS standards for environmental compliance. Operates at 250 V AC and 5A contact current.
This product is manufactured in Taiwan, Province Of China, and is part of the RS PRO range known for quality and reliability. Ideal for use in electrical panels, industrial automation, and control applications.
Explore more in the Electronics & Electricals category for switches and socket solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The panel cutout size for this model is 22 mm.
It features a Single Pole Double Throw (SPDT) contact configuration.
The maximum contact current rating for this switch is 5A.
It supports contact AC and DC voltages up to 250 V.
This switch is rated IP65 and IP67, providing protection against dust and water.
It uses quick connect terminals for fast and secure wiring.
The minimum operating temperature is -20°C.
This switch has an operating life of 50,000 cycles.
The actuator style is flat, and it is made of stainless steel.
Yes, it is anti-vandal rated, making it suitable for outdoor control panels and public kiosks.
It complies with RoHS standards for environmental compliance.
The LED illumination is blue, enhancing visibility.
